13INSTALLATION
ENGLISH

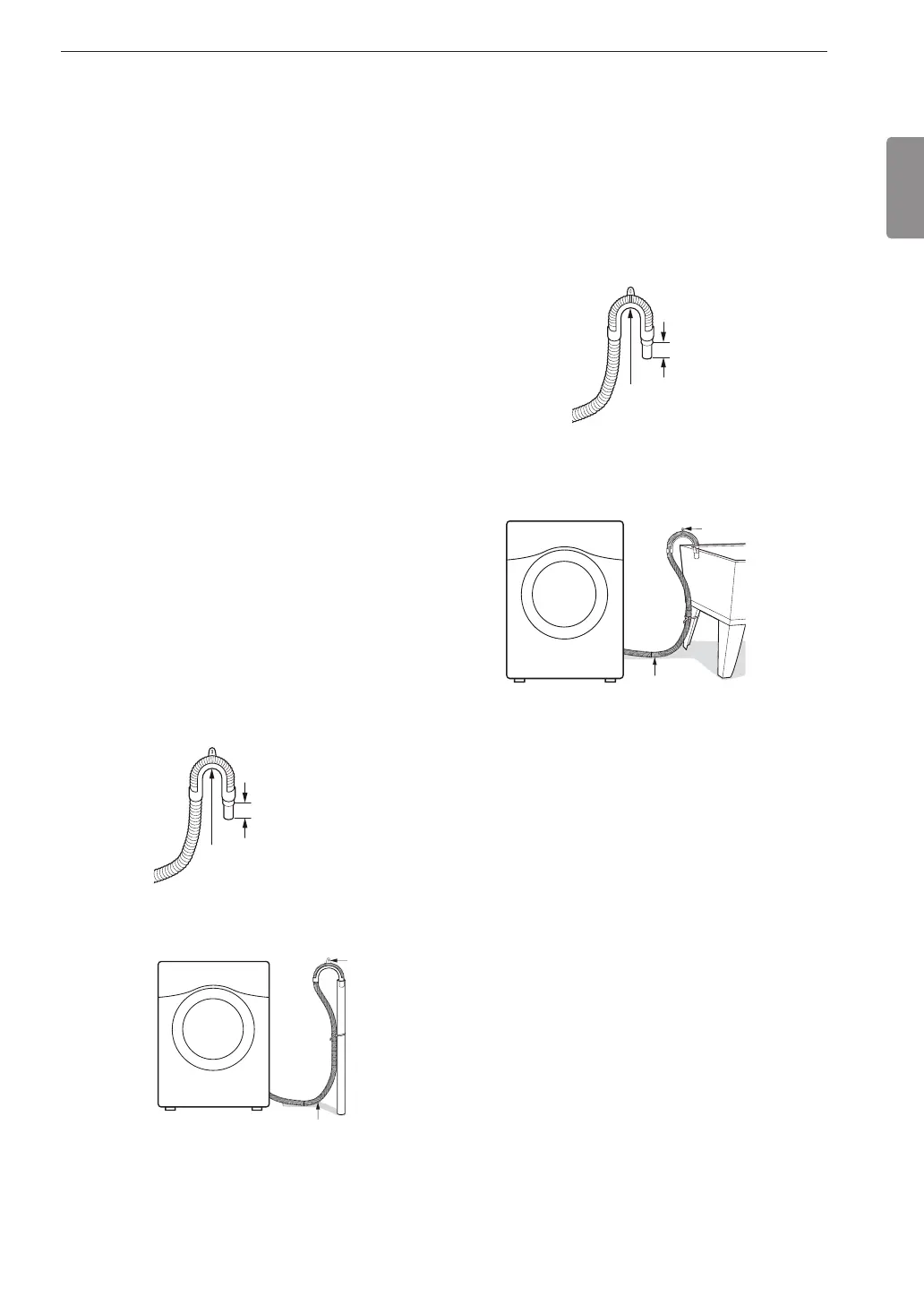

Connecting the Drain Hose
Connect the drain hose to either a standpipe or
laundry tub.
NOTE
• The drain hose should always be properly secured.
Failure to properly secure the drain hose can result
in ooding and property damage.
• The drain must be installed in accordance with any
applicable local codes and regulations.
• Make sure that the drain hose is not stretched,
pinched, crushed, or kinked.
• Do not install the drain hose with the end lower than
29.5 inches (0.7 m) or higher than 96 inches
(2.4 m) above the bottom of the washer or more
than 60 inches (1.5 m) away from the washer.
• Never create an airtight seal between the hose and
the drain with tape or other means. If no air gap
is present, water can be siphoned out of the tub
resulting in poor wash/rinse performance or clothing
damage.
Option 1: Standpipe
1
Clip the end of the hose into the elbow
bracket.
Connect the elbow bracket within 4 inches
(10 cm) of the end of the drain hose. If the drain
hose is extended more than 4 inches (10 cm)
beyond the end of the elbow bracket, mold or
microorganisms could spread to the inside of the
washer.
No more than
4 inches (10 cm)
Elbow bracket
2
Insert the end of the drain hose into the
standpipe.
Drain hose
Elbow bracket
3
Use a tie strap to secure the drain hose in
place.
Option 2: Laundry Tub
1
Clip the end of the hose into the elbow
bracket.
Connect the elbow bracket within 4 inches
(10 cm) of the end of the drain hose. If the drain
hose is extended more than 4 inches (10 cm)
beyond the end of the elbow bracket, mold or
microorganisms could spread to the inside of the
washer.
No more than
4 inches (10 cm)
Elbow bracket
2
Hang the end of the drain hose over the side
of the laundry tub.
Drain hose
Elbow bracket
3
Use a tie strap to secure the drain hose in
place.
