LG WT-32Q82IP User Manual

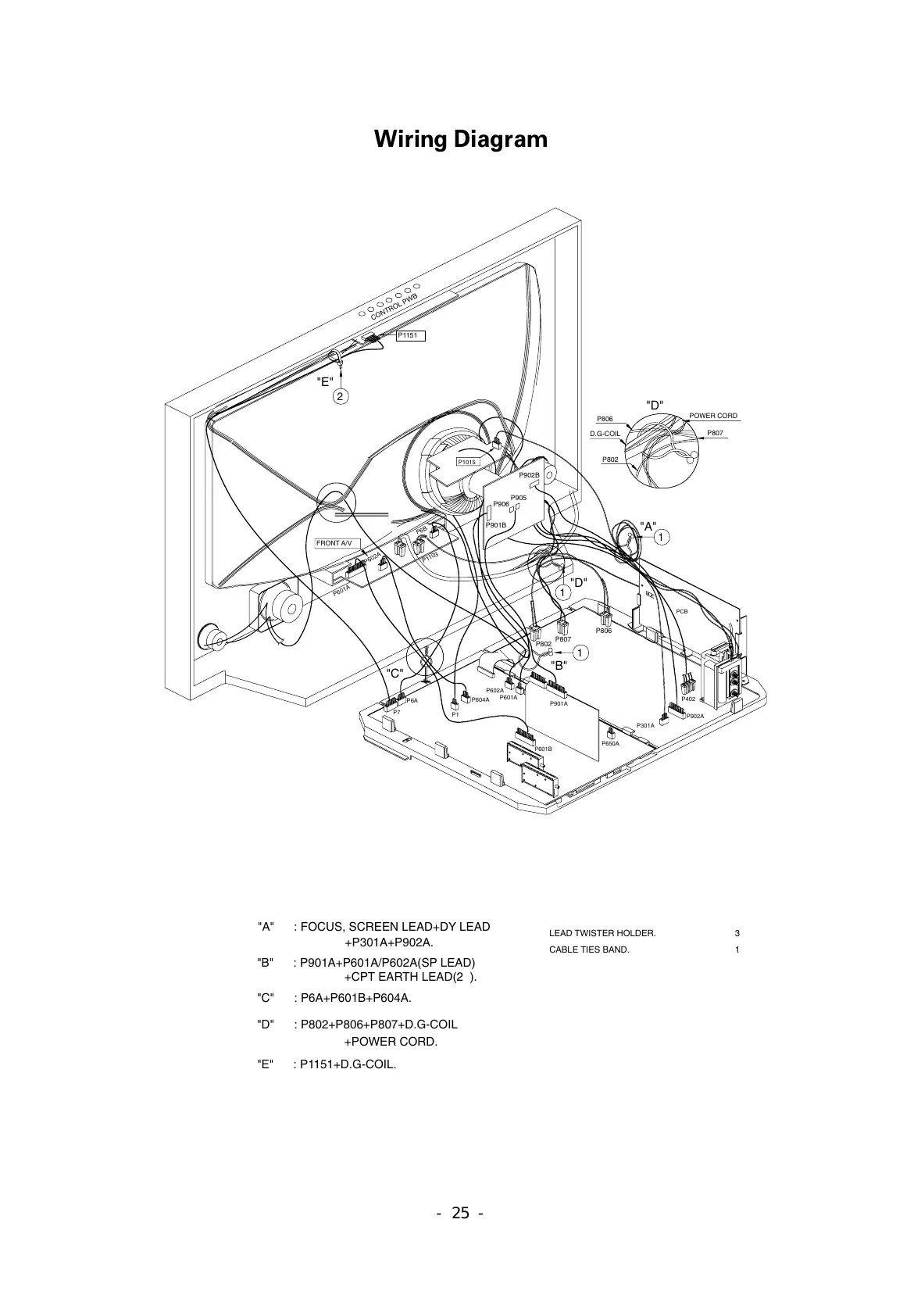

Wiring Diagram
- 25 -
"E" : P1151+D.G-COIL.
"C" : P6A+P601B+P604A.
"A" : FOCUS, SCREEN LEAD+DY LEAD
"B" : P901A+P601A/P602A(SP LEAD)
"D" : P802+P806+P807+D.G-COIL
P7
"C"
P602A
P601A
FRONT A/V
P901A
P1
P601B
P902A
P301A
P650A
P806
D.G-COIL
P806
P1103
P602A
P6A
P604A
P802
P601A
"B"
P807
1
1
"D"
P906
P901B
P6B
P1015
P905
P902B
PCB
P402
POWER CORD
"A"
1
P802
P807
P1151
CONTROL PWB
"E"
2
"D"
LEAD TWISTER HOLDER.
CABLE TIES BAND. 1
3
+CPT EARTH LEAD(2 ).
+POWER CORD.
+P301A+P902A.
