LG WT4970CW User Manual

_NSTALLATION iNSTRUCTIONS 15

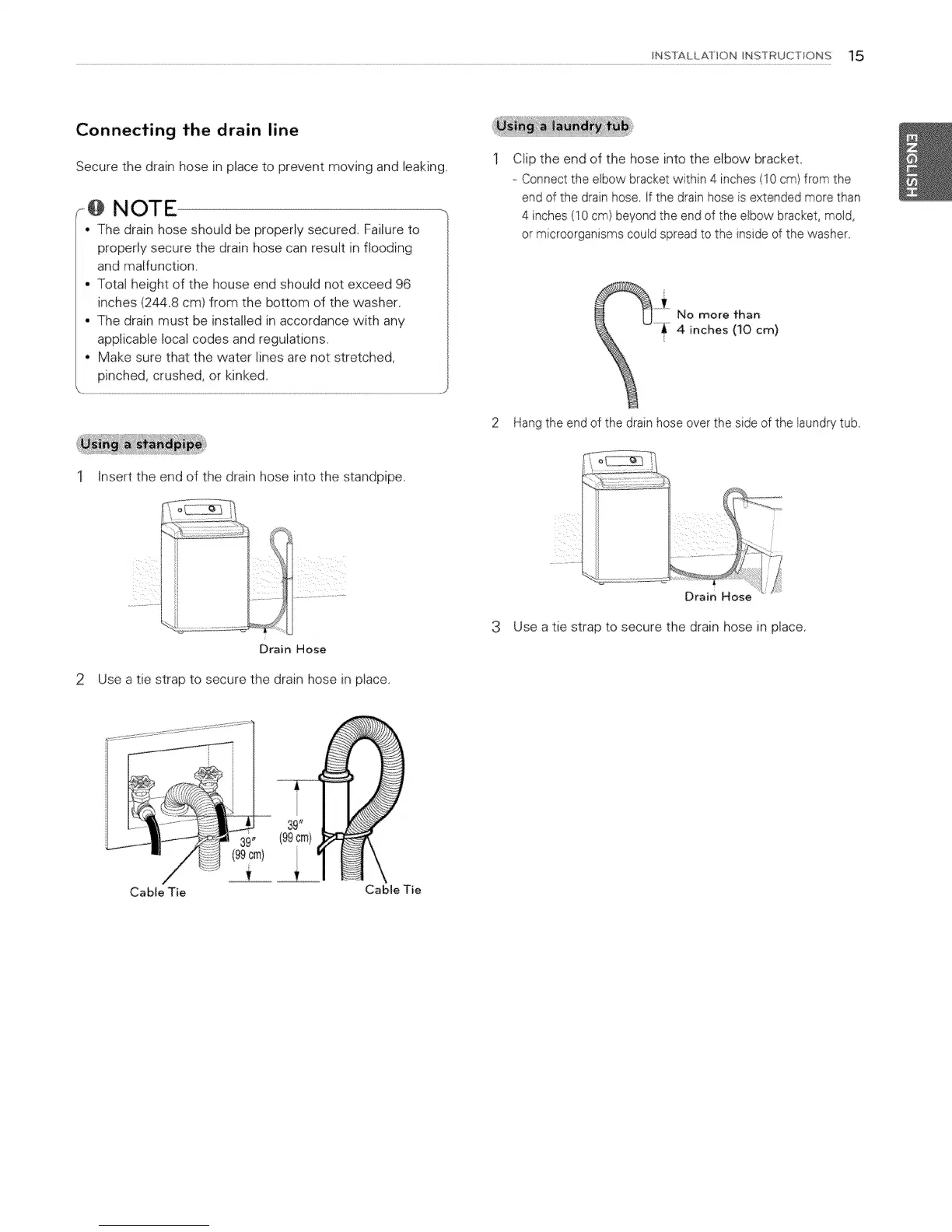

Connecting the drain line
Secure the drain hose in place to prevent moving and leaking.
NOTE
° The drainhose shouldbe properlysecured,Failureto
propedy secure the drain hose can result in flooding
and malfunction.
• Total height of the house end should not exceed 96
inches (244.8 cm) from the bottom of the washer,
• The drain must be installed in accordance with any
applicable local codes and regulations.
• Make sure that the water lines are not stretched,
pinched, crushed, or kinked,
C_ipthe end of the hose into the elbow bracket.
Connect the elbow bracket within 4 inches (10cm) from the
end d the drain hose. If the drain hose is extended more than
4 inches (10 cm) beyond the end of the e{bow bracket, mold,
or microorganisms could spread to the inside of the washer.
No more fhan
4 inches (10 crn)
[
2 Hang the end of the drain hose over the sde of the laundry tub
1 insert the end of the drain hose into the standpipe
Drain Hose
Use a tie strap to secure the drain hose in place,
Drain Hose
3 Use a tie strap to secure the drain hose in place,
...... ............
_ (99cm)
// _ T .
Cable Tie
Cable Tie
