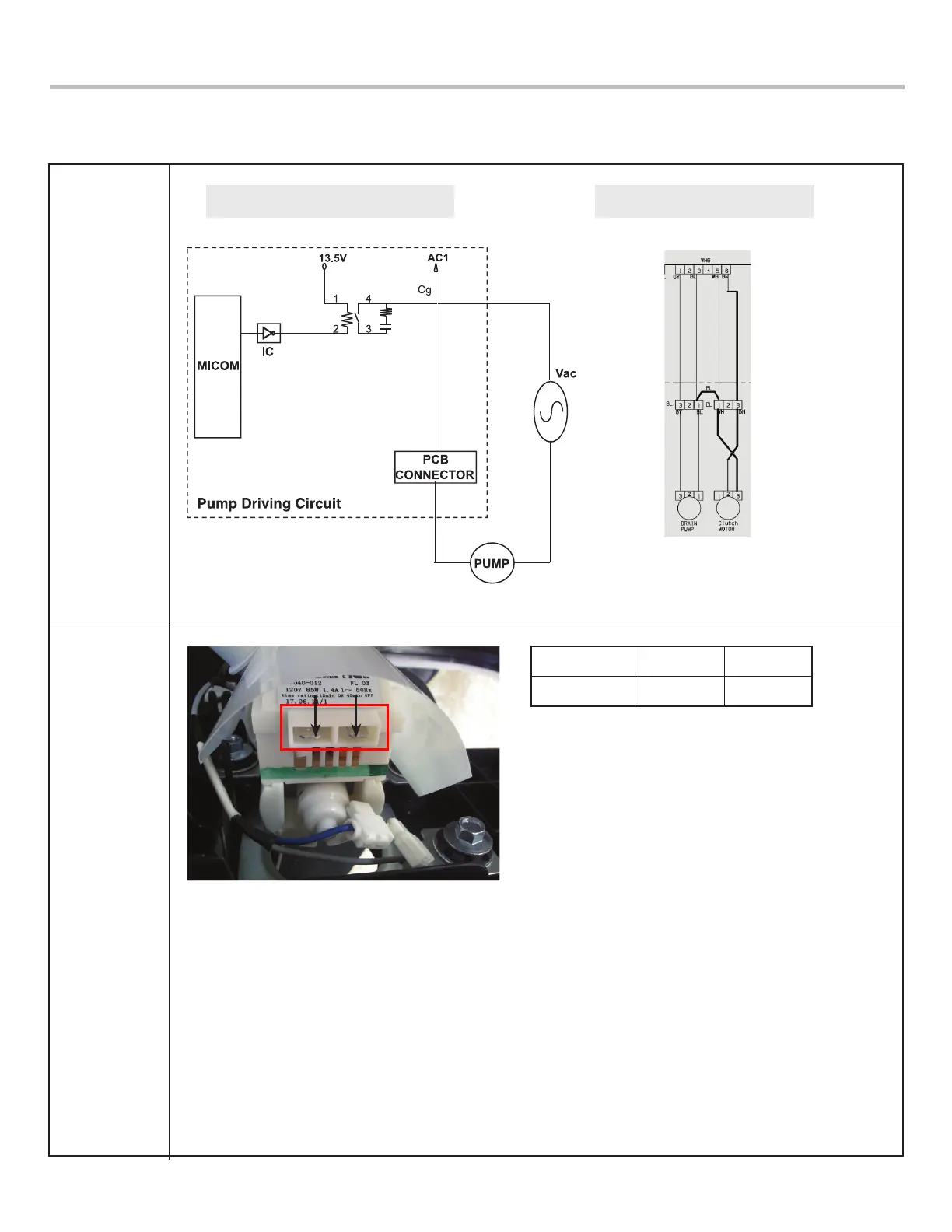

5-4. PUMP MOTOR ASSEMBLY
45
Wiring
diagram
Test
points
and
Result
Circuit in the MAIN PCB Wiring Diagram
(1) (2)
Result
10.9±5%
Remarks
Resistance
Test Points
(1) to (2)
* Each circuits of loads in wiring diagram are all same.
