11
a COMPONENT OUTPUT (Y PB
PR
)
Connect to a TV with Y P
B PR inputs.
b INPUT 1 (VIDEO/AUDIO (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, VCR,
Camcorder).
c AC Power Cord
Plug into the power source.
d COAXIAL (DIGITAL AUDIO OUTPUT)
Connect to digital (coaxial) audio equipment.
e S-VIDEO OUTPUT
Connect to a S-Video Input on TV.
f
AUDIO OUTPUT (Left/Right)
Connect to a TV or other equipment with audio
inputs.
g VIDEO/AUDIO OUTPUT (Left/Right)
Connect to a TV with video and audio inputs.
ab c
de f g

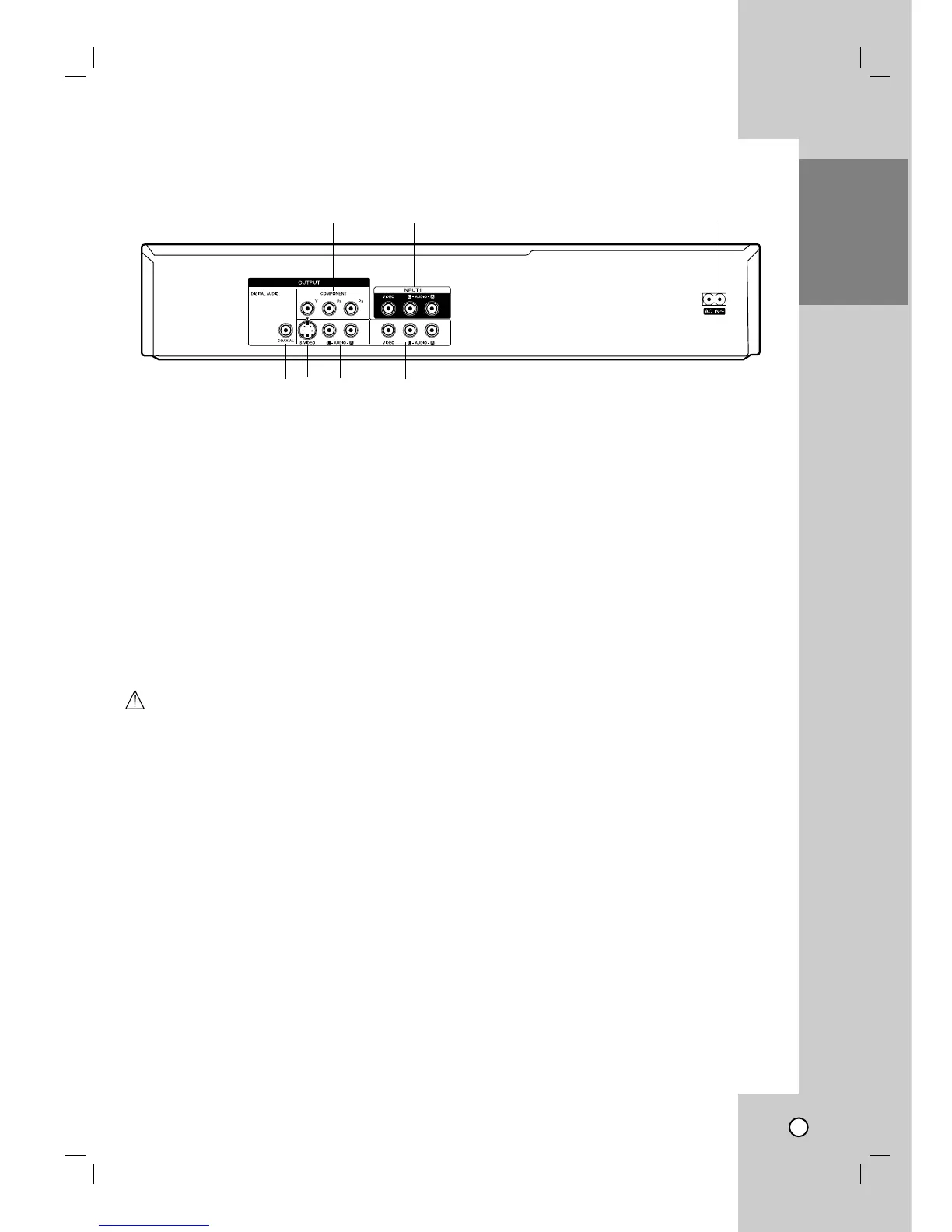

Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
INTRODUCTION
