34
9-3/4"
11-3/4"
3-1/2"

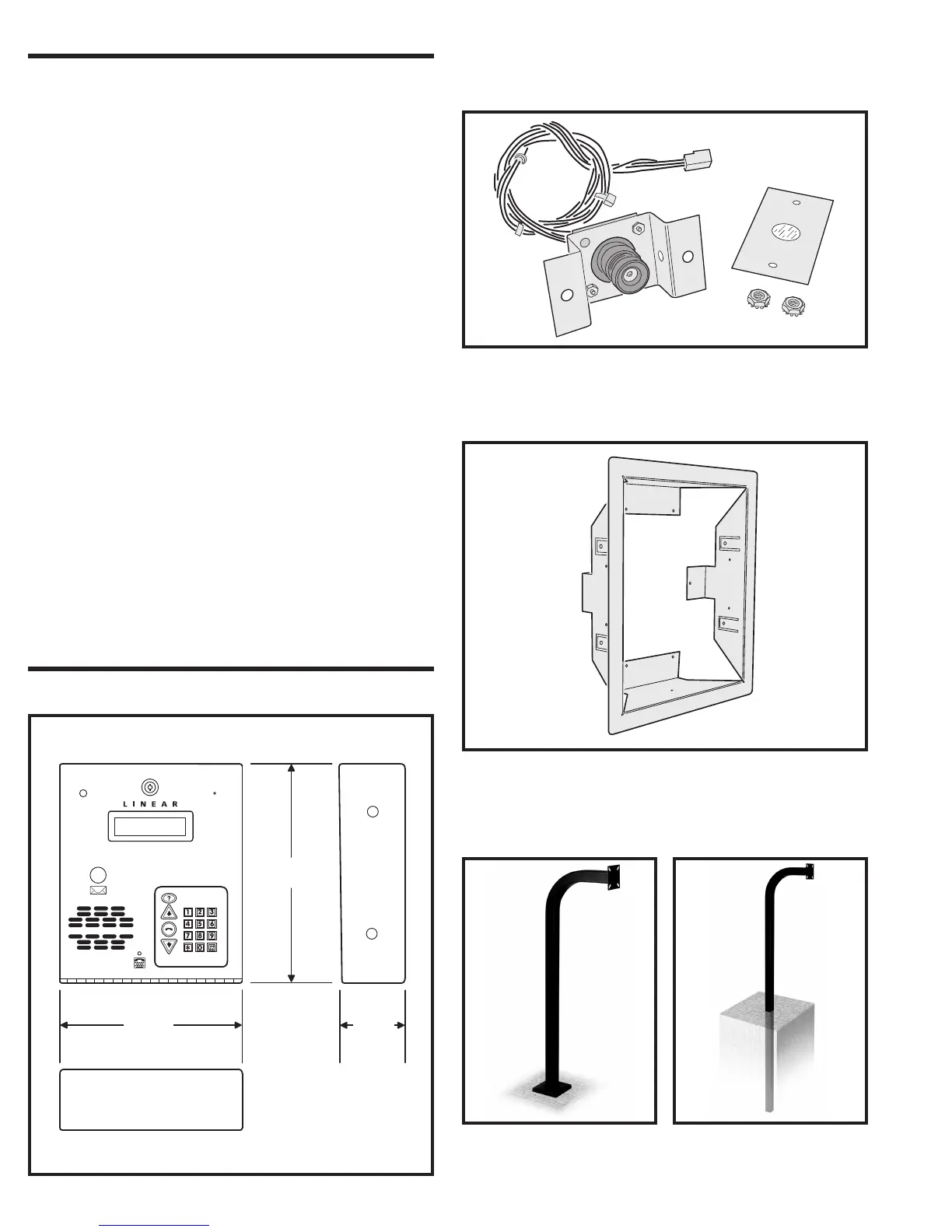

Model CCM-1 Color CCTV Camera (P/N ACP00904)
Model TR-100 Trim Ring (P/N ACP00941)
Model GNC-1 Curb-mount
Gooseneck (P/N ACP00906)
Model GNB-1 Burial-mount
Gooseneck (P/N ACP00907)
Specifi cations
MECHANICAL
Case dimensions: 9-3/4” W x 11-3/4” H x 3-1/2” D
ELECTRICAL
Input Power: 16 VAC from supplied plug-in transformer
Current Consumption: < 200 mA idle, < 500 mA operating
Backup Battery: 12 Volt sealed lead-acid gel cell (not included)
Built-in charger with up to 7 A/H battery capacity
Access Relay: Form “C” (Normally Open & Normally Closed)
10 Amps @ 30 Volts AC maximum
7 Amps @ 30 Volts DC maximum
Display: Two-line 16-character LCD with LED backlight
Dialing: DTMF
ENVIRONMENTAL
Temperature: -22°F to 149°F (-30°C to 65°C)
Humidity: 5% to 95% non-condensing
Dimension Drawing
