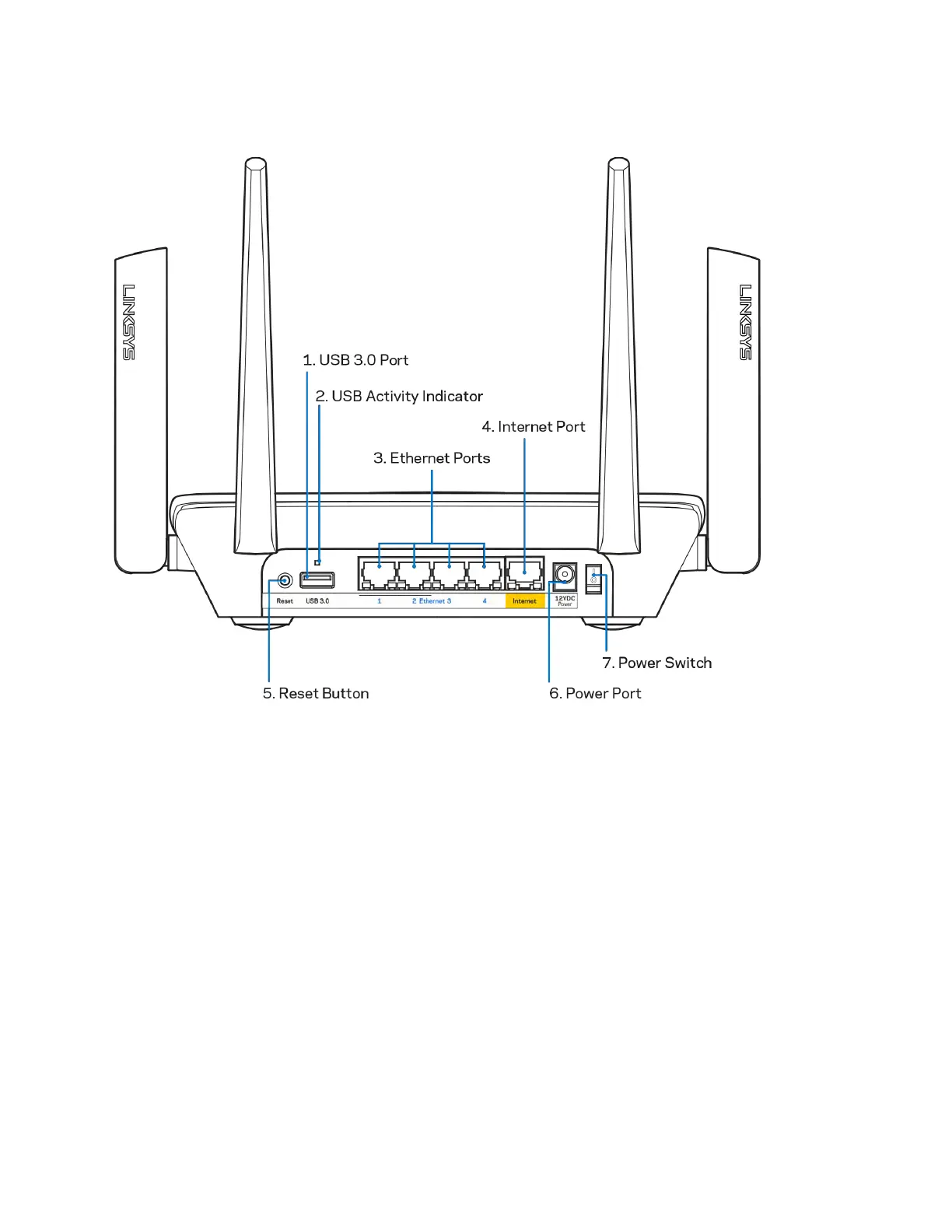

Back
USB 3.0 port (1)— Connect and share USB drives on your net
work or on the internet.
Note—This port is for future capability and might require a firmware update when available.
USB activity indicator (2)— Lights indicate data transfer to/from external devices.
Ethernet ports (3)—Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to
wired devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Internet port (4)—Connect an ethernet cable to the yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem. If you are using this router as a child node in a Wi-Fi
system, you can use this port to create a wired connection to another node.
Note—For best performance, use CAT5e or higher rated cable on the Internet port.
Reset button (5)— To factory reset your router, press and hold while the light on top of the router
blinks red. Do not release the button until the light goes out and then turns bright red.
Power port (6)—Connect the included AC power adapter.
Power switch (7)—Press | (on) to turn on the router.

Linksys MAX-STREAM MR9000 Specifications

General

Color	black
Wi-Fi Range	3000 square feet
Wi-Fi Speed	3 gigabits per second
Band Technology	tri
Frequency Band	2.4 ghz, 5.0 ghz
Ethernet Standard	10/100/1000
Number Of Connections	25
Wireless Networking Standard	wi-fi 5
Wireless Standard	ac
2.4 Ghz Streams	1
5.0 Ghz Streams	2
Gigabit Ethernet Speed	yes
Antennas	4
Parental Control	yes
Firewall	spi
Ports	rj-45, usb
Input/Output	mu-mimo (multi-user multiple-input multiple output)
Built In Modem	no
Smart Applications	true, linksys app
