Securing the Fabric
1. Extend and retract the awning several times to ensure that the fabric is square on the roll tube.
2. Secure the fabric in the awning rail no more than 1” inside the edge of the fabric on both ends using a #6 x
½
” hex head screw. Install the screw down through the awning rail into the fabric and the polycord (Fig. 11).
Installing the Stop Bolt
1. Make sure the awning is retracted completely.
2. Make sure the centerline of the roll tube is level with or slightly higher than the centerline of the
awning rail (Fig. 2). The bottom of the roll tube MUST NOT be higher than the awning rail.
3. Adjust support arm assemblies if necessary.
A. Open the outer arm handle (Fig. 12) and slide the outer arm upper channel (channel #1) (Fig. 7)
up or down as required. Close the handle and slide the outer arm upper channel (channel #1) (Fig.
7) on the outer arm lower channel (channel #2) (Fig. 7) until the locking pin clicks into the nearest
positioning hole.
4. Mark the position of the stop hole that is directly below the outer arm upper channel (channel #1)
(Fig. 7).
5. From the inside of the outer arm lower channel (channel #2) (Fig. 7), insert a
⁄
” bolt through the hole.
Secure with a star washer and
⁄
” cap nut using
½
” socket and wrench (Fig. 13).
NOTE: It may be necessary to lift the outer arm upper channel (channel #1) (Fig. 7) to tighten the cap nut.
6. Repeat step 4 and 5 for the other support arm assembly.

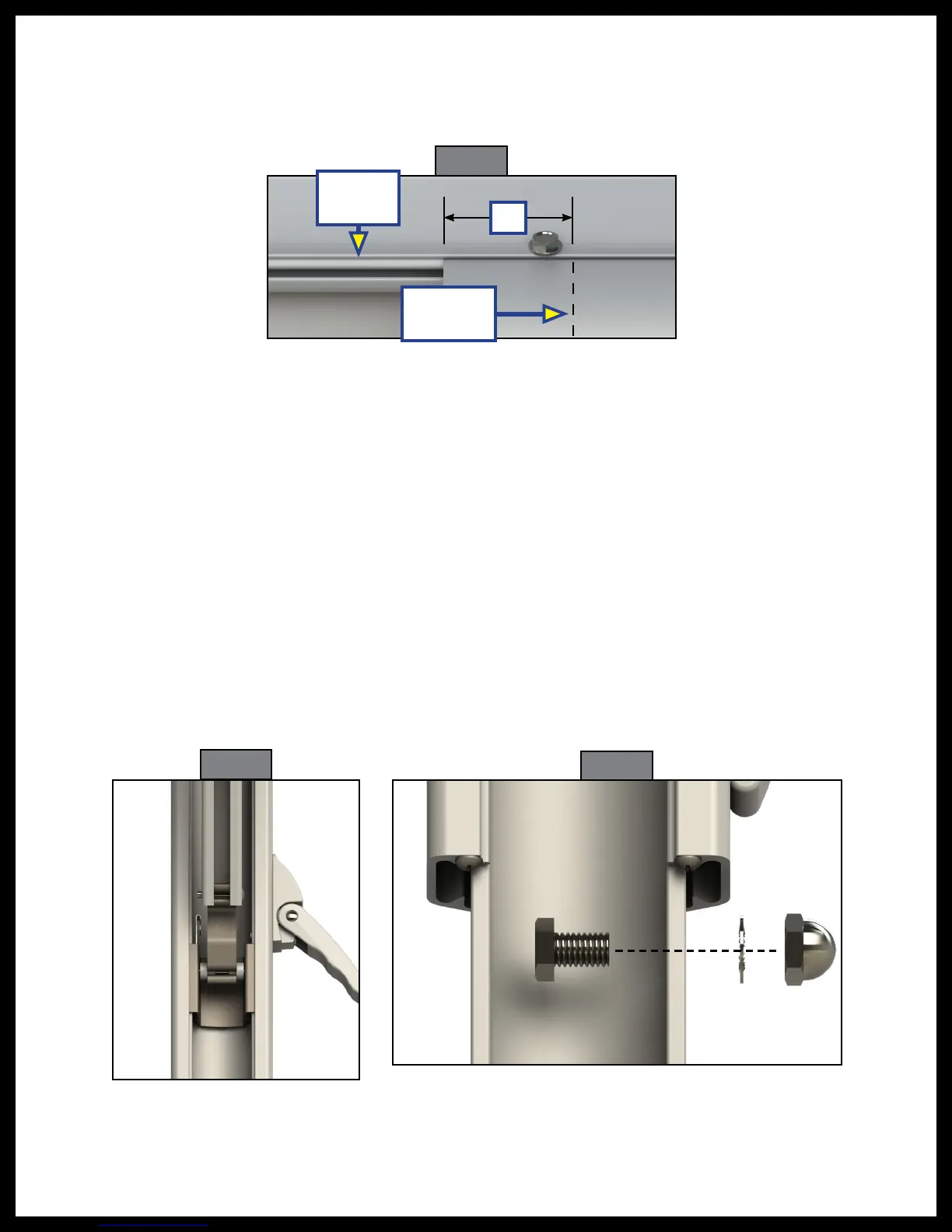

Fig. 11
Fig. 12
Fig. 13
Awning
Rail
1"
Fabric
Stitching
