Logik L24DVDB21 User Manual

GB
15

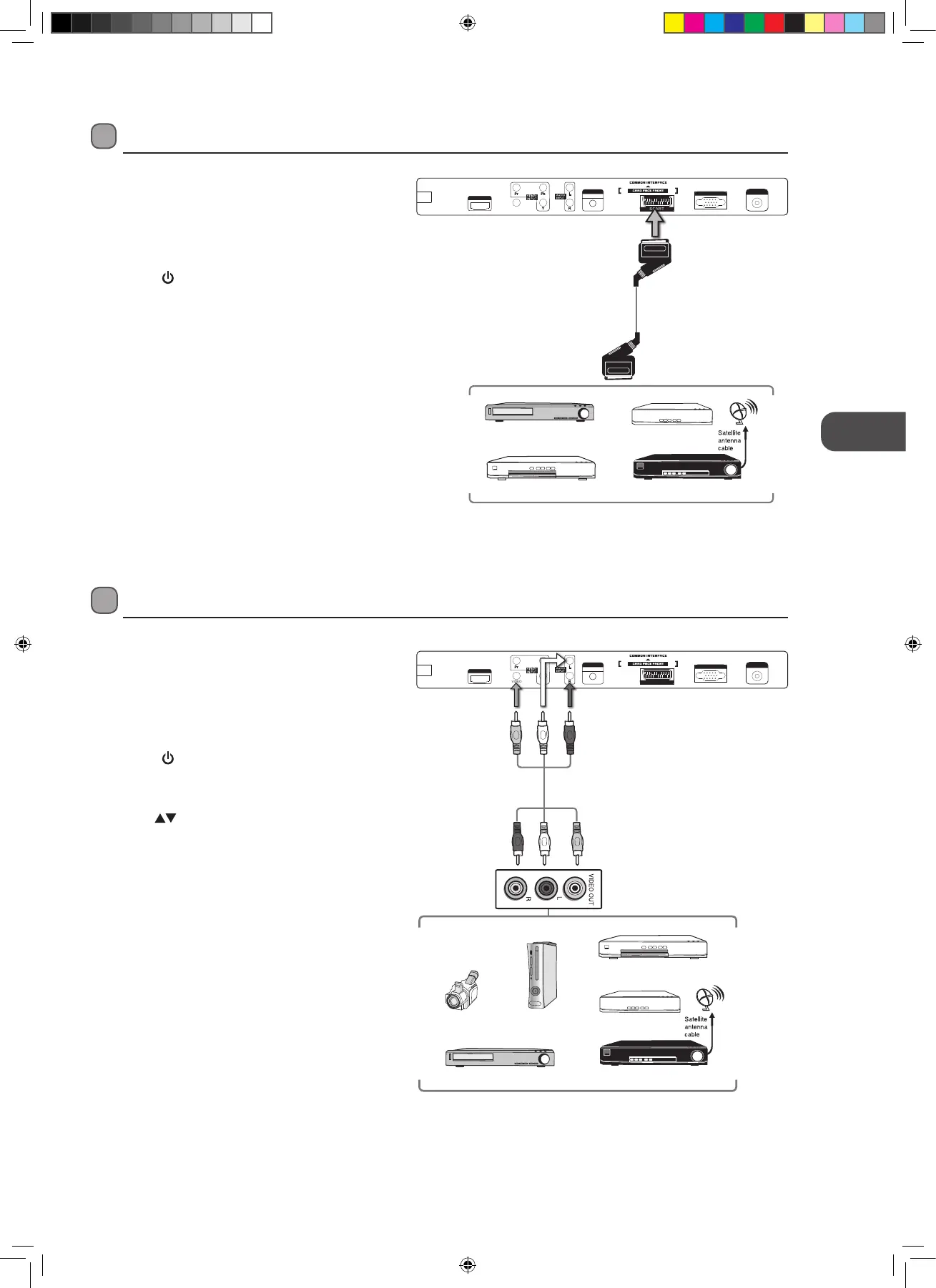

Connections
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the side panel of the TV or on
the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear View of TV
100 -240V ~ 50/60 Hz
AC- INPUT
HDM I INPU T
PC
AUD IO INPU T
SCART
VGA INP UT
RF INP UT
VIDEO
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Connecting an AV Device with Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / vedio output sockets. (VIDEO =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the side panel of the TV or
on the remote control to turn on your TV.
4. Press the INPUT button to display the Source List.
Use the buttons to select AV and then press
the OK button to confirm.
Rear View of TV
100 -240V ~ 50/60 Hz
AC- INPUT
HDM I INPU T
PC
AUD IO INPU T
SCART
VGA INP UT
RF INP UT
VIDEO
Satellite Receiver
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
L24DVDB21_IB_final110411_running change.indd 15 11/04/2011 6:26 PM

Logik L24DVDB21 Specifications

General

Brand	Logik
Model	L24DVDB21
Category	LCD TV
Language	English
