7

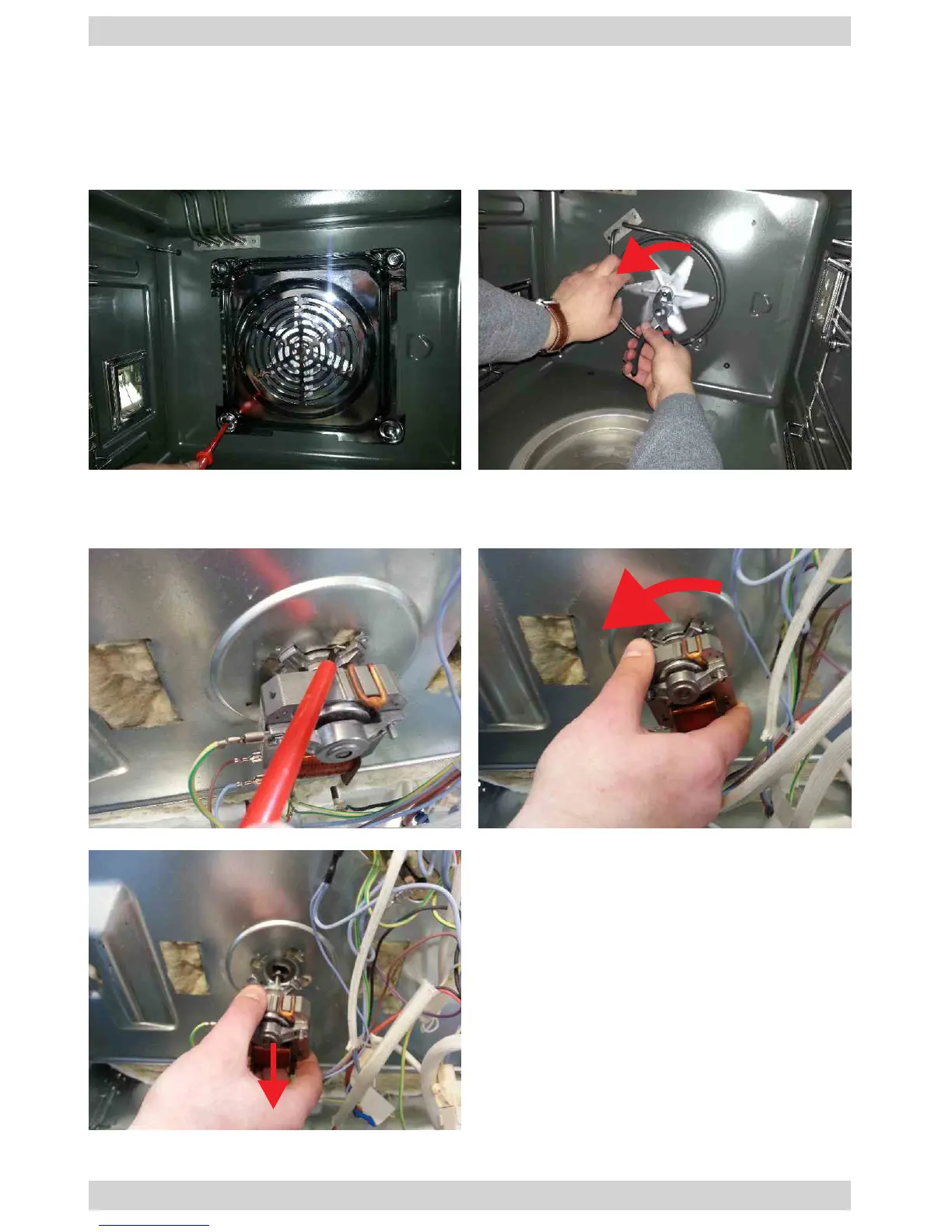

Convection fan assembly
1. Remove the rear wall according to relevant instructions in the manual. Remove
the fan guard by removing the screws. Remove the fan propeller by holding the
fastening nut with the pliers and rotating propeller.
Remove the fan
3. To reassemble the components follow the above steps in reverse order.
2. Remove the fan drive by bending the locking tab. Then turn counter-clockwise
and pull the fan drive toward you. Disconnect the fan drive wiring harness.
