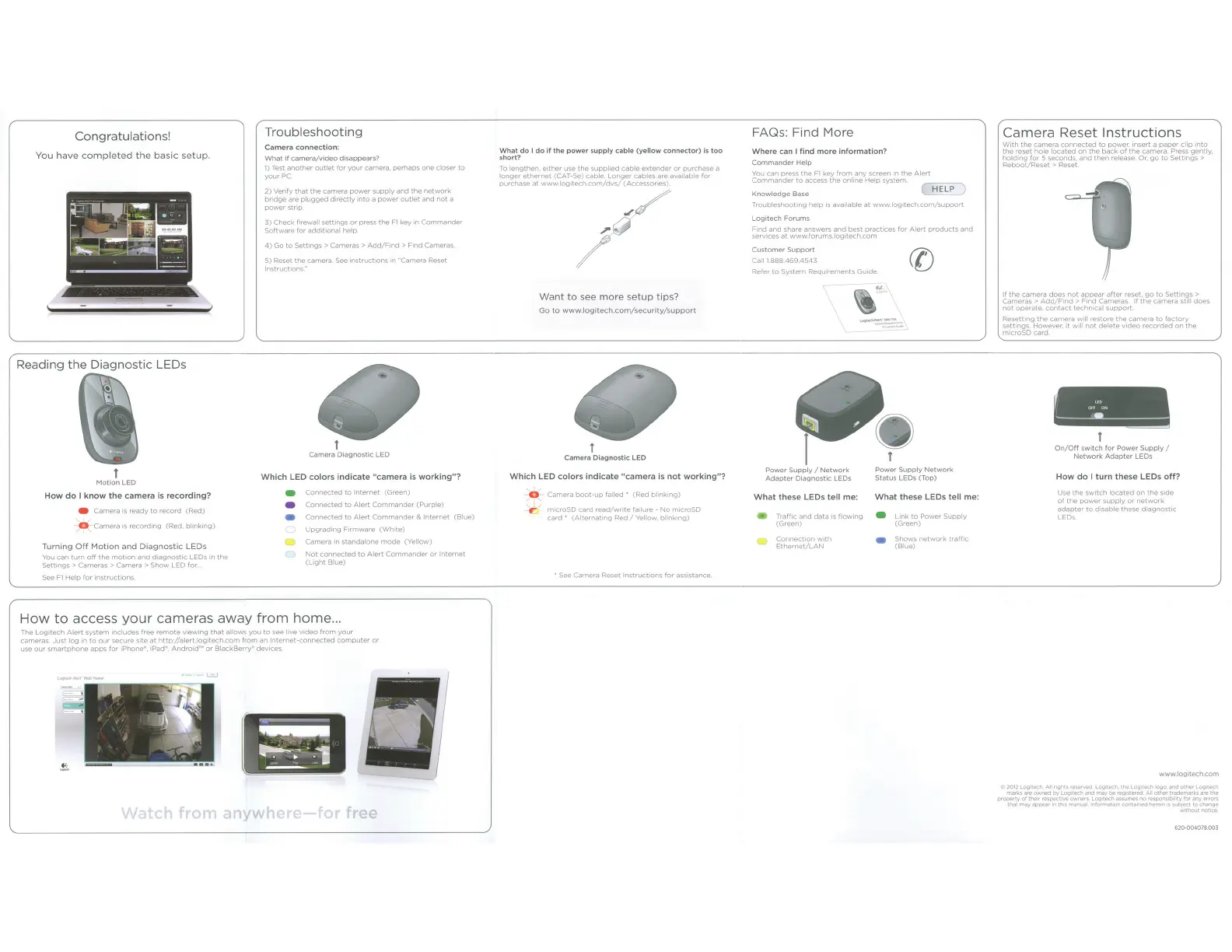

Logitech Alert 750n User Manual

Congratulations!
You have completed the basic setup.
Reading the Diagnostic LEDs
Mo t ion LED
How do I know the camera is recording?
• Camera is ready to reco rd (Red)
D · Camera is reco r ding (Red. blinking)
Turning Off Motion and Di agnostic LEO s
You
can turn o ff the motio n and diagnostic LE Os in the
Settings > Came ras >Came ra > Show LED for.
See
F1 He lp for instructions.
Troubleshooting
Camera connection:
What if camer a/v i deo disappears?
1) Tes t another outlet for your camera. perhaps one closer to
your PC
2) Verify that the camera powe r supply and the network
bridge are plugged direct ly 1nto a power outlet and not a
power stnp
3) Check firewall set tings or press the Fl key in Commander
Software for addi tional help
4) Go to Sett i ngs >Came r as> Add/Find > Find Cameras.
5) Reset the camera. See Inst ructions in "Camera Reset
Instruct
ions"
Camera Diagnostic LED
Which LED colors indicate "camera is working"?
e Connected to Int ernet (Green)
e Connected to Alert Commander (Purple)
e Connected to Alert Commander & Internet (B l ue)
Upgrading Firmware (Wh ite)
Camera in stan da l one mode (Yel low)
Not connected to Aler t commander or Interne t
(Light Blue)
How to access your cameras away from home ...
The Logitech Alert syst em includes free remote viewin g th at allows you to see live video fr om you r
cameras.
Just l og in to our secure site at ht t p://a l ert.log i tech.com from an Interne t -connected compute r or
use our smartphone apps fo r i Phone ·. iPad", Andro i d'~ or Bl ackBerry " devices
Watch from anywhere-for free
What do 1 do if the power supply cable (yellow connector) is too
short?
To l engthen, eit her use the supplied cable extender or purchase a
longer ethernet (CAT-5e) cable. Longer cables are available for
pu rchase at www.log i tech . com/dvs/ (Accesso ries)
~ /
/ ~
Want to see more setup tips?
Go to www. l ogi t ech.co m /s e curi t y/sup p or t
Camera Diagnostic LED
Which LED colors indicate "camera is not working"?
D Camera boot-up failed • (Red blink i ng)
f") microSD card read/write failure- No microSD
card • (A l ternating Red I Yellow, blinking)
• See Camera Reset Instructions fo r assistance
FAQs: Find More
Where can I find more information?
Commander Help
You can press the Fl key from any screen 1n the Alert
Commander to access the online He lp syst em
~
Knowledge Base
Troubleshooting help is available at www . logitech.com/support
Logitech For ums
Find and share answers and best practices for Alert products and
services at www.fo r ums.logitech.com
Cust omer Support
Call1.888.469.4543
Refer to System Requirements Guide
Power Supply 1 N etwork Powe r Supply Network
Adapte r Diagnost ic LEOs Status LEOs (Top)
What these LEOs tell me: What these LEOs tell me:
• Traffic and data is flowing e Link to Power Supp ly
(Green) (Green)
e Shows network tra ff ic
(Blu
e)
Camera Reset Instructions
With the camera connec ted to powe r. insert a paper clip into
the reset hole l ocated on t he back of the camera . Press gent l y.
holding for 5 seconds. and then release. Or, go to Settings >
Reboot/Rese t > Reset
If the came ra does not appear after reset. go to Settings >
Cameras
>Add/Find > Find Cameras If the camera still does
not opera t e. contact technical support
Resett i ng the came ra will restore the came ra to factory
settings . However, it w ill not delete video reco r ded on the
mic roSD ca re.
On/Off switch f or Powe r Su pp ly I
Network Adapter LEOs
How do I turn these LEOs off?
Use the switch loca t ed on the side
of the power supply or network
adap ter to disable these diagnostic
LEOs
