Logitech RALLY User Manual

3
PoE
Tap
USB connection*
Tap IP
LAN + PoE injector (available for purchase seperately)
Tap IP
WLAN + PoE injector (available for purchase seperately)
Tap IP
PoE enabled network
*This is the configuration shown on the following pages

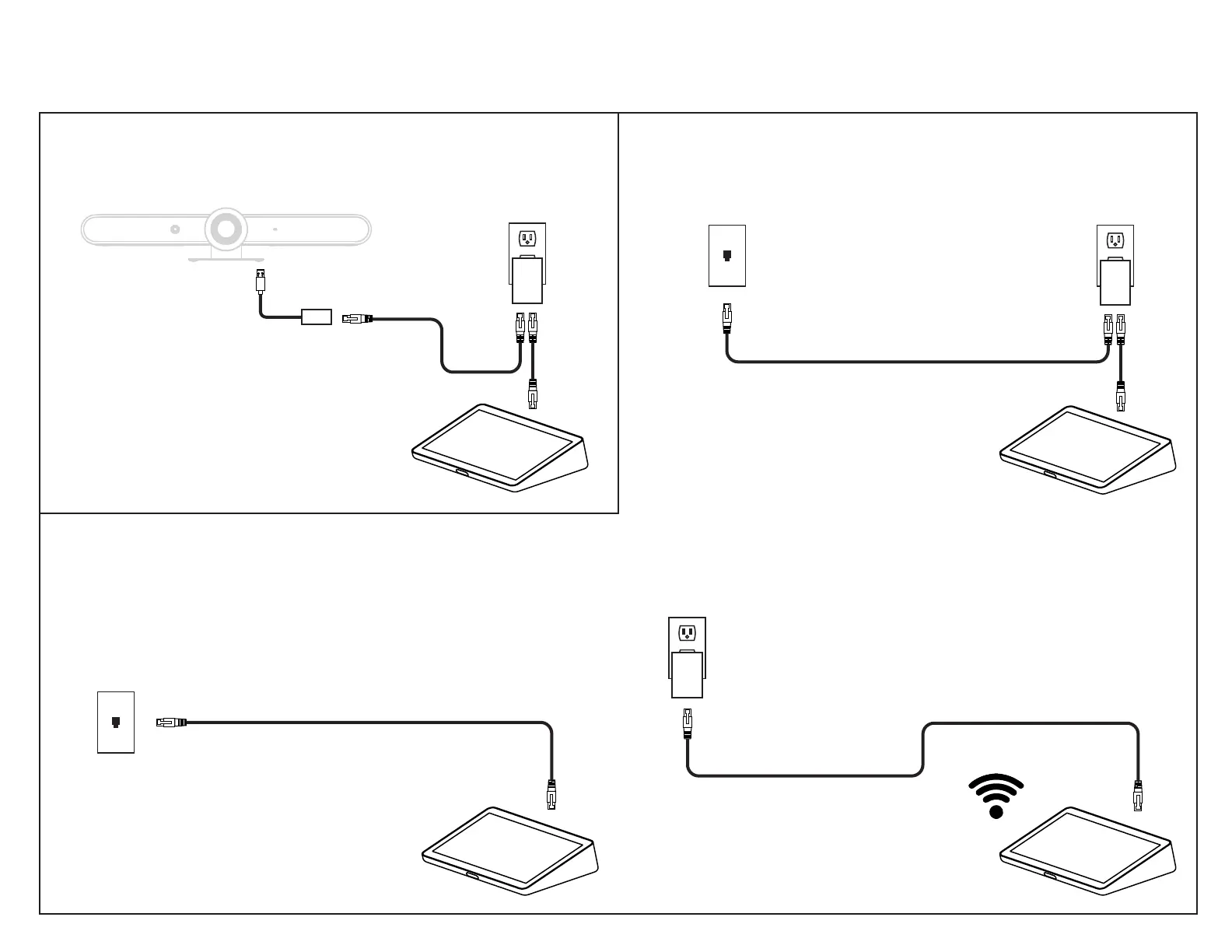

Wiring configurations for Tap and Tap IP. The wiring diagrams on the following pages are shown with
Tap, but most configurations can be substituted with Tap IP using one of the below connection methods.

Logitech RALLY Specifications

General

Quantity	1
Package type	Box
Package depth	289 mm
Package width	265 mm
Package height	178 mm
Package weight	3420.3 g
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Megapixel	13 MP
Focus adjustment	Auto
Number of camera presets	3
Field of view (FOV) angle	90 °
Maximum frame rate	60 fps
Supported video modes	720p, 1080p, 1440p, 2160p
Video formats supported	H.264
Maximum video resolution	3840 x 2160 pixels
Pan range	-90 - 90 °
Product color	Black
Tilt angle range	50 - -90 °
Cables included	AC, USB
Power source type	AC
Master (outer) case width	280 mm
Master (outer) case height	196 mm
Master (outer) case length	301 mm
Master (outer) case weight	3784.6 g

Weight and Dimensions

Width	152 mm
Height	182.5 mm
