Logitech Zone Wired User Manual

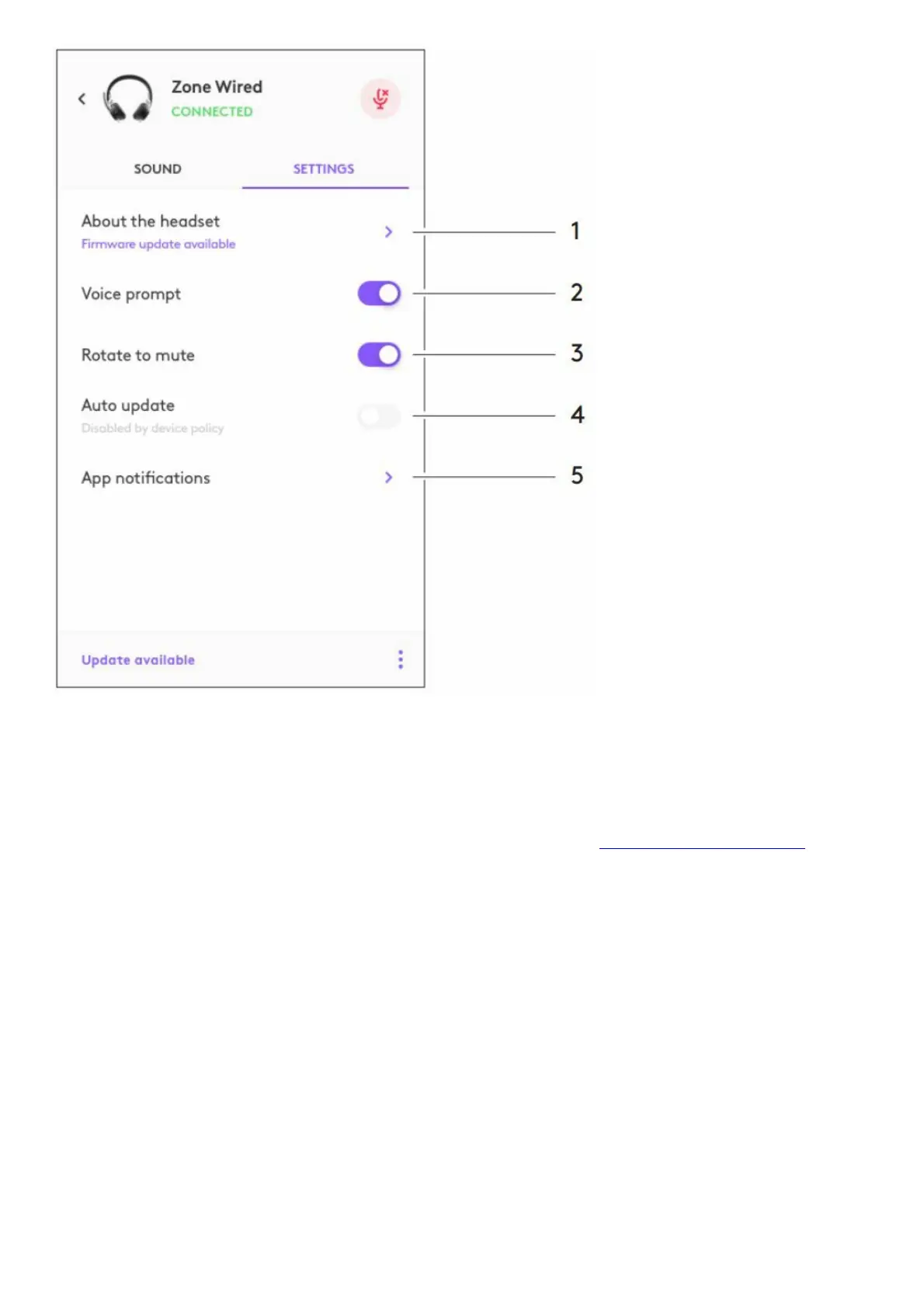

1. About headset > will give a summary of your device details and firmware information
2. Control voice prompt
3. Control flip to mute
4. Auto app update – Activate to run updates in the background so that your app will always be up to date
5. App notification control
Learn more about Tune for Enterprise mass deployment and configuration at: www.logitech.com/logitune
DIMENSION
Headset:
Height x Width x Depth: 165 93mm x 179 73mm x 66 77mm
Weight: 0 211 Kg
Earpad dimensions:
Height x Width x Depth: 65 84mm x 65 84mm x 18 75mm
Adapter:
Height x Width x Depth: 21 5mm x 15 4mm x 7 9mm
SYSTEM REQUIREMENTS
Windows or Mac-based computer with available USB-C or USB-A port
TECHNICAL SPECIFICATIONS

Logitech Zone Wired Specifications

General

Cable length	1.9 m
Control type	Buttons
Headset type	Binaural
Product type	Headset
Product color	Graphite
Wearing style	Head-band
Operating keys	Multi-key, Volume +, Volume -
Volume control	Button
Control unit type	In-line control unit
Recommended usage	Office/Call center
Ear pads	Yes
Quantity	1
Ear pad size	65.84 mm
Audio adapters included	USB
USB connector	USB Type-C
3.5 mm connector	No
Connectivity technology	Wired
Impedance	32 Ω
Driver unit	40 mm
Ear coupling	Supraaural
Headphone frequency	20 - 16000 Hz
Maximum input power	30 mW
Headphone sensitivity	99 dB
Microphone type	Boom
Microphone frequency	100 - 16000 Hz
Number of microphones	2
Microphone sensitivity	-48 dB
Microphone direction type	Unidirectional/Omnidirectional microphone
Package depth	232 mm
Package width	194 mm
Package height	81 mm
Package weight	474 g
Master (outer) case width	246 mm
Master (outer) case height	215 mm
Master (outer) case length	333 mm
Master (outer) case weight	2284 g

Weight and Dimensions

Depth	66.77 mm
Width	179.73 mm
Height	165.93 mm
Weight	211 g
