Lumens VC-TR40NB User Manual

English-3

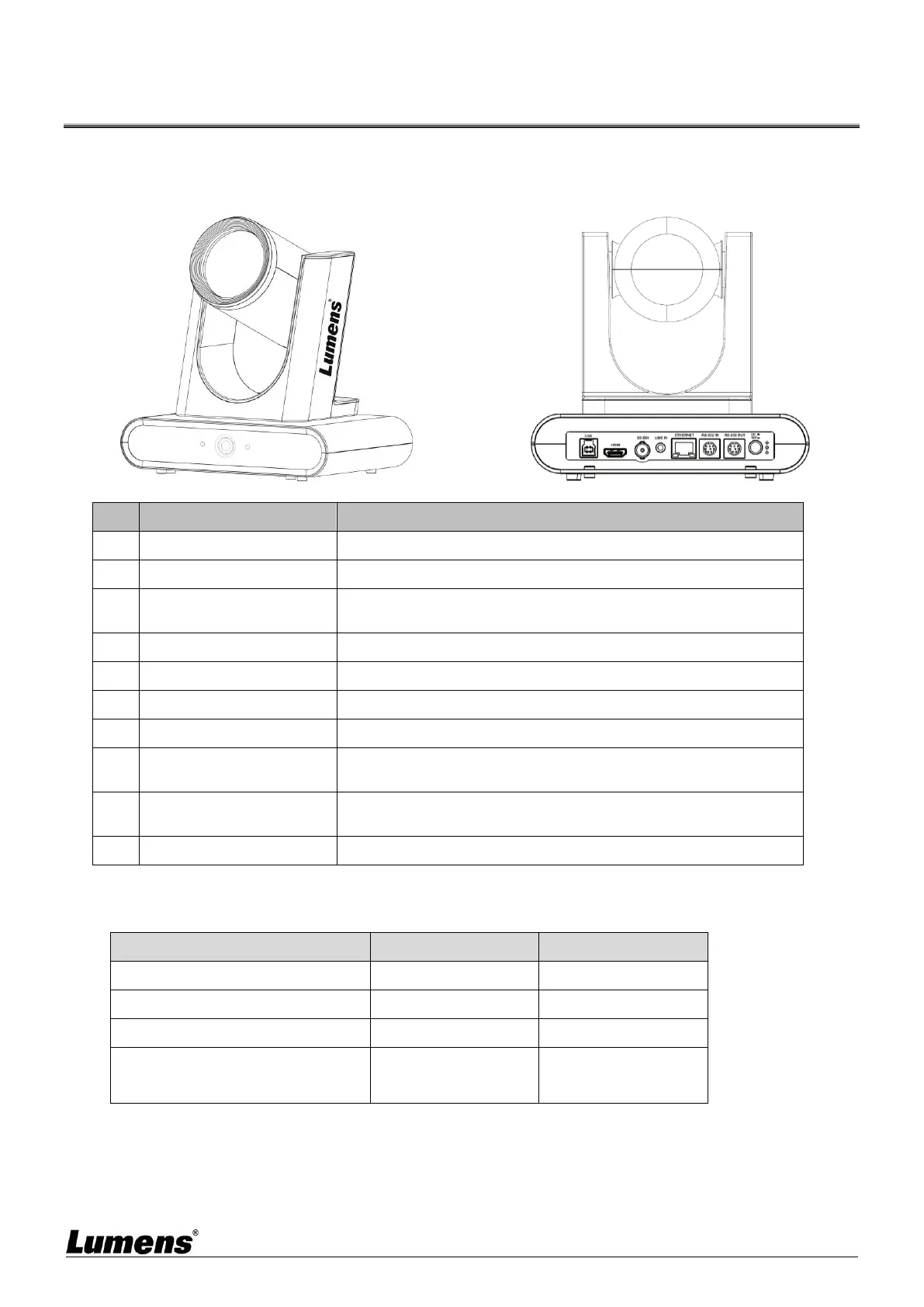

Chapter 2 Product appearance
2.1 I/O functions Introduction
NO.
Item
Function Descriptions
1.
Main camera lens
HD camera lens
2.
Panoramic lens
Panoramic camera lens
3.
USB3.0 Port
The USB port is for connecting to the USB port of the computer
and providing USB signal images
4.
HDMI output
HDMI output (Audio output supported)
5.
3G-SDI output
3G-SDI output(Audio output supported)
6.
Audio In
3.5 mm LINE IN
7.
Network port
Network cable port, supporting PoE (IEEE802.3af) power supply
8.
RS-232 input
RS-232 input port, at most 7 cameras can be connected in a
serial connection
9.
RS-232 output
RS-232 output port, at most 7 cameras can be connected in a
serial connection
10.
DC 12 V power Port
DC supply connecting port
2.2 Description of LED indicator
Status
Power
Standby
Startup in progress
Green light
Orange light
In use
Green light
No indicator
In standby mode
No indicator
Orange light
Tracking / Framing mode
Flickering green light
Flickering green light
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
Front View
Back View
○
1
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
