8

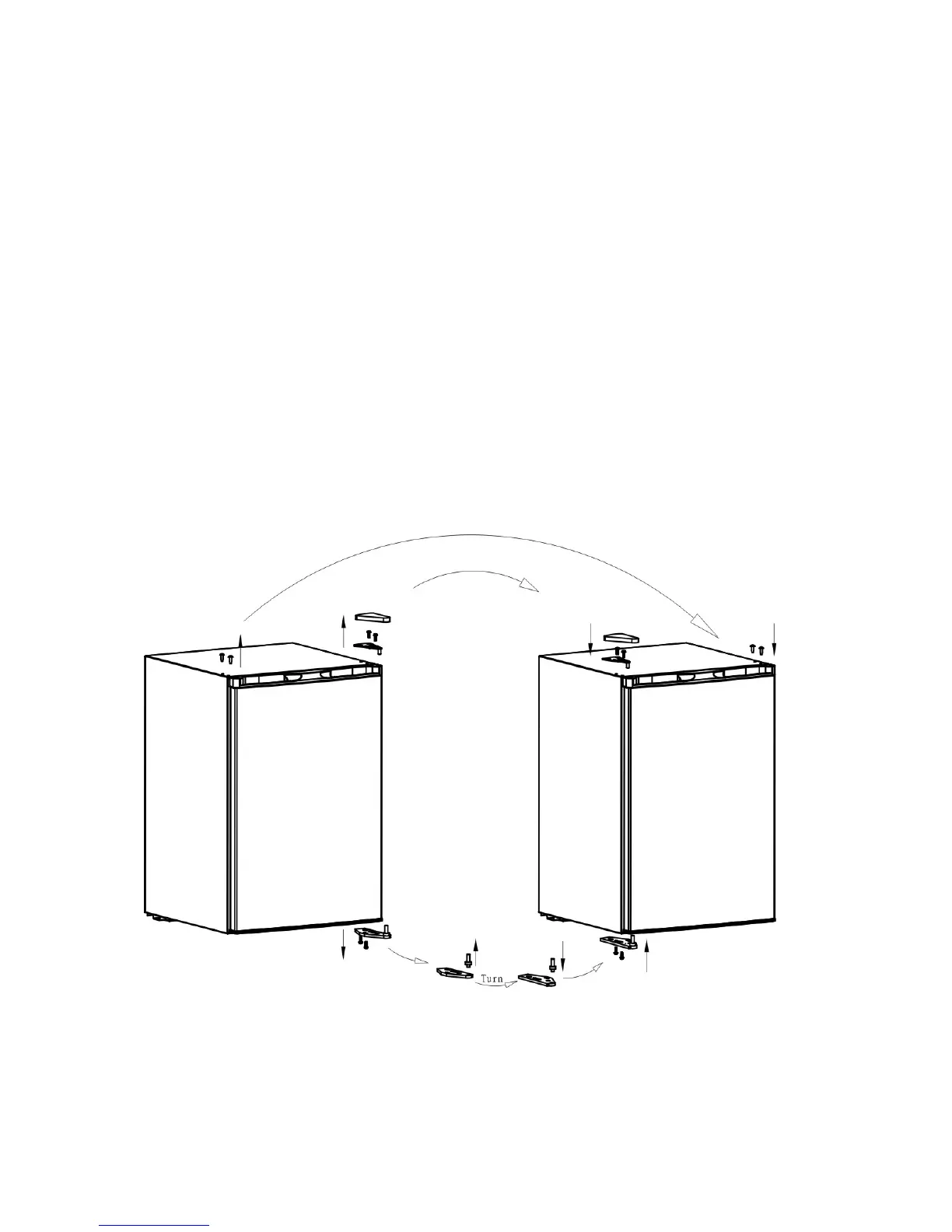

Door Reversal Instruction
• Remove the top hinge cover.
• Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place.
• Remove top hinge and carefully lift off the door.
• Remove the screw hole plugs from the opposite side and insert the plugs in the screw hole openings
of the just removed screws.
• Remove any loose items in the refrigerator and carefully turn refrigerator on its back and place in a
secure area.
• Loosen the screws holding the lower hinge bracket to the refrigerator and remove screws and bracket.
• Remove (2) screws from the other side and insert in the previously removed screw holes.
• Remove door pin by turning counter clockwise and reinsert to the underside of the bracket and
tighten.
• Align bracket and insert (2) remaining screws into the holes provided .
• Align hole in the door with the door pin and washer and gently push down until firm.
• Align upper hinge bracket with screw holes insert screws and partially secure, check that door and
cabinet are properly aligned and then secure tightly.
• Replace hinge cap.
