Page #87 background imageLoading...
Page #87 background image

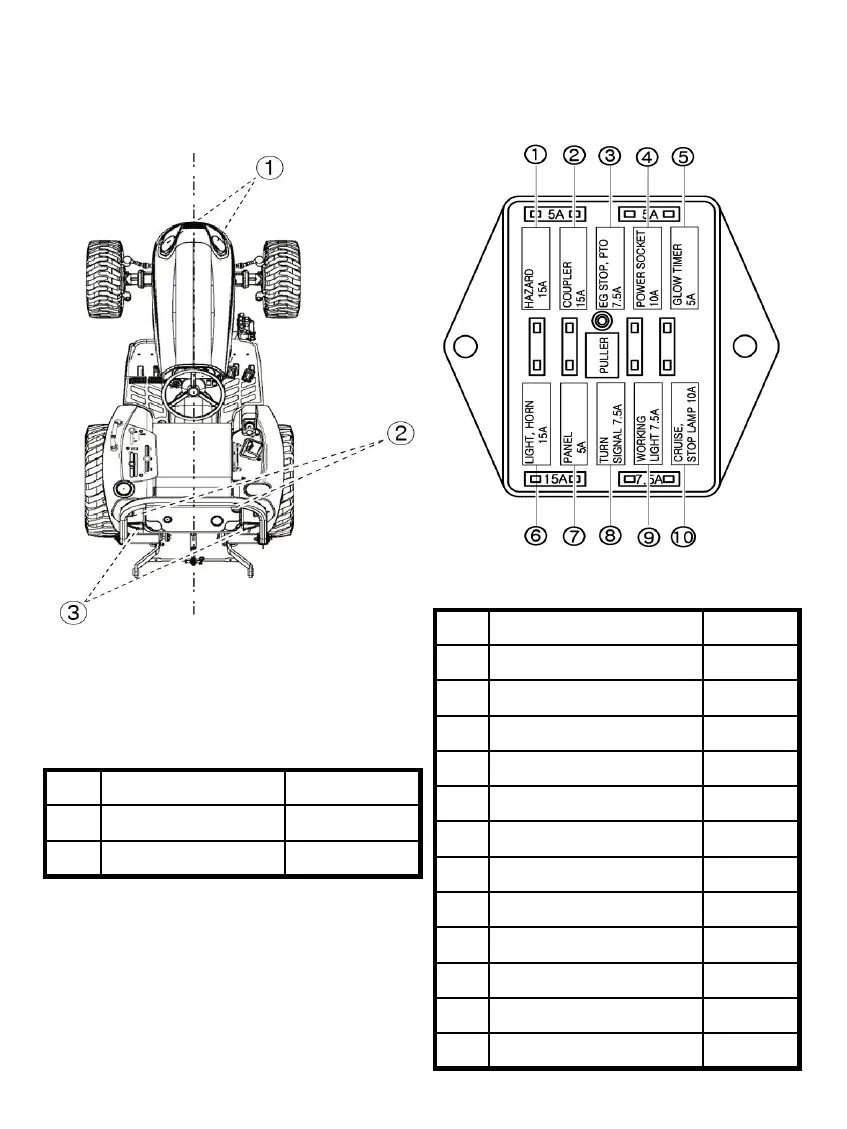

► Drawing for fixing position of the fuse
► Wiring diagram of the electric instrument
* Main Fuse
1
HAZARD 5A
2
COUPLER 15A
3
EG STOP, PTO 7.5A
4
POWER SOCKET 10A
5
GLOW TIMER 5A
6
LIGHT, HORN 15A
7
PANNEL 5A
8
TURN SIGNAL 7.5A
9
WORKING LIGHT 7.5A
10
CRUISE, STOP LAMP 10A
11
12
13
85
①
Head Lamp
12V/ 55W
②
Combination Lamp
12V/ 21W/ 5W
③ Stop Lamp
12V/ 21W/ 5W
