© Copyright Mahindra & Mahindra Ltd. 042015
7-11

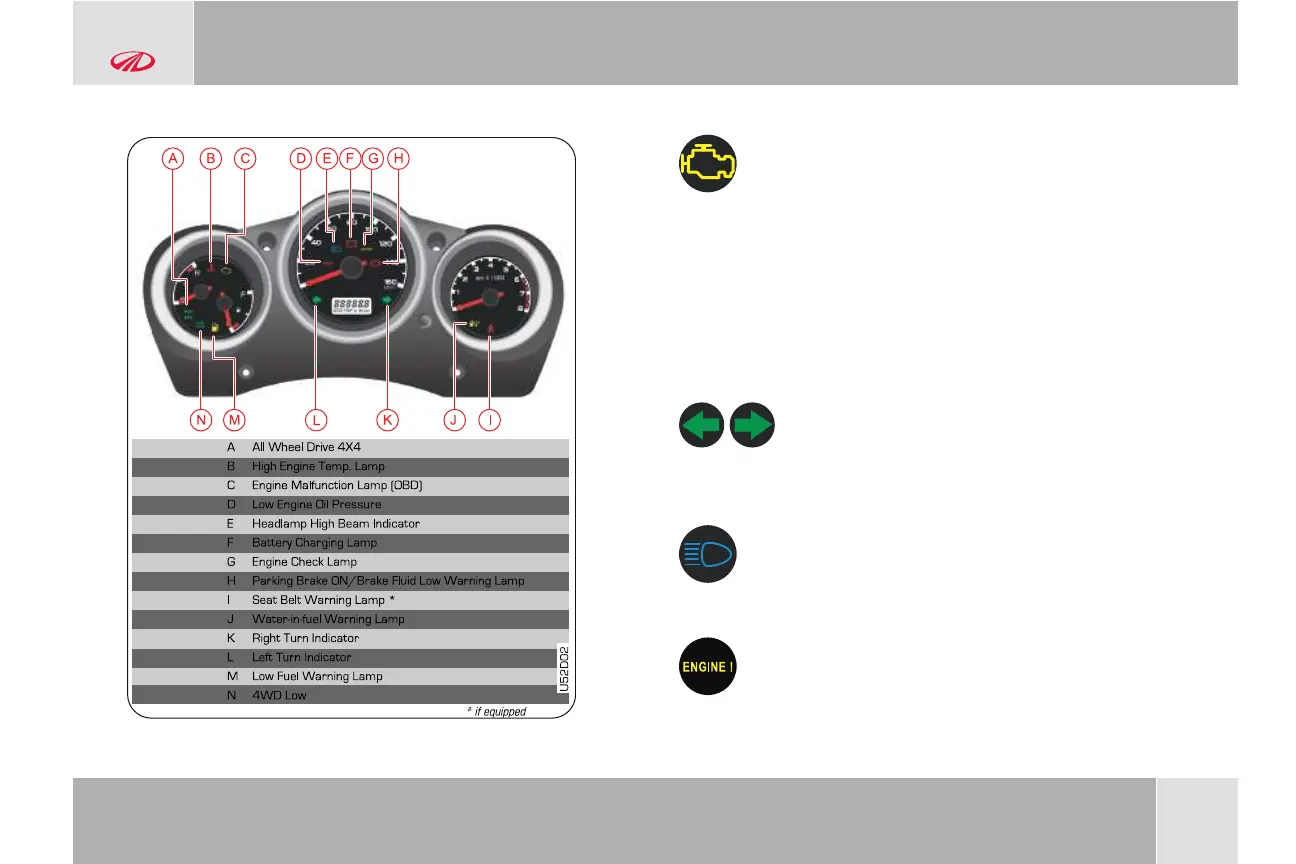

7.9 Warning Lamps in the Instrument Cluster
A All Wheel Drive 4X4
B High Engine Temp. Lamp
C Engine Malfunction Lamp (OBD)
D Low Engine Oil Pressure
E Headlamp High Beam Indicator
F Battery Charging Lamp
G Engine Check Lamp
H Parking Brake ON/ Brake Fluid Low Warning Lamp
I Seat Belt Warning Lamp *
J Water-in-fuel Warning Lamp
K Right Turn Indicator
L Left Turn Indicator
M Low Fuel Warning Lamp
N 4WD Low
U52D02
MN J IK
L
A B E GF HDC
* if equipped
OBD Check Lamp (BSIV only)
The OBD check lamp illuminates when the ignition is switched ON
and remains ON till the engine is started indicating normal status.
If the lamp remains ON, it indicates a potential engine malfunction.
There may be a malfunction in:
• The fuel management system
• The emission control system
• Systems which affect emissions
Such malfunctions may result in excessive emissions. Contact an Authorized
Mahindra Dealer immediately.
Turn Indicators
The turn lamp arrows in the instrument cluster flash showing the
direction indicated by the turn signals. A sudden increase in the
rate of flashing indicates failure of one or more of the lamp bulbs.
Have them replaced as soon as possible.
Head Lamp High Beam Lamp
The head lamp high beam lamp illuminates whenever the head
lamps are switched ON to high beam or when the head lamp flash
is used.
Check Engine Lamp
The check engine lamp illuminates when the ignition is switched
ON and goes out in 2 seconds indicating normal status. The lamp
blinks or illuminates continuously if there is a fault in the engine
management system. Contact the nearest Mahindra dealer for
necessary repairs.
FEATURES AND CONTROL
