120 mT1 300 Tim(2")
I I
6 ram (1/4") j _ 50ram (2")
2 _ .___ /_ 300 mm (12")
130 mm _
(5") 5_Zr,_)m
,_ 100 mm (4")
9.5 mm (3/8")4
50 ram (2") _"_ 8 mm (5/16")
1. Face/edge parallel
2. Handle
3. Wood screw
4. Glue together

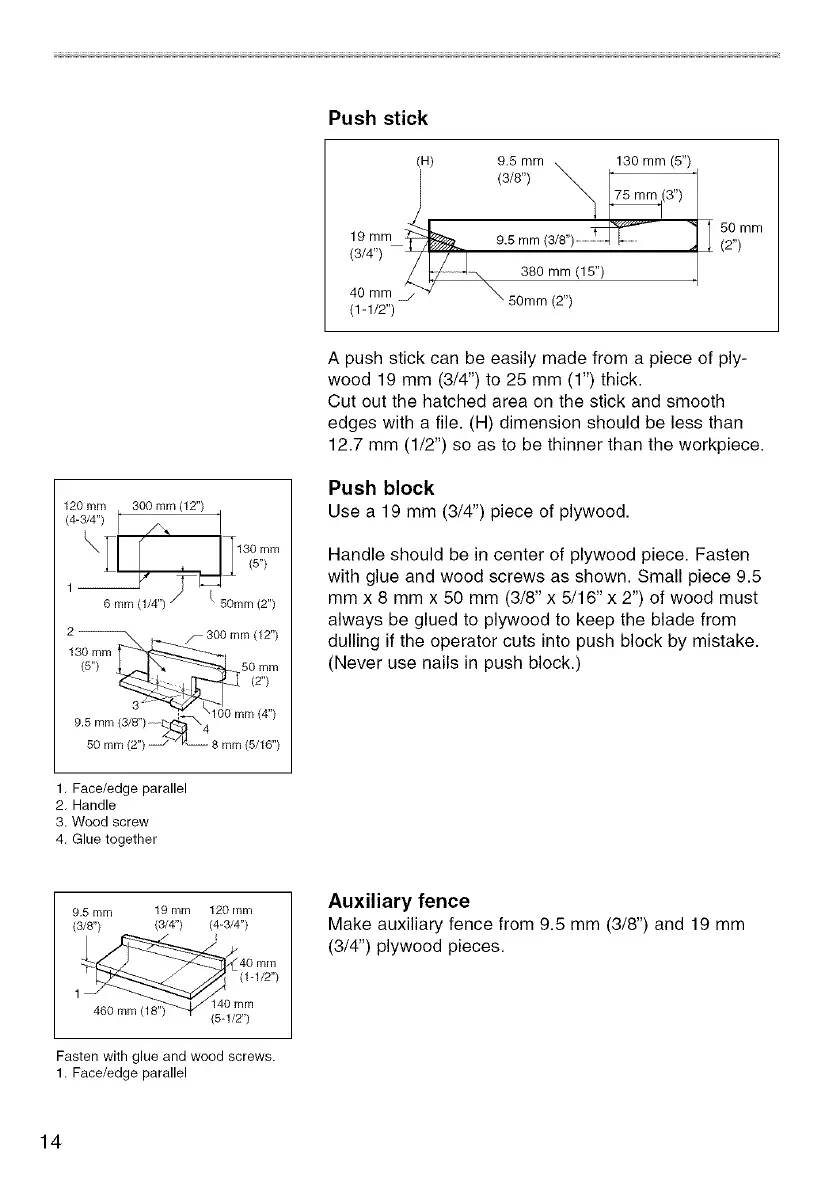

Push stick
(H) 9.5 mrn _ 130 rnm (5")
19 mm@_ 9.5 mm I (50')mm
(3/4) _'i;'_"_ g80 mm (15")
Y \
A push stick can be easily made from a piece of ply-
wood 19 mm (3/4") to 25 mm (1") thick.
Cut out the hatched area on the stick and smooth
edges with a file. (H) dimension should be less than
12.7 mm (1/2") so as to be thinner than the workpiece.
Push block
Use a 19 mm (3/4") piece of plywood.
Handle should be in center of plywood piece. Fasten
with glue and wood screws as shown. Small piece 9.5
mm x 8 mm x 50 mm (3/8" x 5/16" x 2") of wood must
always be glued to plywood to keep the blade from
dulling if the operator cuts into push block by mistake.
(Never use nails in push block.)
9.5mm 19mm 120ram
(3/8") (3/4") (4-3/4")
140 mm
460 mm (18" (5-1/2")
Fasten with glue and wood screws.
1. Face/edge parallel
Auxiliary fence
Make auxiliary fence from 9.5 mm (3/8") and 19 mm
(3/4") plywood pieces.
14
