15. Use bits of the correct shank diameter
suitable for the speed of the tool.
16. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
17. Always use the correct dust mask/respirator
for the material and application you are
working with.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.

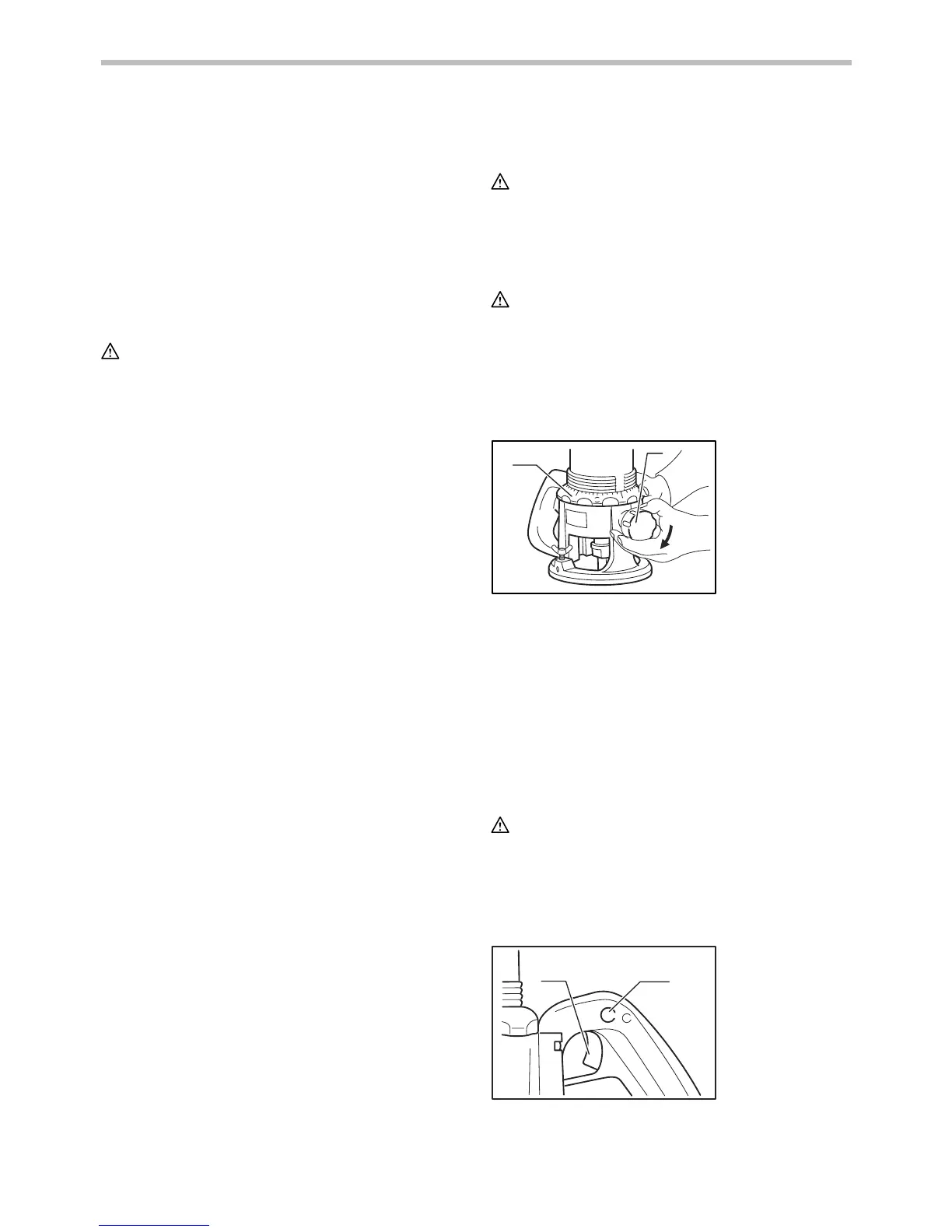

Adjusting the depth of cut
CAUTION:
• Since excessive cutting may cause overload of the
motor or difficulty in controlling the tool, the depth
of cut should not be more than 15 mm at a pass
when cutting grooves. When you wish to cut
grooves more than 15 mm deep, make several
passes with progressively deeper bit settings.
1
2
005028
Place the tool on a flat surface. Turn the scale ring until it
makes contact with the base. Loosen the knob. Turn the
scale ring until the bit just touches the flat surface. Tighten
the knob. Place the tool upside down and turn the scale
ring counterclockwise (when viewing the tool from the top)
until the desired depth of cut is obtained. One full turn of
the scale ring is equal to 5 mm change in depth setting.
Loosen the knob and move the tool base until it makes
contact with the scale ring. Then tighten the knob securely.
Switch action
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
• Make sure that the shaft lock is released before
the switch is turned on.
12
005029
1. Switch trigger
2. Lock button
1. Scale ring
2. Knob
