10

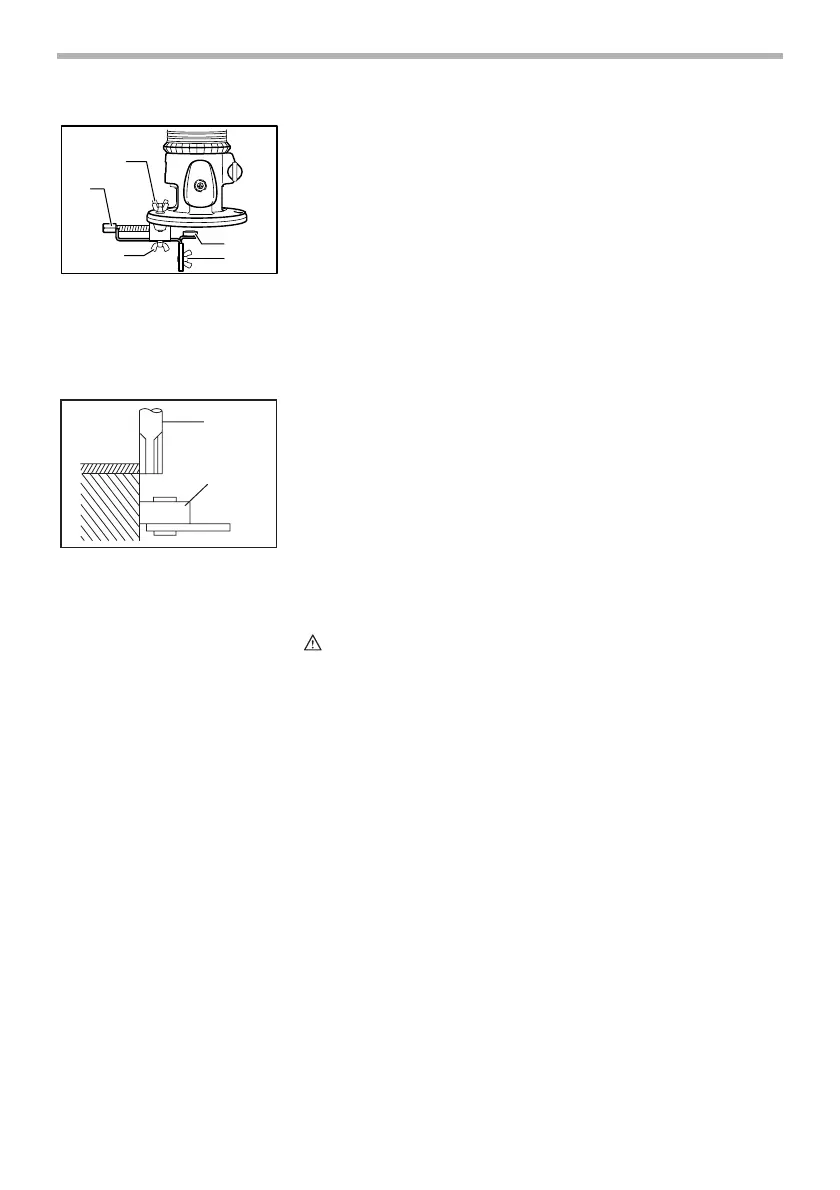

Install the trimmer guide on the tool base with the wing bolt
(B). Loosen the wing bolt (A) and adjust the distance
between the bit and the trimmer guide by turning the fine
adjusting screw (1.5 mm or 1/16” per turn). At the desired
distance, tighten the wing bolt (A) to secure the trimmer
guide in place. When adjusting the guide roller up or down,
loosen the wing nut (C). After adjusting it, tighten the wing
nut (C) securely.
When cutting, move the tool with the guide roller riding the
side of the workpiece.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY, repairs, car-
bon brush inspection and replacement, any other mainte-
nance or adjustment should be performed by Makita
Authorized or Factory Service Centers, always using Makita
replacement parts.
1. Wing bolt (B)
2. Fine adjusting screw
3. Wing bolt (A)
4. Wing nut (C)
5. Guide roller
1
2
3
4
5
003699
1. Bit
2. Guide roller
1
2
003701
