Makita 4101RH User Manual

12

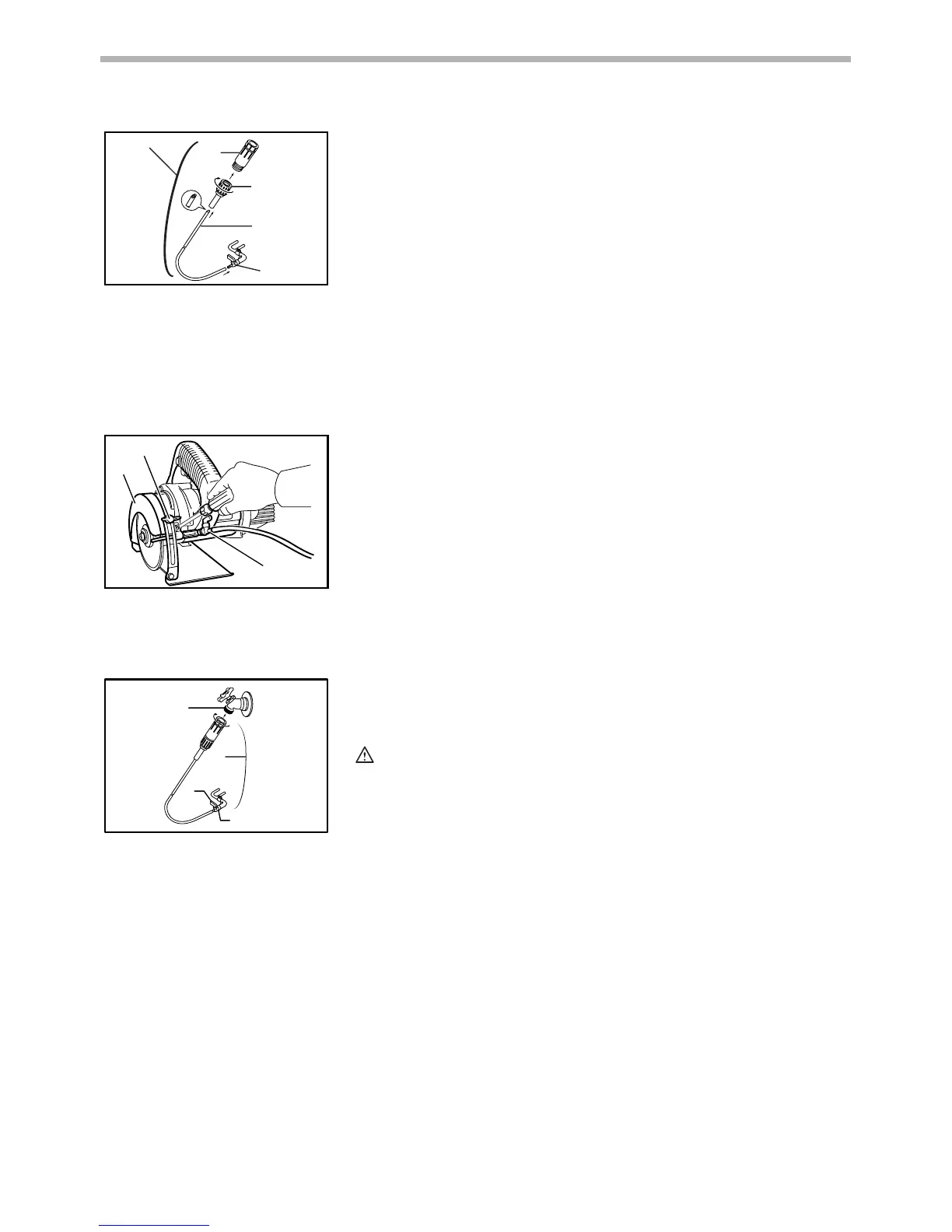

Assemble the above parts hand tight as follows.
1. Cut the vinyl tube at an angle for easier insertion. Push
the end of the vinyl tube into the end of the adaptor using
a combination pushing and twisting motion.
2. Screw the pressure regulator tight on a the adaptor.
3. Connect the vinyl tube firmly to the water pipe.
Installing water pipe
First, unplug the tool. Loosen the wing bolt on the depth
guide and move the base down. Install the water pipe on the
blade case using the screw.
Screw the pressure regulator tight on a faucet.
Adjust the amount of water flow by simply adjusting the water
cock.
CAUTION:
• Do not connect the adaptor directly to a faucet. If you do
so, the vinyl tube may come off the water pipe during
operation.
1. Pressure regulator assembly
2. Pressure regulator
3. Adaptor
4. Vinyl tube
5. Water pipe
1
2
3
4
5
003535
1. Wing bolt
2. Blade case
3. Water pipe
3
1
2
003536
1. Faucet
2. Pressure regulator assembly
3. Water cock
4. Water pipe
1
3
4
2
003537

Makita 4101RH Specifications

General

Input power	860 W
Power source	AC
AC input voltage	230 V
Noise level	109 dB
Diamond disc	Yes
Diamond disc diameter	110 mm
Diamond disc bore size	20 mm
Idle speed (max)	13800 RPM
Cutting depth (45º)	21 mm
Cutting depth (90º)	34 mm
Product color	Black, Blue

Weight and Dimensions

Depth	171 mm
Width	220 mm
Weight	5200 g
