10

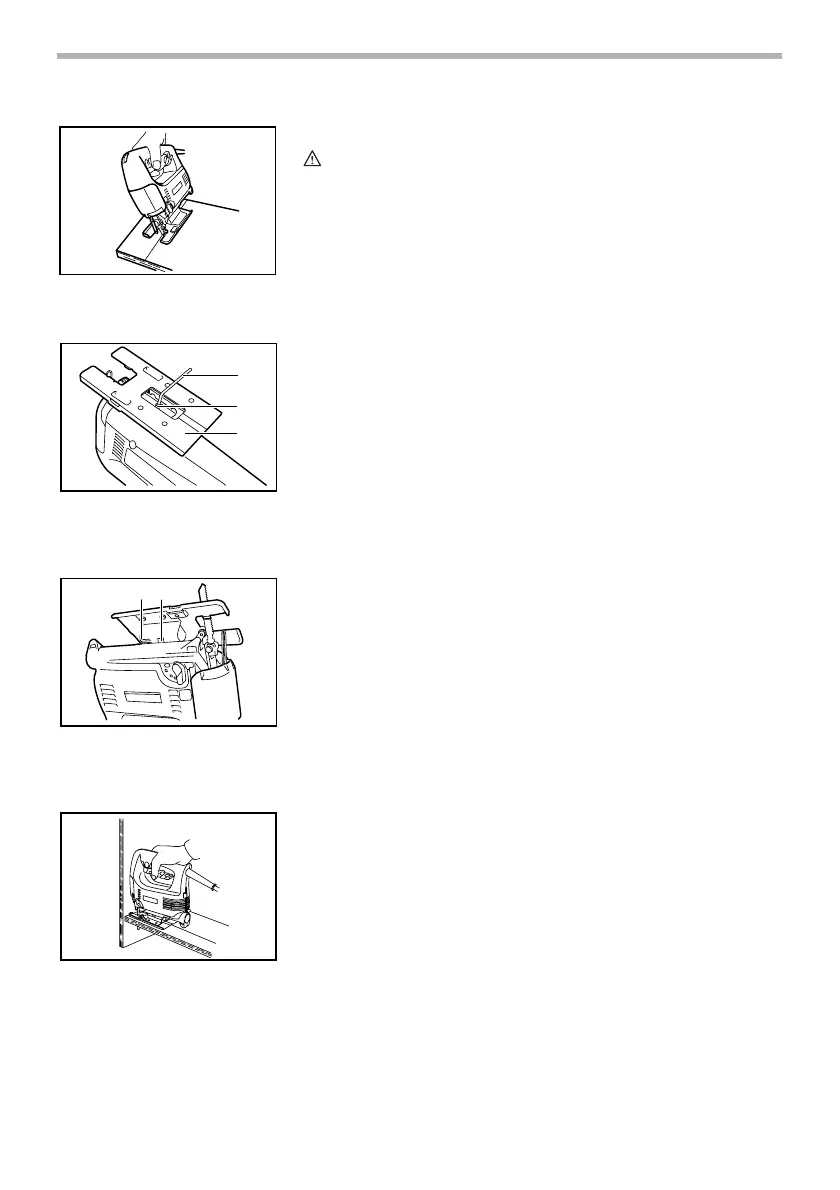

Bevel cutting
CAUTION:
• Always be sure that the tool is switched off and
unplugged before tilting the base.
• Raise the dust cover all the way before making bevel
cuts.
With the base tilted, you can make bevel cuts at any angle
between 0° and 45° (left or right).
Loosen the bolt on the back of the base with the hex wrench.
Move the base so that the bolt is positioned in the center of
the cross-shaped slot in the base.
Tilt the base until the desired bevel angle is obtained. The
edge of the motor housing indicates the bevel angle by grad-
uations. Then tighten the bolt to secure the base.
Front flush cuts
Loosen the bolt on the back of the base with the hex wrench
and slide the base all the way back. Then tighten the bolt to
secure the base.
002749
1. Hex wrench
2. Bolt
3. Base
1
2
3
002748
1. Graduation
2. Edge
1
2
002750
002757
