Makita 5007N User Manual

10 ENGLISH

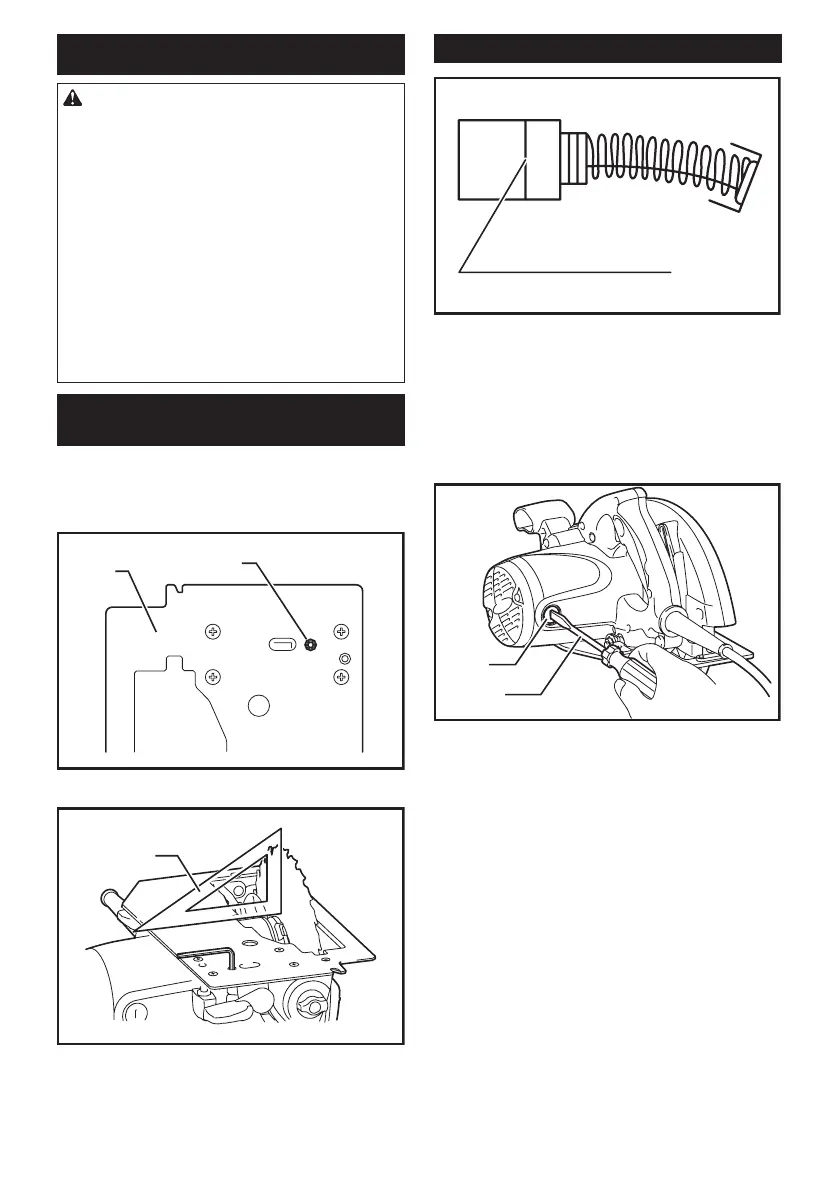

MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspec-
tion or maintenance.
• Clean out the guard to ensure there is no
accumulated sawdust and chips which
may impede the operation of the guarding
system. A dirty guarding system may limit the
proper operation which could result in serious
personalinjury.Themosteffectivewayto
accomplish this cleaning is with compressed air.
If the dust is being blown out of the guard,
be sure the proper eye and breathing protec-
tion is used.
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
may result.
Adjusting for accuracy of 90° cut
(vertical cut)
Thisadjustmenthasbeenmadeatthefactory.Butifitis
off,adjusttheadjustingscrewwithahexwrenchwhile
squaring the blade with the base using a triangular rule,
try square, etc.
1
2
►1. Base 2.Adjustingscrew
1
►1. Triangular rule
Replacing carbon brushes
1
►1. Limit mark
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1
2
►1. Brush holder cap 2. Screwdriver
To maintain product SAFETY and RELIABILITY, repairs,
anyothermaintenanceoradjustmentshouldbeper-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.

Makita 5007N Specifications

General

Blade Diameter	7-1/4 inches
Amperage	15 Amps
No Load Speed	5, 800 RPM
Arbor Size	5/8 inches
Max Cutting Capacity at 90°	2-3/8 inches
Max Cutting Capacity at 45°	1-3/4 inches
Bevel Capacity	0° - 45°
Weight	11.1 lbs
Voltage	120V
