FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.

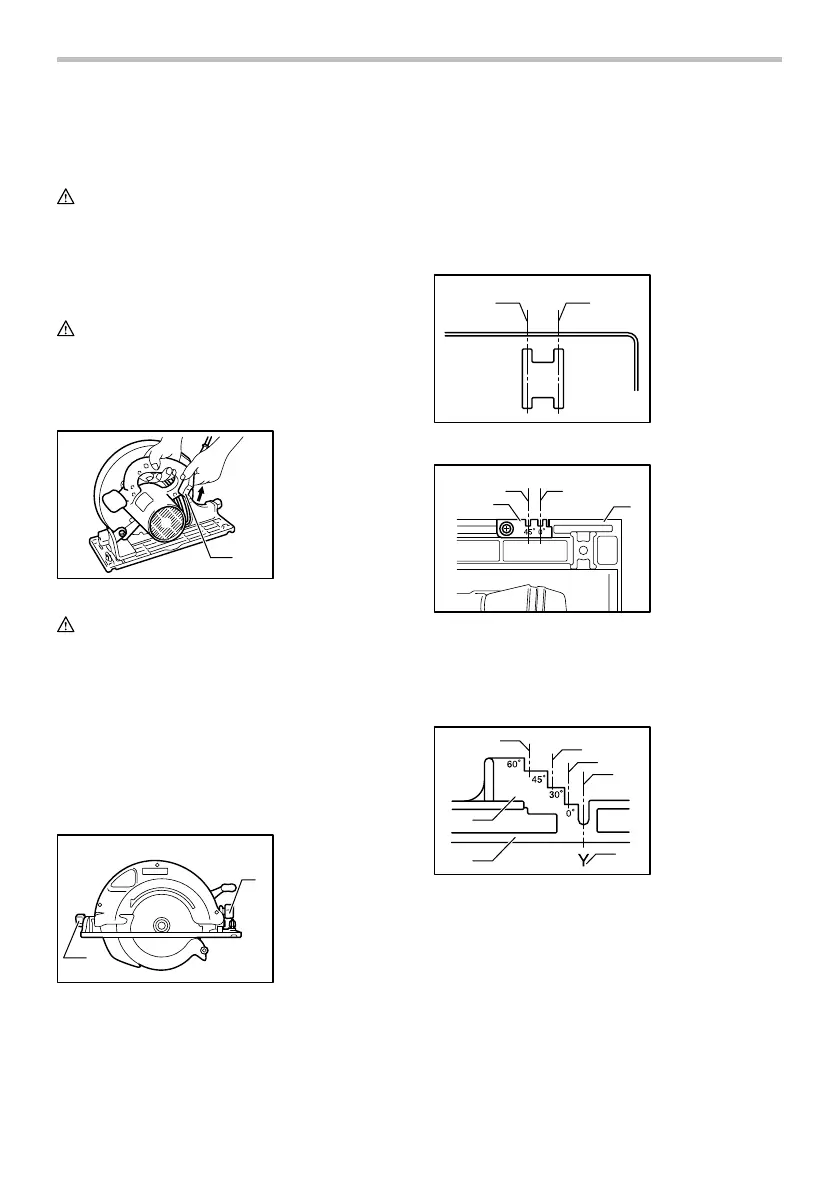

Adjusting depth of cut
1
005392
CAUTION:
• After adjusting the depth of cut, always tighten the
lever securely.
Loosen the lever on the depth guide and move the base
up or down. At the desired depth of cut, secure the base
by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
than one blade tooth projects below workpiece. Using
proper cut depth helps to reduce potential for dangerous
KICKBACKS which can cause personal injury.
Bevel cutting
1
1
005393
For model 5603R, 5703R,5705R, 5903R, 5103R
Loosen the clamping screws in front and back, and tilt
the tool to the desired angle for bevel cuts (0° - 45°).
Secure the clamping screws tightly in front and back
after making the adjustment.
For model 5143R
Loosen the clamping screw in front and tilt the tool to the
desired angle for bevel cuts (0 - 60°). Secure the
clamping screw tightly in front after making the
adjustment.
Sighting
For 5603R, 5703R,5705R, 5903R, 5103R
1
AB
5603R,5703R,5705R
005394
1
2
BA
5903R/5103R
005449
For straight cuts, align the A position on the front of the
base with your cutting line. For 45° bevel cuts, align the
B position with it.
For 5143R
1
2
3
4
5
6
7
005396
Align your sight line with either the 0° notch for straight
cutting or the 30° notch for 30° angle cuts or the 45°
notch for 45° angle cuts or the 60° notch for 60° angle
cuts.
1. 60 ﾟ angle cuts
2. 45 ﾟ angle cuts
3. 30 ﾟ angle cuts
4. Straight cuts
5. Blade
6. Base
7. Top guide
1. Top guide
2. Base
1. Base plate
1. Clamping screw
1. Lever
