6
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

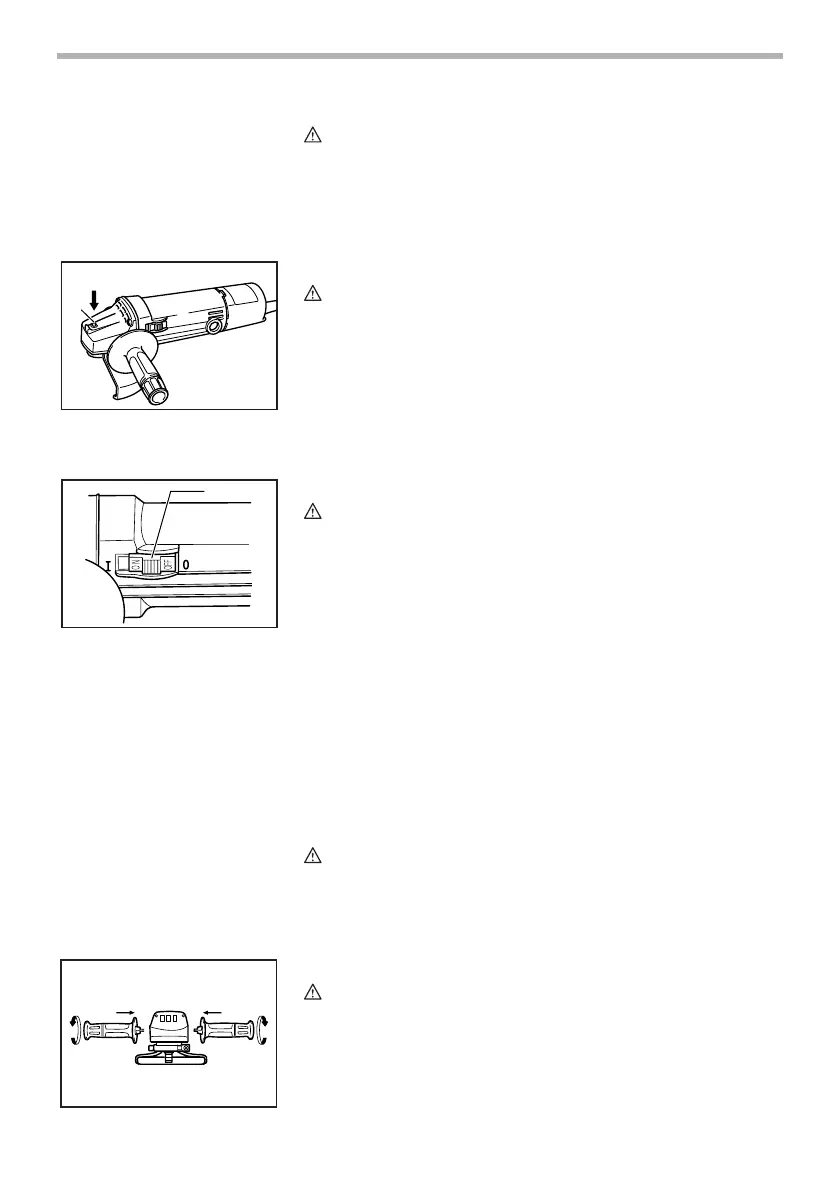

Shaft lock
CAUTION:
• Never actuate the shaft lock when the spindle is moving.
The tool may be damaged.
Press the shaft lock to prevent spindle rotation when install-
ing or removing accessories.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the
slide switch actuates properly and returns to the “OFF”
position when the rear of the slide switch is depressed.
• Switch can be locked in “ON” position for ease of
operator comfort during extended use. Apply caution
when locking tool in “ON” position and maintain firm
grasp on tool.
To s tar t t he t ool , s li d e th e sl ide swi tch t o wa rd t he “I (ON)”
position. For continuous operation, press the front of the
slide switch to lock it.
To s top t he t o ol , pre ss th e re a r of t he s lid e sw i tc h , th en sl ide
it toward the “O (OFF)” position.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing side grip (handle)
CAUTION:
• Always be sure that the side grip is installed securely
before operation.
Screw the side grip securely on the position of the tool as
shown in the figure.
1. Shaft lock
1
001023
1. Slide switch
1
001037
001054
