Makita 9556NB User Manual

10
Operation with abrasive cut-off / diamond
wheel (optional accessory)
1
2
3
4
010855

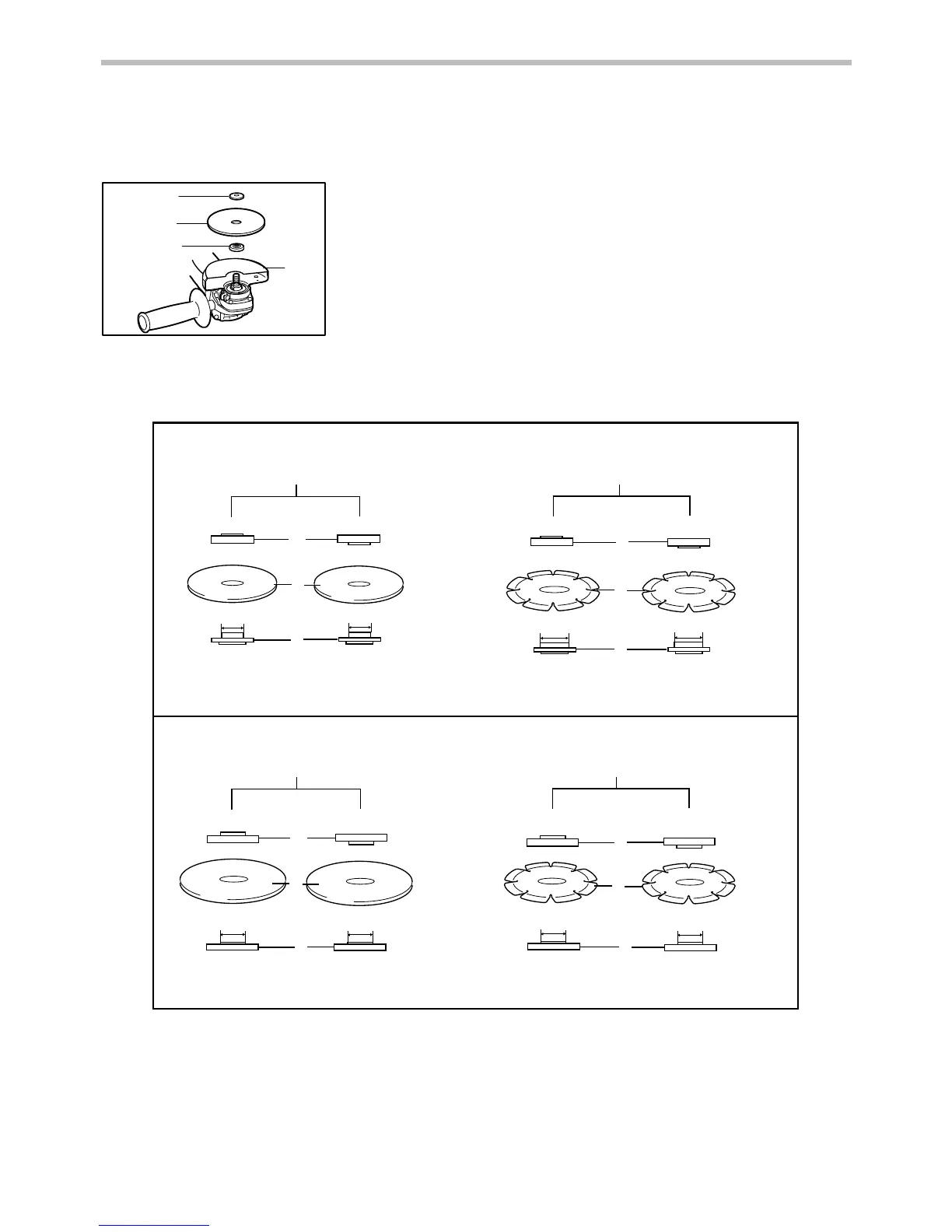

The direction for mounting the lock nut and the inner
flange varies by wheel thickness.
Refer to the table below.
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
16 mm (5/8")
20 mm (13/16")
22.23 mm (7/8")
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
22.23 mm (7/8")
22.23 mm (7/8") 22.23 mm (7/8")
16 mm (5/8")
20 mm (13/16")
1
2
3
1
4
3
4.3.2.1.
100 mm (4")
115 mm (4 - 1/2") / 125 mm (5")
1
2
3
1
4
3
Lock nut Abrasive cut-off wheel Inner flange Diamond wheel
4.3.2.1. Lock nut Abrasive cut-off wheel Inner flange Diamond wheel
010848
1. Lock nut
2. Abrasive cut-off
wheel/diamond
wheel
3. Inner flange
4. Wheel guard for
abrasive cut-off
wheel/diamond
wheel

Makita 9556NB Specifications

General

Power Source	Corded Electric
Power Consumption/Input	840 W
No Load Speed	11, 000 RPM
Spindle Thread	M14
Cable Length	2.5 m (8.2 ft)
Disc/Wheel Diameter	125 mm
Weight/Net Weight	1.8 kg
Dimensions/Overall Length	280 mm
