Makita 9566CV User Manual

8
1
001136

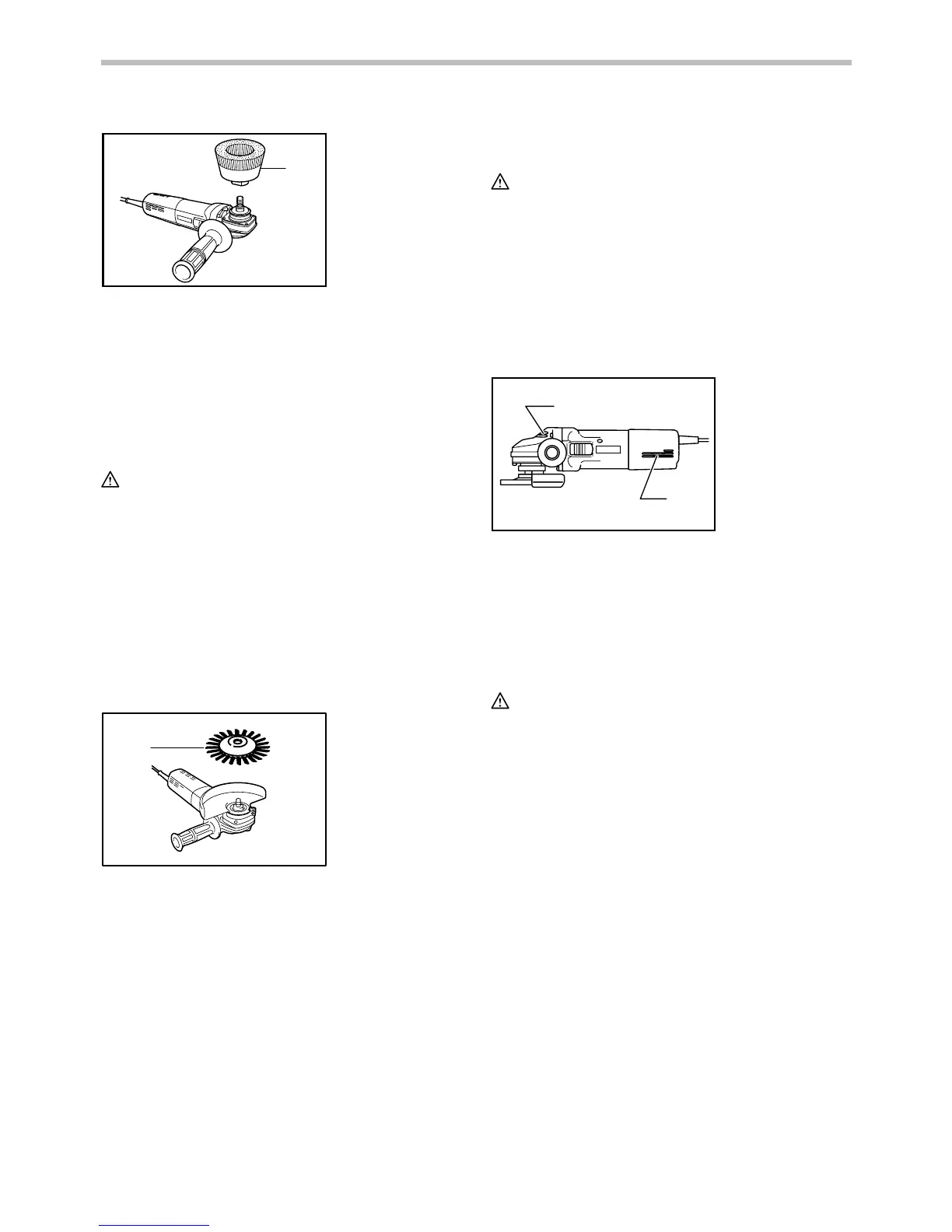

Unplug tool and place it upside down allowing easy
access to spindle. Remove any accessories on spindle.
Thread wire cup brush onto spindle and tighten with
supplied wrench. When using brush, avoid applying too
much pressure which causes over bending of wires,
leading to premature breakage.
Operation with wire wheel brush
(optional accessory)
CAUTION:
• Check operation of wire wheel brush by running
tool with no load, insuring that no one is in front of
or in line with the wire wheel brush.
• Do not use wire wheel brush that is damaged, or
which is out of balance. Use of damaged wire
wheel brush could increase potential for injury from
contact with broken wires.
• ALWAYS use guard with wire wheel brushes,
assuring diameter of wheel fits inside guard. Wheel
can shatter during use and guard helps to reduce
chances of personal injury.
1
007472
Unplug tool and place it upside down allowing easy
access to spindle. Remove any accessories on spindle.
Thread wire wheel brush onto spindle and tighten with
the wrenches.
When using wire wheel brush, avoid applying too much
pressure which causes over bending of wires, leading to
premature breakage.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
The tool and its air vents have to be kept clean. Regularly
clean the tool's air vents or whenever the vents start to
become obstructed.
1
2
007473
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized or Factory Service Centers, always
using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
1. Exhaust vent
2. Inhalation vent
1. Wire wheel
brush
1. Wire cup brush

Makita 9566CV Specifications

General

Brand	Makita
Model	9566CV
Category	Grinder
Language	English

Summary

General Power Tool Safety Warnings

Work Area Safety

Ensures safe operation by maintaining a clean and hazard-free work environment.

Electrical Safety

Guidelines for preventing electric shock, including proper plug use and cord care.

Personal Safety

Recommendations for operator alertness, protective equipment, and proper attire.

SPECIFICATIONS

Power Tool Use and Care

General Use and Care

Guidelines for proper tool operation, maintenance, cord safety, and storage.

Cutting Tool Care

Emphasis on keeping cutting tools sharp, clean, and well-maintained.

Accessory Usage

Instructions for using accessories and tool bits according to conditions.

Service and Repair

Tool Servicing and Maintenance

Guidance on professional repairs, parts, lubrication, and keeping parts clean.

SPECIFIC SAFETY RULES

Guard and Accessory Safety

Rules regarding the use of guards, accessories, and ensuring they meet speed recommendations.

Electrical Hazard Precautions

Precautions when tool may contact hidden wiring or its own cord.

Wheel Safety

Checks for wheel cracks, proper flanges, and avoiding wood blades.

FUNCTIONAL DESCRIPTION

Shaft Lock

Mechanism to prevent spindle rotation during accessory changes.

Speed Adjusting Dial

Control for varying the tool's rotating speed.

Switch Action

How to operate the slide switch for starting, stopping, and locking the tool.

Electronic Functions

Features like constant speed control and soft start for enhanced operation.

ASSEMBLY

Installing Side Grip

Guidance on securely fitting the side handle for better control.

Installing Wheel Guard

Procedure for fitting the wheel guard for safety.

Installing Abrasive Cut-off Wheel

Steps for mounting abrasive cut-off wheels and associated hardware.

Installing Depressed Center Grinding Wheel

Instructions for mounting grinding wheels or multi-discs with the correct guard.

OPERATION

Operation with Abrasive Cut-off Wheel

Specific instructions for using cut-off wheels, including angle and pressure.

Grinding and Sanding Operation

Techniques for performing grinding and sanding tasks with the tool.

Operation with Wire Cup Brush

Instructions for using wire cup brushes, including pressure and pre-operation checks.

Operation with Wire Wheel Brush

MAINTENANCE

OPTIONAL ACCESSORIES

MAKITA LIMITED ONE YEAR WARRANTY
