9 ENGLISH

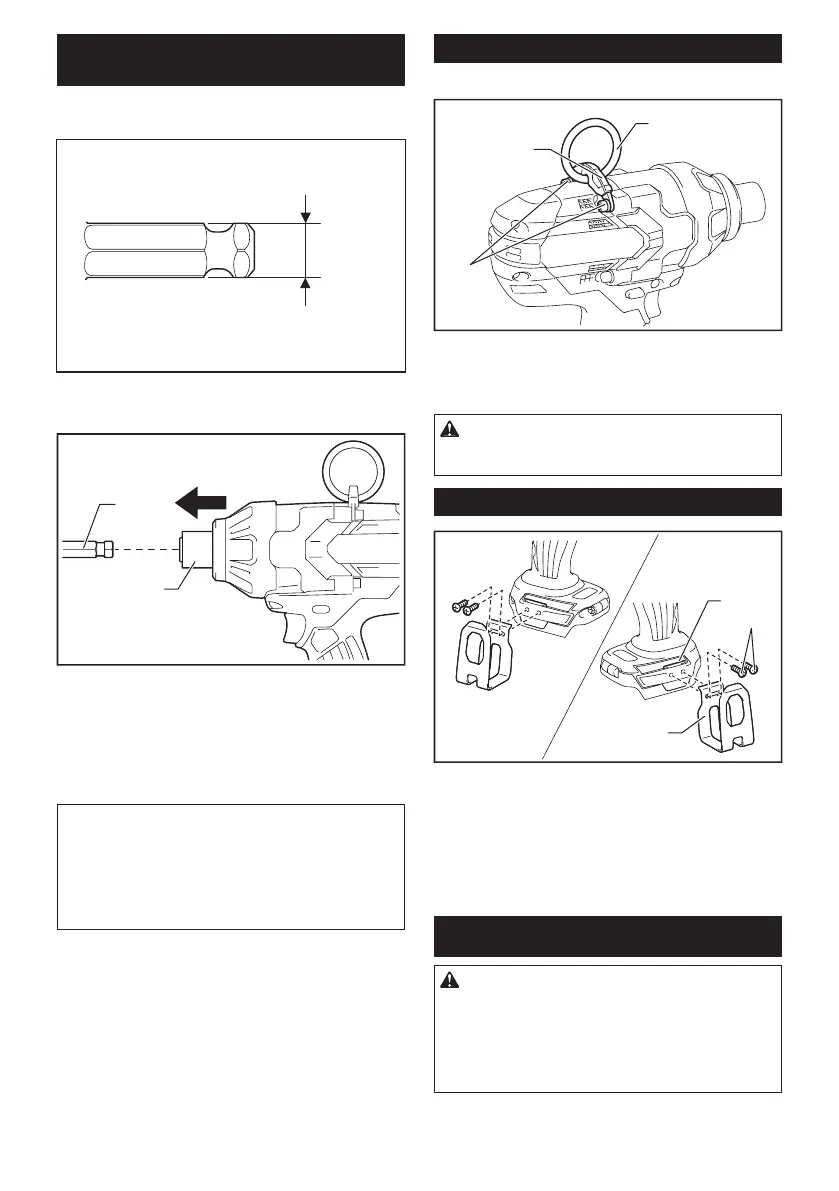

Installing or removing drill bit/
socket adapter
Only for Model XWT09, XWT09XV (optional
accessory)
A
A=11.2 mm (7/16″)
Use only the drill bit/socket adapter shown in the gure.
Do not use any other drill bit/socket adapter.
1
2
► 1. Drill bit 2. Sleeve
To install the drill bit, pull the sleeve in the direction of
the arrow and insert the drill bit into the sleeve as far as
it will go.
Then release the sleeve to secure the drill bit.
To remove the drill bit, pull the sleeve in the direction of
the arrow and pull the drill bit out.
NOTE: If the drill bit is not inserted deep enough into
the sleeve, the sleeve will not return to its original
position and the drill bit will not be secured. In this
case, try re-inserting the drill bit according to the
instructions above.
NOTE: After inserting the drill bit, make sure that it is
rmly secured. If it comes out, do not use it.
Ring
Only for Model XWT09, XWT09XV
2
1
3
► 1. Bracket 2. Ring 3. Screws
The ring is convenient for hanging the tool with hoist.
First, place the rope through the ring. Then hang the
tool up to the air with hoist.
CAUTION: Before using the ring, always
make sure that the bracket and ring are secured
and not damaged.
Installing hook
1
2
3
► 1. Groove 2. Hook 3. Screw
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool. To install
the hook, insert it into a groove in the tool housing
on either side and then secure it with two screws. To
remove, loosen the screws and then take it out.
OPERATION
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If you can see the
red indicator on the upper side of the button, it is not
locked completely. Insert it fully until the red indicator
cannot be seen. If not, it may accidentally fall out of
the tool, causing injury to you or someone around
you.
