8
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.

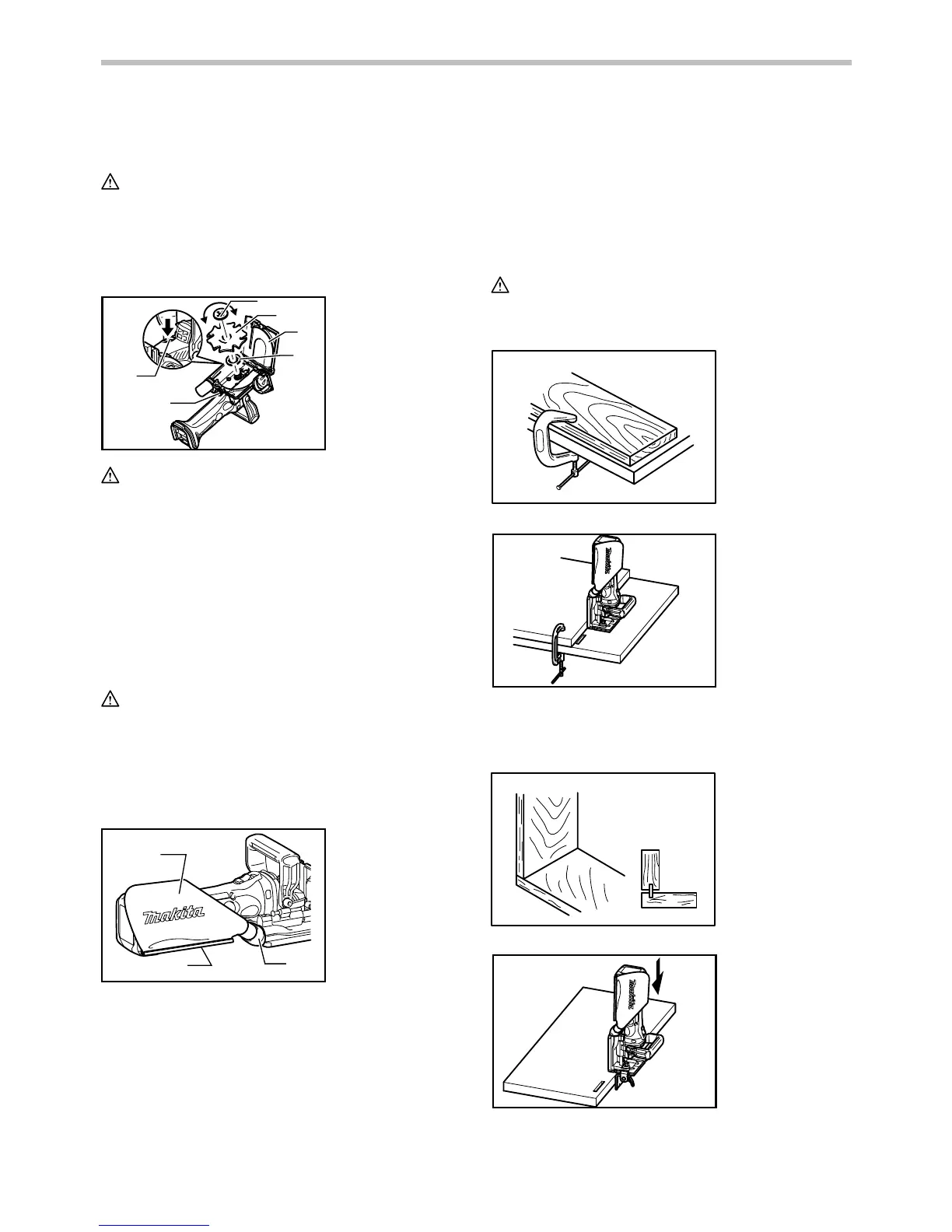

Removing or installing the blade
1
2
3
4
5
6
7
8
012502
CAUTION:
•
When installing the plate joiner blade, mount the inner
flange with the side marked "22" facing toward you.
To remove the blade, loosen the clamp screw and open
the blade cover. Push the shaft lock and loosen the lock
nut using the lock nut wrench. To install the blade, first
mount the inner flange.
Then mount the blade and the lock nut. Securely tighten
the lock nut using the lock nut wrench. Close the blade
cover and tighten the clamp screw to secure the blade
cover.
CAUTION:
• Use only Makita lock nut wrench provided to
remove or install the blade.
• Always check the depth of groove after replacing
the blade. Reajust it if necessary.
Dust bag
1
2
3
012503
To attach the dust bag, fit it onto the dust nozzle. If the
dust bag becomes an obstacle to your work, turn the
dust nozzle to change the dust bag position.
When the dust bag is about half full, switch off and remove
the battery cartridge. Remove the dust bag from the tool
and pull the bag's fastener out. Empty the dust bag by
tapping it lightly to remove as much of the dust as possible.
NOTE:
• If you connect a Makita vacuum cleaner to your
plate joiner, more efficient and cleaner operations
can be performed.
OPERATION
How to make joints
WARNING:
• Always clamp the workpiece to the workbench
before each operation.
004589
012504
Corner Joint (Fig. A)
Fig. A
004584
012505
1. Dust bag
2. Fastener
3. Dust nozzle
1. Lock nut
2. Plate joiner
blade
3. Blade cover
4. Inner flange
5. Clamp screw
6. Shaft lock
7. Loosen
8. Tighten
