12

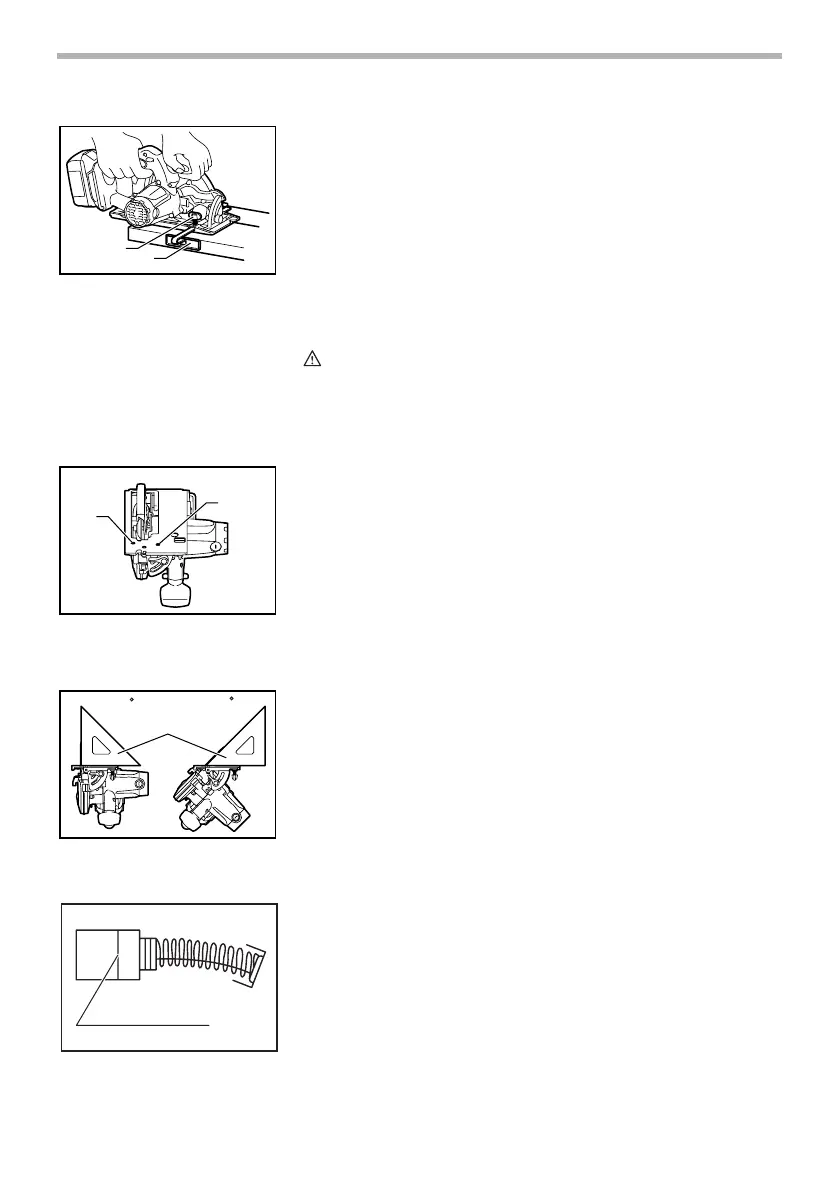

Rip fence (Guide rule)
The handy rip fence allows you to do extra-accurate straight cuts. Simply slide
the rip fence up snugly against the side of the workpiece and secure it in posi-
tion with the screw on the front of the base. It also makes repeated cuts of uni-
form width possible.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the battery cartridge is
removed before attempting to perform inspection or maintenance.
Adjusting for accuracy of 90° and 45° cut (vertical and 45° cut)
This adjustment has been made at the factory. But if it is off, adjust the adjust-
ing screws with a hex wrench while inspecting 90° or 45° the blade with the
base using a triangular rule or square rule, etc.
Replacing carbon brushes
Remove and check the carbon brushes regularly. Replace when they wear
down to the limit mark. Keep the carbon brushes clean and free to slip in the
holders. Both carbon brushes should be replaced at the same time. Use only
identical carbon brushes.
1. Clamping screw
2. Rip fence (Guide rule)
1
2
006710
1. Adjusting screw for 45°
2. Adjusting screw for 90°
1. Triangular rule
1
2
006713
1
90
45
006714
1. Limit mark
1
001145
