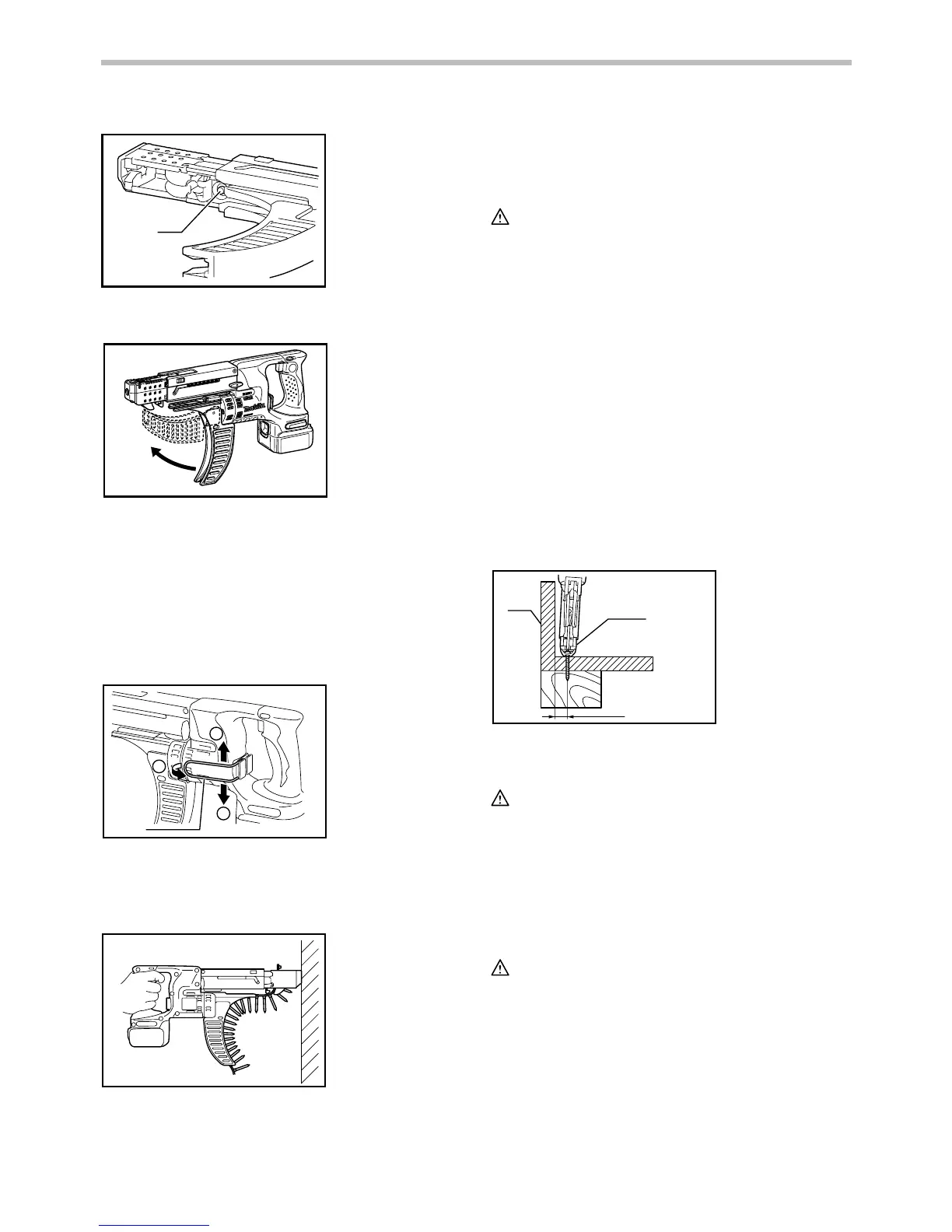

Folding screw guide
008289
Screw guide is foldable. Folding the screw guide allows
space used for storage to be minimal.
Carry hook
The carry hook is convenient for temporarily hooking the
tool. It can be installed on either side of the tool.
When removing the carry hook, widen it by pressing its
right ends ON BOTH SIDES in the directions of arrow (1)
and raise it in the direction of the arrow (2).
1
1
2
1
008262
OPERATION
Driving operation
008263
Switch on the tool by pulling the switch trigger. Hold the
tool squarely and firmly up against the driving surface. A
screw will be automatically carried to the driving position
and fastened.
CAUTION:
• Always check the bit carefully for wear before
driving operations. Replace a worn bit or poor
fastening may result.
• Always hold the tool squarely against the driving
surface. Holding it at an angle may damage the
screw heads and cause wear on the bit. This may
also lead to poor fastening.
• Always keep the tool firmly against the driving
surface until the driving is over. Failure to do so
may cause insufficient fastening of screws.
• Be careful not to drive a screw onto another screw
already fastened.
• Do not operate the tool without screws. It will
damage the driving surface.
• Do not apply oil or grease on the sliding surface of
the feeder box.
Driving in corner
1
2
15mm(5/8")
008284
This tool can be used to drive at a position 15 mm (5/8")
away from the wall as shown in the figure.
CAUTION:
• Driving at a position closer than 15 mm (5/8") to the
wall or driving with the stopper base in contact with
the wall may damage the screw heads and cause
wear on the bit. This may also lead to poor
fastening of screws and malfunction of the tool.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
1. Wall
2. Stopper base
1. Hook
1. Reverse button

Makita DFR550 Specifications

General

Idle speed (max)	4000 RPM
Screw diameter (max)	- mm
Maximum torque (hard applications)	12 N⋅m
Maximum torque (soft applications)	7 N⋅m
Reverse	-
Product color	Black, Green
Power source	Battery
Battery voltage	18 V

Weight and Dimensions

Depth	424 mm
Width	80 mm
Height	238 mm
Weight	2100 g
