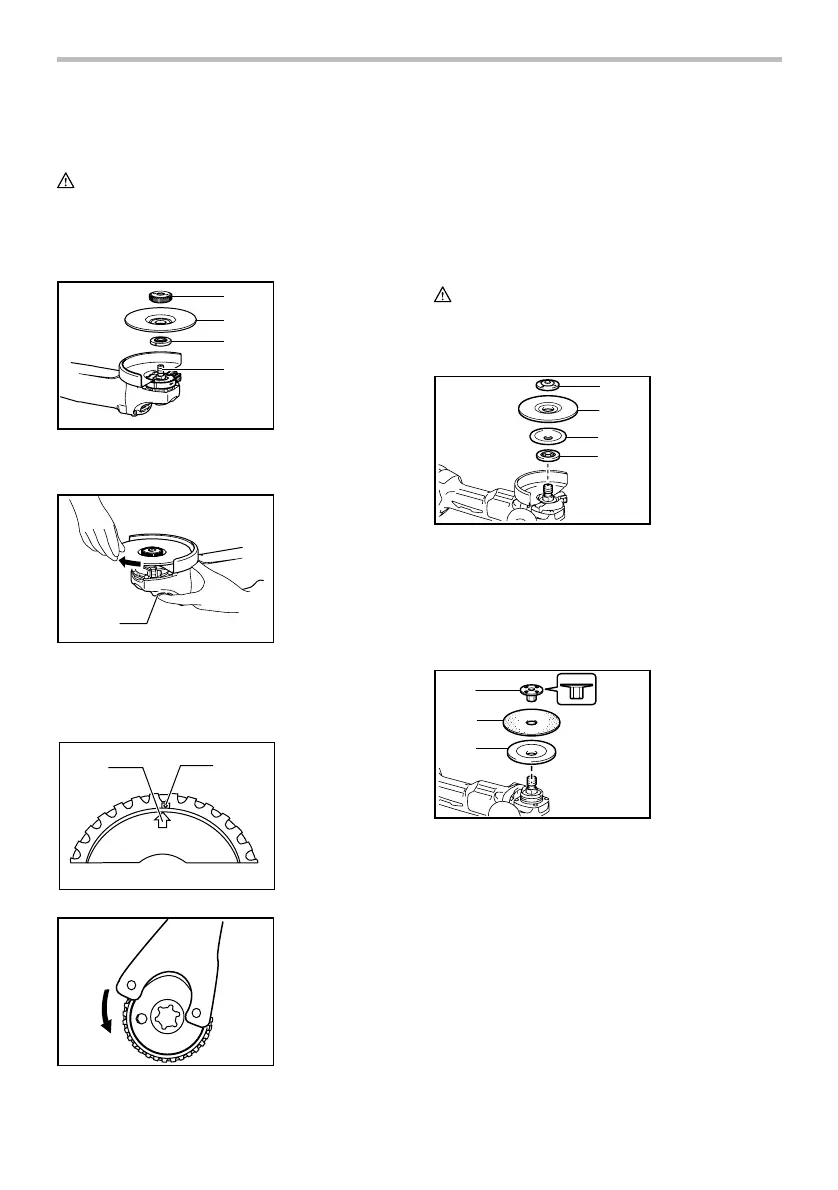

Installing or removing Ezynut
(optional accessory)
CAUTION:
• Do not use Ezynut with Super Flange or angle
grinder with “F” on the end of the model No. Those
flanges are so thick that the entire thread cannot
be retained by the spindle.
1
2
4
3
012772
Mount inner flange, abrasive wheel and Ezynut onto the
spindle so that Makita Logo on Ezynut faces outside.
1
012773
Press shaft lock firmly and tighten Ezynut by turning the
abrasive wheel clockwise as far as it turns.
Turn the outside ring of Ezynut counterclockwise to
loosen.
1
2
010846
010863
NOTE:
• Ezynut can be loosened by hand as long as the
arrow points the notch. Otherwise a lock nut
wrench is required to loosen it. Insert one pin of
the wrench into a hole and turn Ezynut
counterclockwise.
Installing or removing flex wheel
(optional accessory)
WARNING:
• Always use supplied guard when flex wheel is on
tool. Wheel can shatter during use and guard
helps to reduce chances of personal injury.
1
2
3
4
015091
Follow instructions for depressed center grinding
wheel/Multi-disc but also use plastic pad over wheel.
See order of assembly on accessories page in this
manual.
Installing or removing abrasive disc
(optional accessory)
1
2
3
015092
Mount the rubber pad onto the spindle. Fit the disc on
the rubber pad and screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
To remove the disc, follow the installation procedure in
reverse.
NOTE:
• Use sander accessories specified in this manual.
These must be purchased separately.
1. Sanding lock nut
2. Abrasive disc
3. Rubber pad
1. Lock nut
2. Flex wheel
3. Plastic pad
4. Inner flange
1. Arrow
2. Notch
1. Shaft lock
1. Ezynut
2. Abrasive wheel
3. Inner flange
4. Spindle
