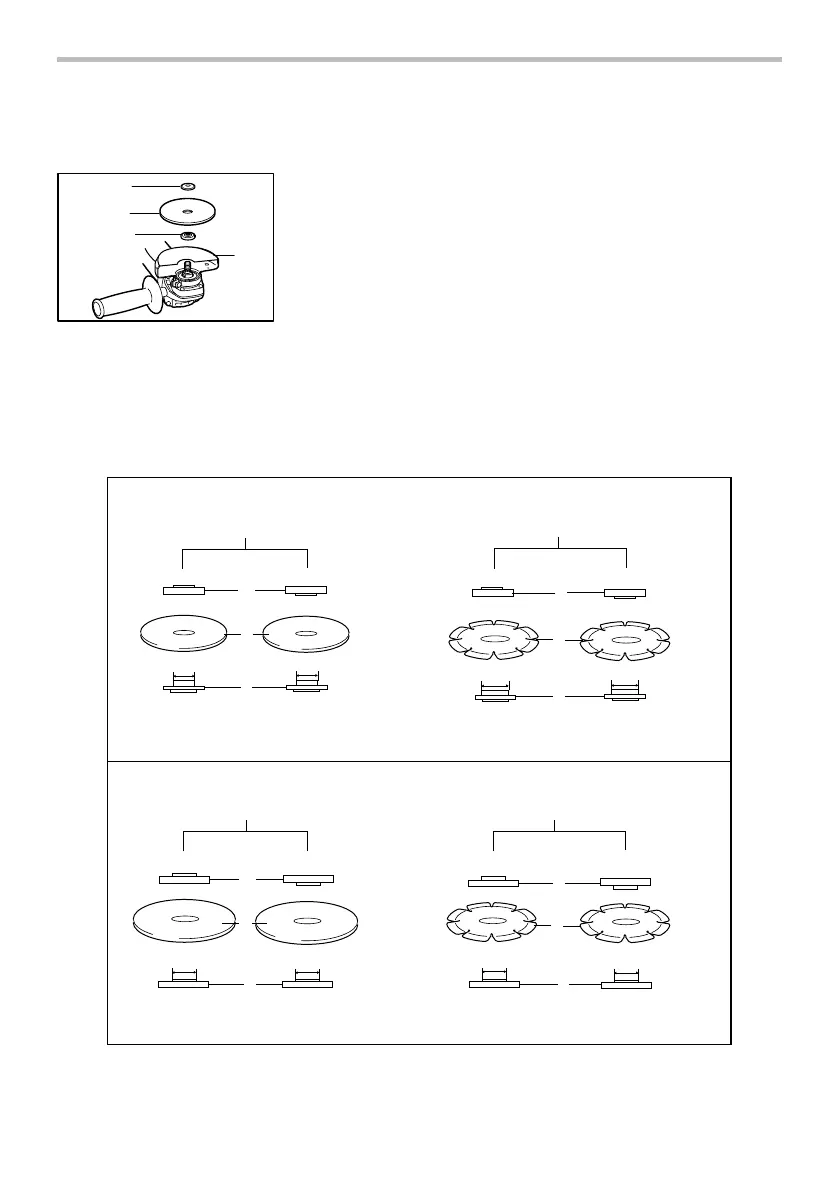

Operation with abrasive cut-off /
diamond wheel (optional accessory)
1
2
3
4
010855
Remove the battery cartridge from the tool and place it
upside down allowing easy access to spindle. Mount the
inner flange and abrasive cut-off / diamond wheel onto
the spindle. Tighten the lock nut securely with supplied
wrench. The direction for mounting the lock nut and the
inner flange varies by wheel thickness.
Refer to the table below.
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
16 mm (5/8")
20 mm (13/16")
22.23 mm (7/8")
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
22.23 mm (7/8")
22.23 mm (7/8") 22.23 mm (7/8")
16 mm (5/8")
20 mm (13/16")
1
2
3
1
4
3
4.3.2.1.
100 mm (4")
115 mm (4 - 1/2") / 125 mm (5")
1
2
3
1
4
3
Lock nut Abrasive cut-off wheel Inner flange Diamond wheel
4.3.2.1. Lock nut Abrasive cut-off wheel Inner flange Diamond wheel
010848
1. Lock nut
2. Abrasive cut-off
wheel/diamond
wheel
3. Inner flange
4. Wheel guard for
abrasive cut-off
wheel/diamond
wheel

Makita DGA504 Specifications

General

Voltage	18V
Wheel Diameter	125 mm
No Load Speed	8500 RPM
Battery Type	Lithium-Ion
Spindle Thread	M14 x 2
Cable Length	N/A (Cordless)
Arbor Size	22.23 mm (7/8")
Length	362 mm (14-1/4")
