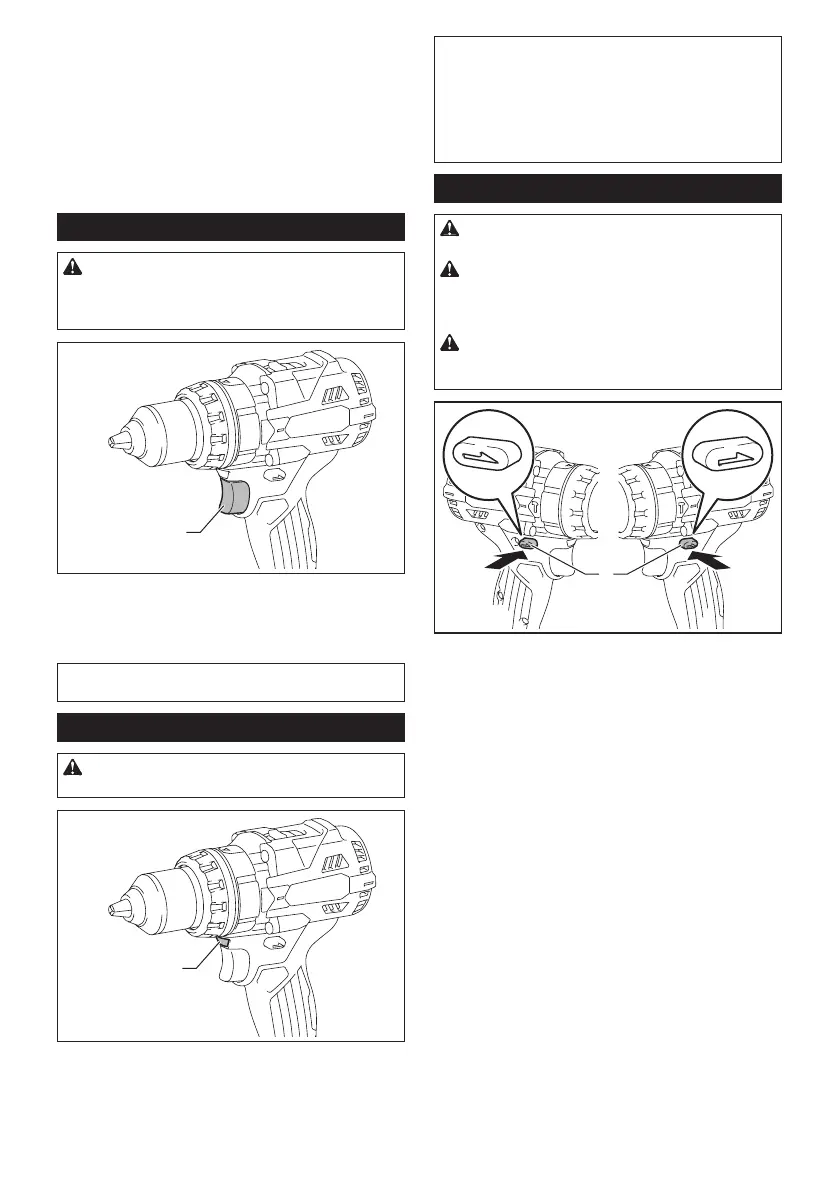

7 ENGLISH
Overheat protection
This protection works when the tool or battery is over-
heated. In this situation, let the tool and battery cool
before turning the tool on again.
Overdischarge protection
This protection works when the remaining battery
capacity gets low. In this situation, remove the battery
from the tool and charge the battery.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
1
► 1. Switch trigger
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
NOTE: The tool automatically stops if you keep pull-
ing the switch trigger for about 6 minutes.
Lighting up the front lamp
CAUTION: Do not look in the light or see the
source of light directly.
1
► 1. Lamp
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
The lamp goes out approximately 10 seconds after
releasing the switch trigger.
NOTE: When the tool is overheated, the tool stops
automatically and the lamp starts ashing. In this
case, release the switch trigger. The lamp turns o󰀨 in
one minute.
NOTE: Use a dry cloth to wipe the dirt o󰀨 the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
CAUTION: When not operating the tool,
always set the reversing switch lever to the neu-
tral position.
1
AB
► 1. Reversing switch lever
This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the
A side for clockwise rotation or from the B side for coun-
terclockwise rotation.
When the reversing switch lever is in the neutral posi-
tion, the switch trigger cannot be pulled.

Makita DHP486Z Specifications

General

Drilling	Yes
Motor type	Brushless
Product design	Pistol grip drill
Torque (max)	135 N⋅m
Torque (min)	60 N⋅m
Number of gears	2
Torque settings	21
Idle speed (max)	2100 RPM
Idle speed (min)	550 RPM
Sound power level	95 dB
Chuck capacity (max)	13 mm
Chuck capacity (min)	1.5 mm
Sound pressure level	84 dB
Sound level uncertainty	3 dB
Impact rate (high speed)	31500 bpm
Drilling diameter in wood (max)	50 mm
Product color	Black, Blue

Weight and Dimensions

Depth	178 mm
Width	81 mm
Height	265 mm
Weight	2700 g
