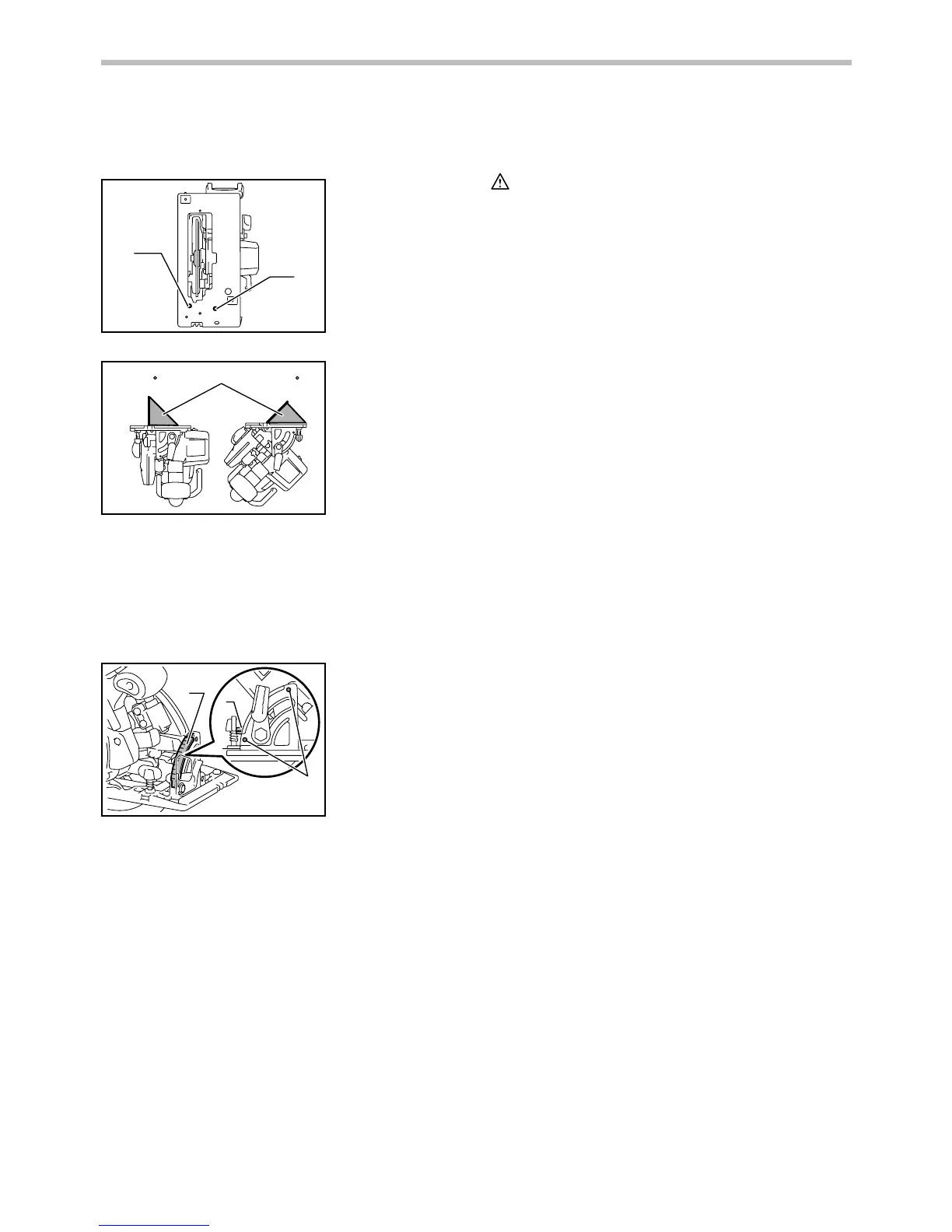

Adjusting for accuracy of 0° and 45° cut
(vertical and 45° cut)
1
2
015113
1
0 45
015114
This adjustment has been made at the factory. But if it is
off, adjust the adjusting screws with a hex wrench while
inspecting 0° or 45° the blade with the base using a
triangular rule or square rule, etc. Use the 45° stopper
for adjusting 45° angle.
Adjusting bevel guide
1
2
3
015115
The bevel guide has been factory adjusted. But if it is off,
you can adjust it as the following procedure.
To adjust the bevel guide, loosen the two screws. Align
the 0° line on the bevel guide with the guide on the base
when the base is set to 0° angle.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Saw blades
• Rip fence (Guide rule)
• Guide rail
• Guide rail adapter
• Rule bar
• Dust nozzle
• Hex wrench
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Bevel guide
2. Screw
3. Guide
1. Triangular rule
1. Adjusting screw
for 45 ﾟ
2. Adjusting screw
for 0 ﾟ

Makita DHS680 Specifications

General

Blade Diameter	165 mm
Max Cutting Capacity at 90°	57 mm
Max Cutting Capacity at 45°	41 mm
Max Cutting Capacity at 50°	37 mm
No Load Speed	5, 000 RPM
Voltage	18 V
Weight	3.3 kg
Arbor	20 mm
Bevel Capacity	0° - 50°
