Makita DJV180Z User Manual

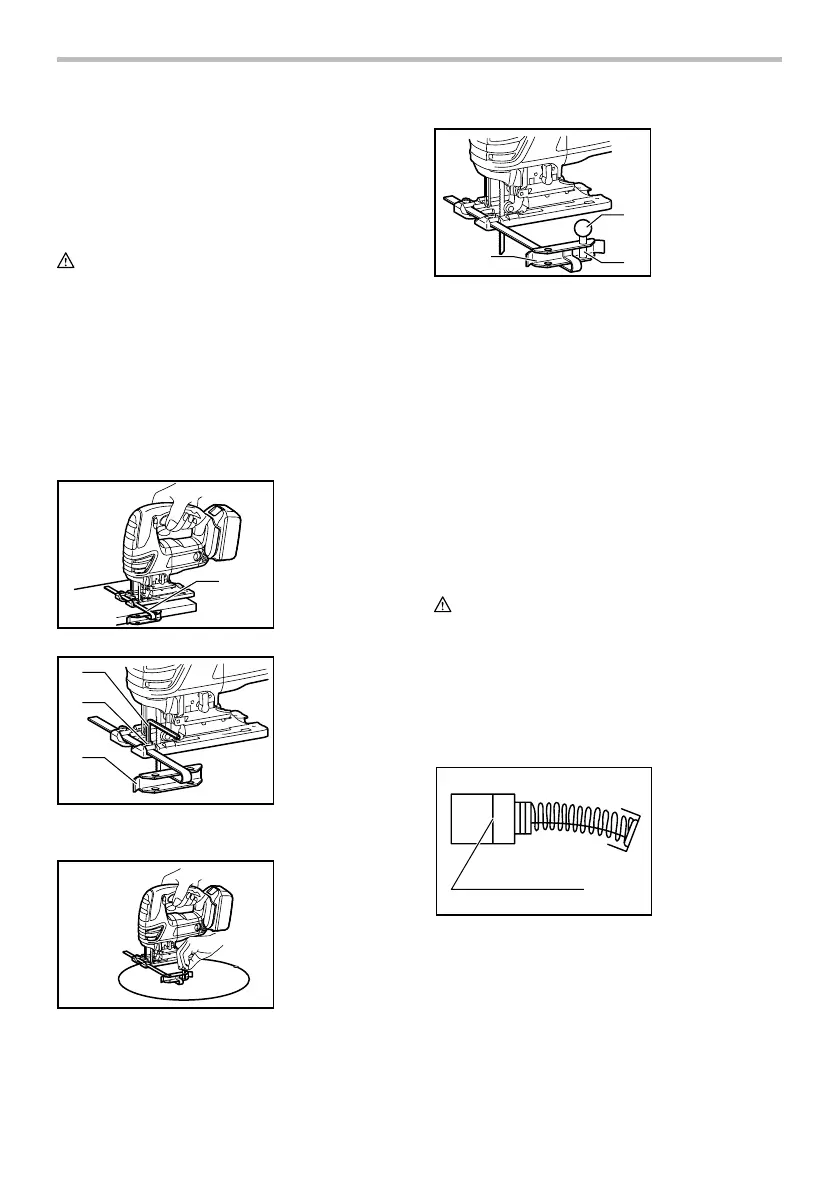

10
Metal cutting
Always use a suitable coolant (cutting oil) when cutting
metal. Failure to do so will cause significant blade wear.
The underside of the workpiece can be greased instead
of using a coolant.
Rip fence set (optional accessory)
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing accessories.
1. Straight cuts
When repeatedly cutting widths of 160 mm (6-5/16") or
less, use of the rip fence will assure fast, clean, straight
cuts. To install, insert the rip fence into the rectangular
hole on the side of the tool base with the fence guide
facing down. Slide the rip fence to the desired cutting
width position, then tighten the bolt to secure it.
1
014146
1
2
3
007497
2. Circular cuts
014147
1
2
3
007499
When cutting circles or arcs of 170 mm (6-11/16") or less
in radius, install the rip fence as follows.
• Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.
Insert the circular guide pin through either of the
two holes on the fence guide. Screw the threaded
knob onto the pin to secure the pin.
• Now slide the rip fence to the desired cutting radius,
and tighten the bolt to secure it in place. Then
move the base all the way forward.
NOTE:
• Always use blades No. B-17, B-18, B-26 or B-27
when cutting circles or arcs.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1. Rip fence
1. Limit mark
1. Fence guide
2. Threaded knob
3. Circular guide
pin
1. Hex wrench
2. Bolt
3. Fence guide

Makita DJV180Z Specifications

General

Input power	- W
Power source	Battery
Battery voltage	18 V
Handle type	Top handle
Product color	Black, Blue
Bevel settings	45 - left, 45 - right °
Orbital action	-
Adjustable speed	Yes
Stroke length	26 mm
Cutting depth in wood	135 mm
Cutting depth in steel	10 mm
Idle stroke rate (max)	2600 spm
Idle stroke rate (min)	0 spm
Cutting depth in aluminum	20 mm

Weight and Dimensions

Weight	2800 g
