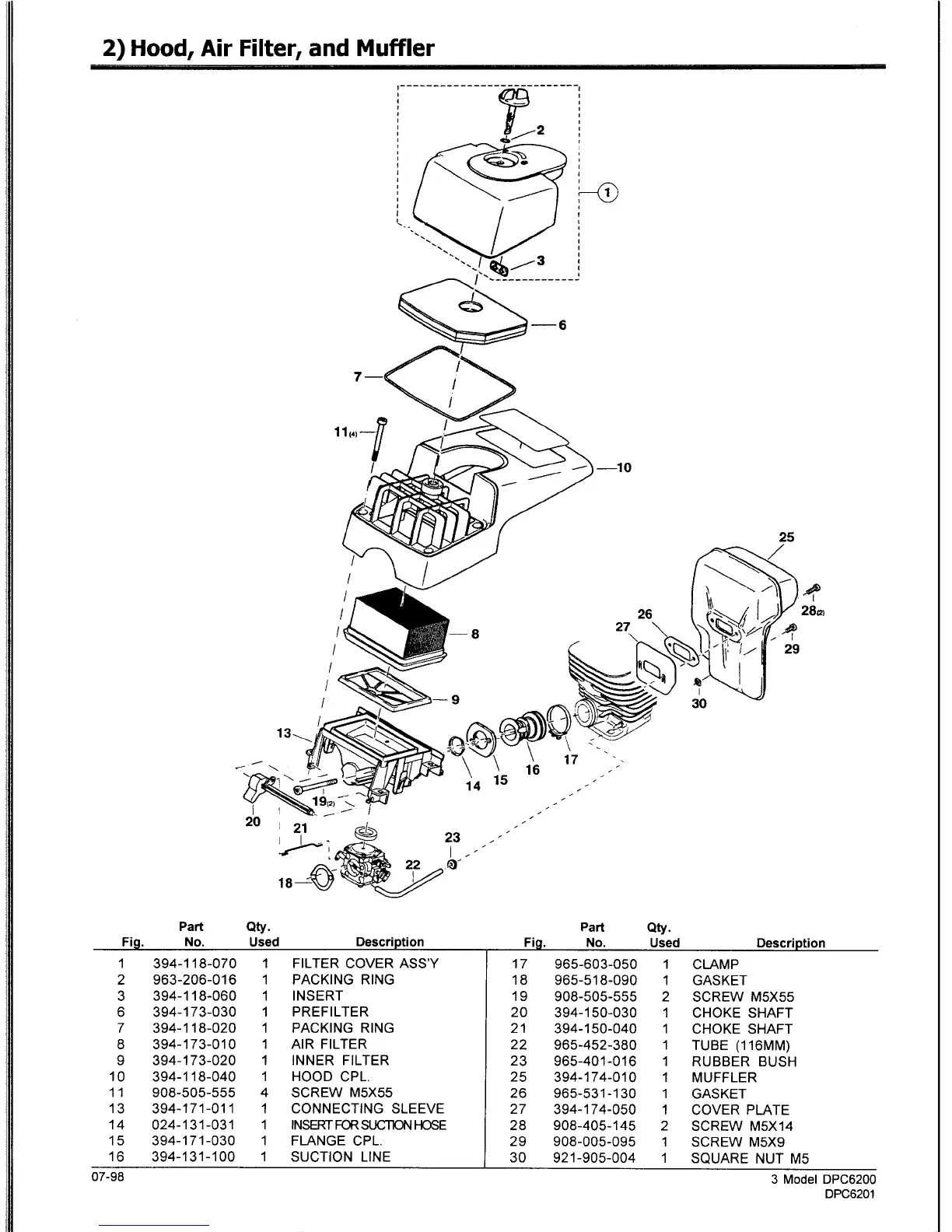

2) Hood, Air Filter, and Muffler
25
Part Qty.
Fig. No. Used Description
1 394-1 18-070
1 FILTER COVER ASS’Y
2 963-206-016 1 PACKING RING
3 394-118-060
1 INSERT
6 394-173-030
1 PREFILTER
7 394-118-020
1 PACKING RING
8 394-173-010 1 AIR FILTER
9 394-173-020
1 INNER FILTER
10 394-118-040
1 HOOD CPL.
11 908-505-555
4 SCREW M5X55
13 394-171-01 1
1 CONNECTING SLEEVE
14 024-131-031 1 INSERTFORSUCTIONHOSE
15 394-171-030
1 FLANGE CPL.
16 394-131-100
1 SUCTION LINE
07-98
Part Qty.
17 965-603-050 1 CLAMP
18 965-518-090 1 GASKET
19 908-505-555 2 SCREW M5X55
20 394-150-030 1 CHOKE SHAFT
21 394-150-040 1 CHOKE SHAFT
22 965-452-380 1 TUBE (116MM)
23 965-401-016 1 RUBBER BUSH
25 394-174-010
1 MUFFLER
26 965-531-130 1 GASKET
27 394-174-050
1 COVER PLATE
28 908-405-145 2 SCREW M5X14
29 908-005-095 1 SCREW M5X9
30 921-905-004 1 SQUARE NUT
M5
Fig. No. Used Description
3 Model DPC6200
DPC6201
