Makita DRV250 User Manual

7 ENGLISH
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
The lamp goes out approximately 10 seconds after
releasing the switch trigger.
NOTE: Use a dry cloth to wipe the dirt off the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing the head
assembly

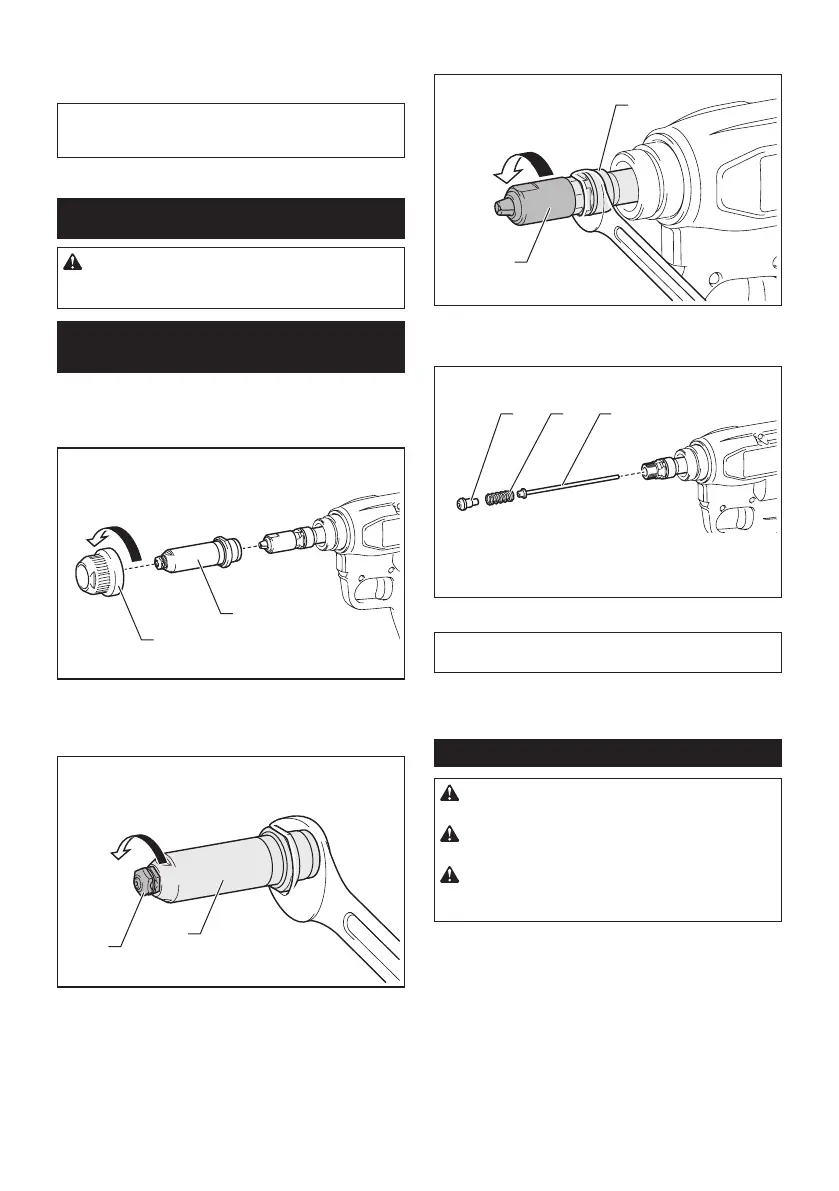

To remove the head assembly, follow the steps below.
1. Loosen the nut of the head, and then remove the
head.
1
2
► 1. Nut 2. Head
2. Loosen the nose piece with a wrench while hold-
ing the head with another wrench.
1
2
► 1. Nose piece 2. Head
3. Loosen the jaw case with a wrench while holding
the joint with another wrench.
1
2
► 1. Jaw case 2. Joint
4. Remove the jaw pusher, spring, and pipe.
123
► 1. Jaw pusher 2. Spring 3. Pipe
NOTICE: When installing the jaw pusher, be sure
to attach the spring to the jaw pusher.
To install the head assembly, perform the removal pro-
cedure in reverse. Be sure to tighten the jaw case and
nose piece with two wrenches rmly.
Hook
CAUTION: Always remove the battery when
hanging the tool with the hook.
CAUTION: Never hook the tool at high loca-
tion or on potentially unstable surface.
CAUTION: When hanging the tool with the
hook, hang it carefully. Otherwise, the tool may drop
and cause an injury.

Makita DRV250 Specifications

General

Type	Hand gun
Product color	Blue
Rivet sizes supported	2.4, 3, 3.2, 4, 4.8, 5, 6, 6.3, 6.4 mm
Rechargeable battery	Yes

Weight and Dimensions

Depth	323 mm
Width	80 mm
Height	287 mm
Weight	2400 g
