Makita DS4010 Technical Information

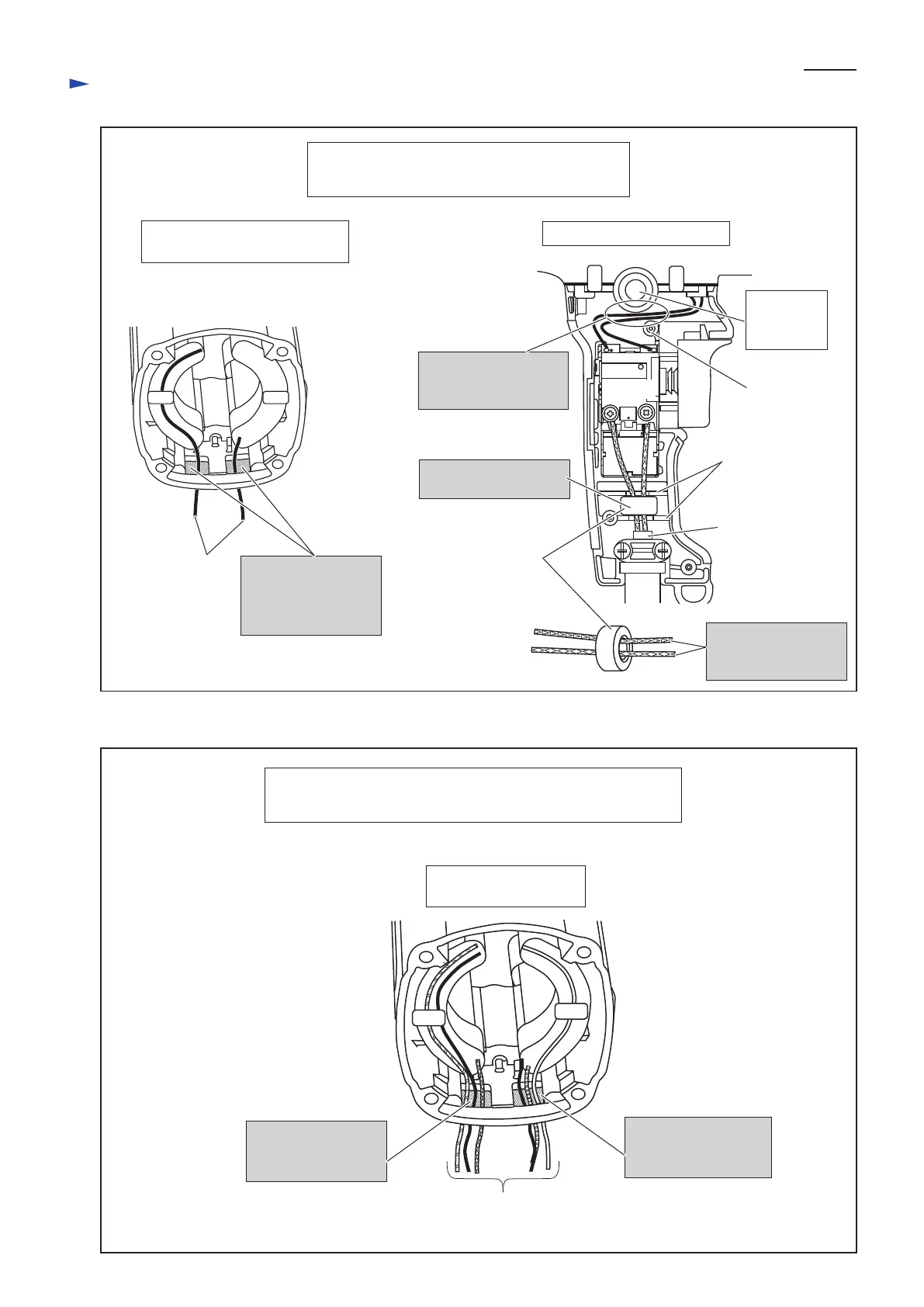

Fig.D-2A
to Switch
Motor Housing viewed
from Armature fan side
Pass Field lead wires
(black, purple, white)
through this hole.
Pass Field lead wires
(blue, orange, black)
through this hole.
P 7/ 8
Fig.D-2
Wiring diagram
To Switch terminals
M1 and M2
Motor Housing
viewed from Armature fan side
Pass Field lead wires
(black) through the
hole to connect
them to Switch.
Switch
Line filter
Pass the Lead wires
of Power supply cord
through Line filter.
Rib
Pass field lead wires
(black) between Boss
and rib of Hole.
Put Line filter between
Ribs.
Boss
Hole for
storing
Chuck key
Switch handle cover set (L)
Power supply cord
Models DS4011 and DS5000 with reverse switch,
without variable speed control
Model DS4010 without reverse switch,
with variable speed control
