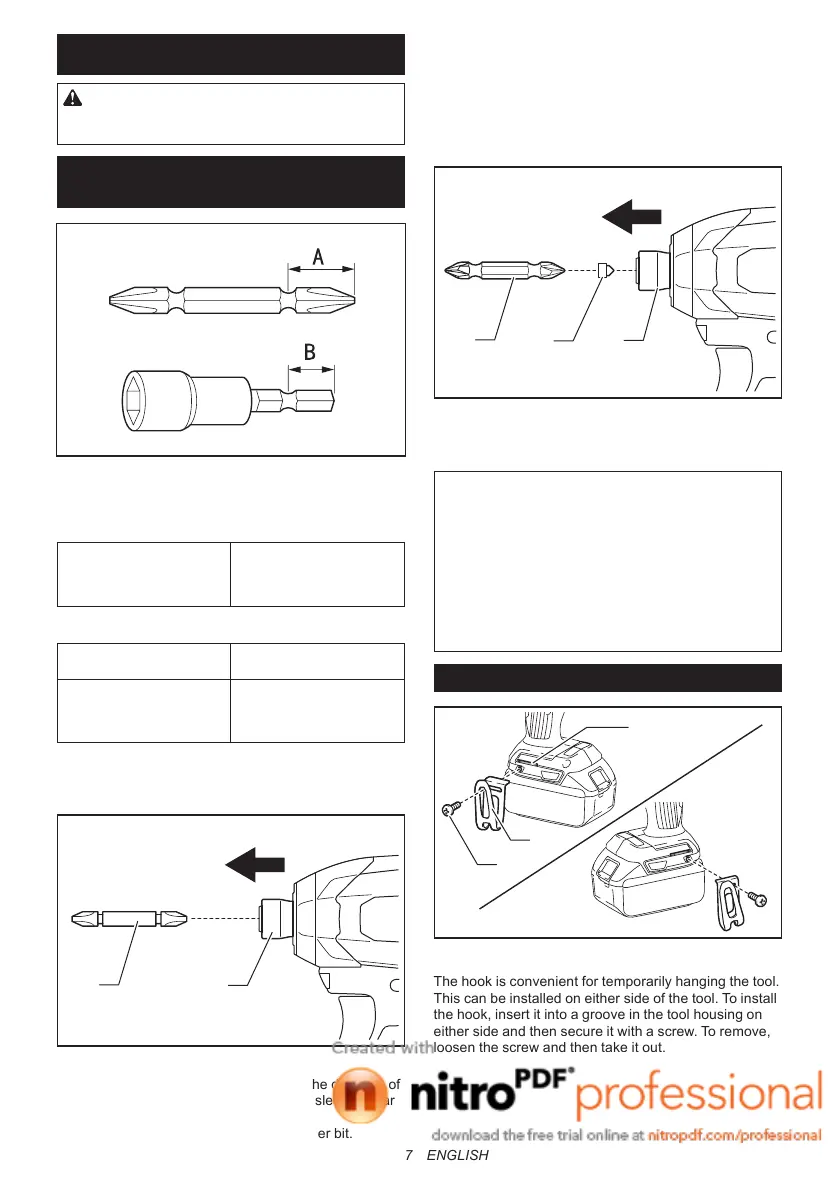

7 ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing driver bit/
socket bit
Useonlydriverbit/socketbitthathasinsertingportion
showninthegure.Donotuseanyotherdriverbit/
socket bit.
For tool with shallow driver bit hole
A=12mm
B=9mm
Useonlythesetypeofdriver
bit. Follow the procedure
1. (Note) Bit-piece is not
necessary.
For tool with deep driver bit hole
A=17mm
B=14mm
Toinstallthesetypesofdriver
bits, follow the procedure 1.
A=12mm
B=9mm
Toinstallthesetypesofdriver
bits, follow the procedure 2.
(Note) Bit-piece is necessary
for installing the bit.
Procedure 1
For tool without one-touch type sleeve
1
2
►1. Driver bit 2. Sleeve
Toinstallthedriverbit,pullthesleeveinthedirectionof
the arrow and insert the driver bit into the sleeve as far
as it will go.
Thenreleasethesleevetosecurethedriverbit.
For tool with one-touch type sleeve
Toinstallthedriverbit,insertthedriverbitintothe
sleeve as far as it will go.
Procedure 2
In addition to Procedure 1, insert the bit-piece into the
sleeve with its pointed end facing in.
1
3
2
►1. Driver bit 2. Bit-piece 3. Sleeve
Toremovethedriverbit,pullthesleeveinthedirection
of the arrow and pull the driver bit out.
NOTE: If the driver bit is not inserted deep enough
into the sleeve, the sleeve will not return to its original
position and the driver bit will not be secured. In this
case, try re-inserting the bit according to the instruc-
tions above.
NOTE:Whenitisdifculttoinsertthedriverbit,pull
the sleeve and insert it into the sleeve as far as it will
go.
NOTE:Afterinsertingthedriverbit,makesurethatit
isrmlysecured.Ifitcomesout,donotuseit.
Installing hook
1
3
2
►1. Groove 2. Hook 3. Screw
Thehookisconvenientfortemporarilyhangingthetool.
Thiscanbeinstalledoneithersideofthetool.Toinstall
the hook, insert it into a groove in the tool housing on
eithersideandthensecureitwithascrew.Toremove,
loosen the screw and then take it out.
