Makita EA3500F User Manual

18

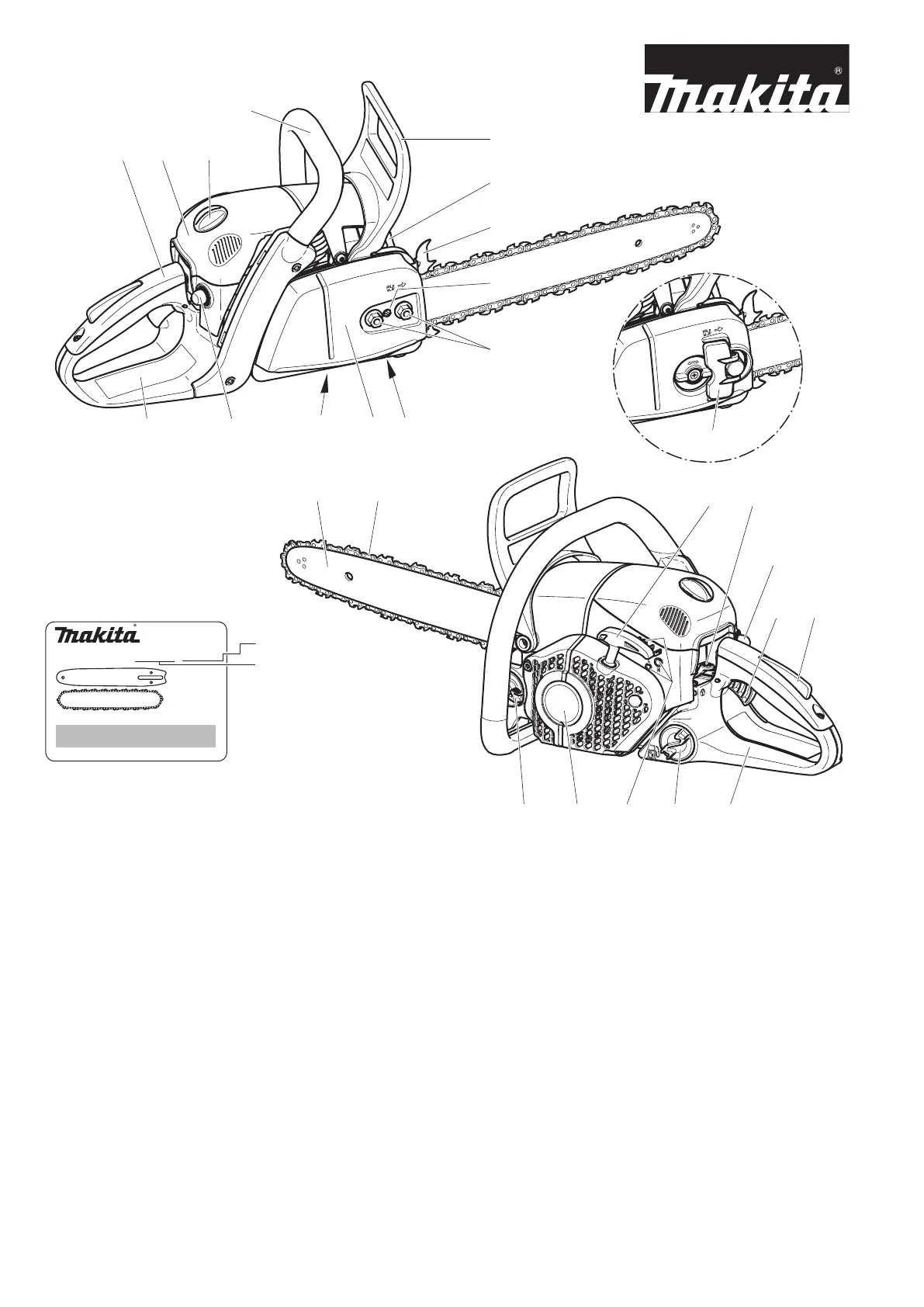

Denomination of components
Indicate when ordering spare parts!
Identication plate
Serial no.
Year of manufacture
1 Handle
2 Cover
3 Hood lock
4 Tubular handle
5 Hand guard (release for chain brake)
6 Mufer
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Fuel pump (Primer)
14 Identication plate
15
Starter grip
16 Combination switch (Choke / Start / Stop)
17 Fuel pump (Primer)
18 Throttle lever
19
Safety locking button
20 Rear hand guard
21 Fuel tank cap
22
Adjusting screws for carburetor
23 Fan housing with starting assembly
24 Oil tank cap
25 Chain
(Blade)
26 Guide bar
27 Sprocket guard quick tensioner
2
26 25
1615
18
17
19
3
4
1
6
7
5
8
9
1112
20212324
101314
27
22
EA3500F
16 inch (40 cm) 2012.11 012345
XXX.XXX.XXX Typ 194
Made in Germany
Makita Corporation, Anjo, Aichi, Japan
442.040.661
528.092.656
