4. Always be sure you have a firm footing.

Be sure no one is below when using the tool in

high locations.

5. Hold the tool firmly with both hands.

6. Keep hands away from rotating parts.

7. Do not leave the tool running. Operate the tool

only when hand-held.

8. Do not touch the bit or the workpiece

immediately after operation; they may be

extremely hot and could burn your skin.

9. Some material contains chemicals which may

be toxic. Take caution to prevent dust

inhalation and skin contact. Follow material

supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product

(gained from repeated use) replace strict adherence

to safety rules for the subject product. MISUSE or

failure to follow the safety rules stated in this

instruction manual may cause serious personal

injury.

USD202-2

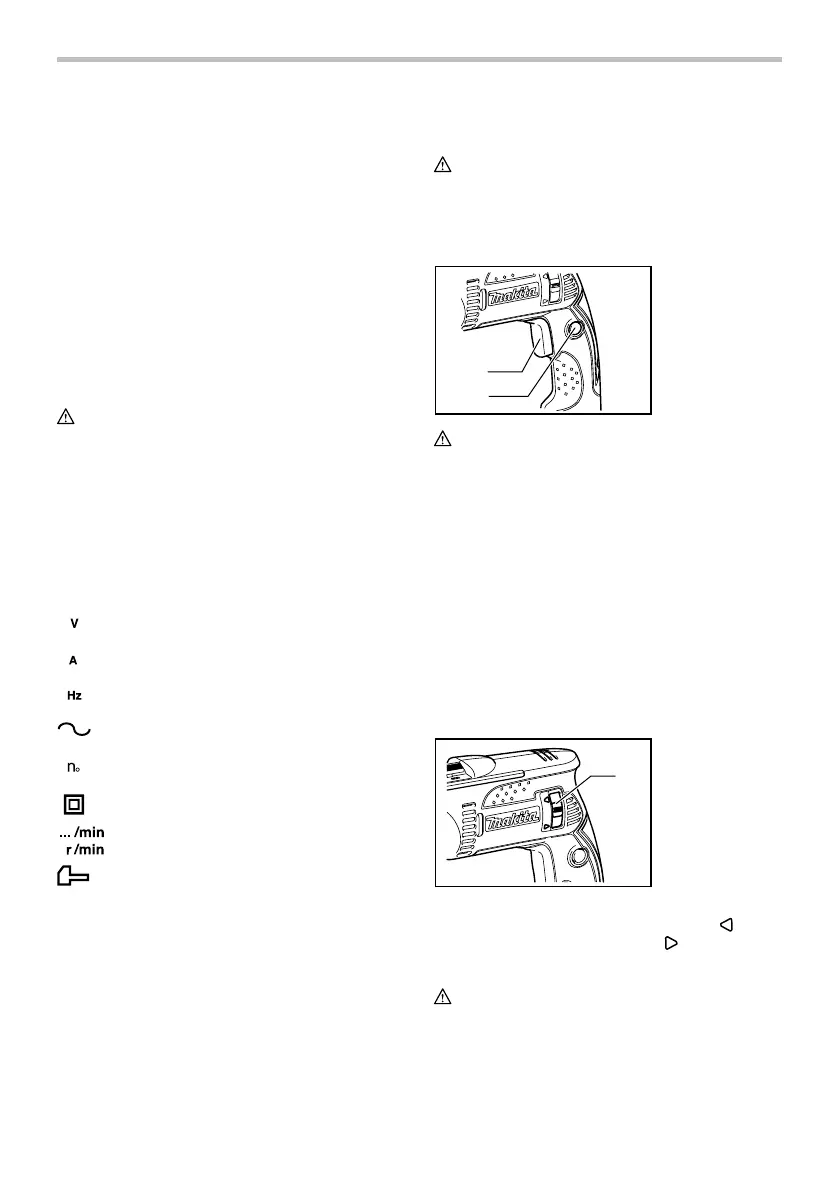

Symbols

The followings show the symbols used for tool.

･ volts

･ amperes

･ hertz

･ alternating current

･ no load speed

･ Class II Construction

･ revolutions or reciprocation per minute

･ number of blow

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on

the tool.

Switch action

009238

CAUTION:

• Before plugging in the tool, always check to see

that the switch trigger actuates properly and

returns to the "OFF" position when released.

• Switch can be locked in "ON" position for ease of

operator comfort during extended use. Apply

caution when locking tool in "ON" position and

maintain firm grasp on tool.

To start the tool, simply pull the switch trigger. Tool

speed is increased by increasing pressure on the switch

trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and

then push in the lock button.

To stop the tool from the locked position, pull the switch

trigger fully, then release it.

Reversing switch action

009239

This tool has a reversing switch to change the direction

of rotation. Move the reversing switch to the

position

(A side) for clockwise rotation or the

position (B side)

for counterclockwise rotation.

CAUTION:

• Always check the direction of rotation before

operation.

• Use the reversing switch only after the tool comes

to a complete stop. Changing the direction of

rotation before the tool stops may damage the tool.

1. Reversing

switch

1. Switch trigger

2. Lock button

Need help?

Do you have a question about the Makita HP1641 HP1641K and is the answer not in the manual?

Makita HP1641 HP1641K Specifications

General

Type	Hammer Drill
Voltage	240 V
Power	680 W
No Load Speed	0 - 2800 rpm
Drilling Capacity (Wood)	30 mm
Drilling Capacity (Steel)	13 mm
Drilling Capacity (Masonry)	16 mm
Input Wattage	680 W
Power Source	Corded Electric
Impact Rate	0-44800 bpm
Chuck Capacity	13 mm
Chuck Size	13mm
