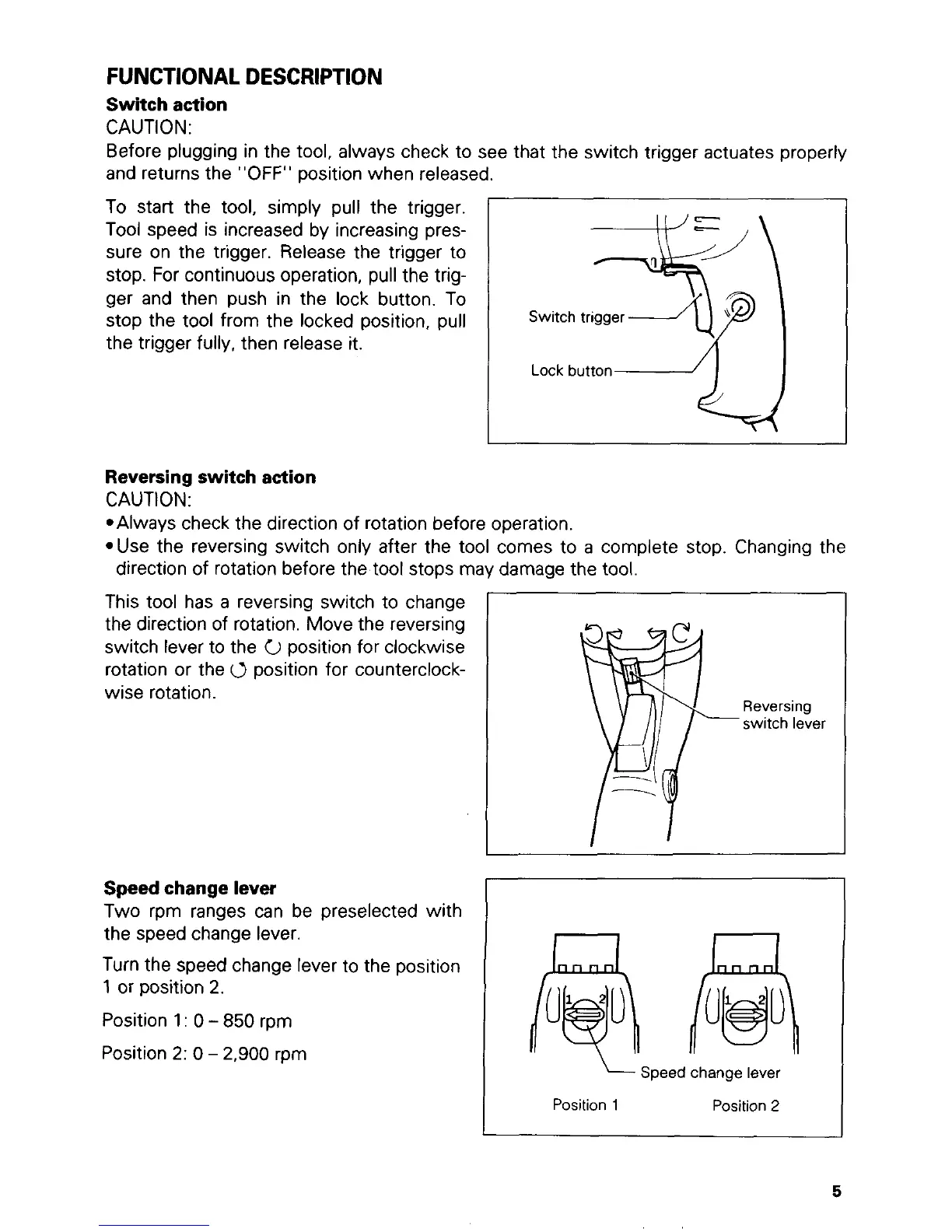

FUNCTIONAL
DESCRIPTION
Switch action
CAUTION
:
Before plugging in the tool, always check to see that the switch trigger actuates properly
and returns the
"OFF"
position when released.
To
start the tool, simply pull the trigger.
Tool
speed is increased by increasing pres-
sure on the trigger. Release the trigger to
stop.
For
continuous operation, pull the trig-
ger and then push in the lock button.
To
stop the tool from the locked position, pull
the trigger fully, then release it.
Switch trigger
A$@
\
Lock buttond
I
I
Reversing switch action
CAUTION:
*Always check the direction of rotation before operation.
*Use the reversing switch only after the tool comes to
a
complete stop. Changing the
This tool has a reversing switch to change
the direction
of
rotation. Move the reversing
switch lever to the
0
position for clockwise
rotation or the
0
position for counterclock-
wise rotation.
direction of rotation before the
tool
stops may damage the
tool.
Reversing
switch lever
Speed change lever
Two rpm ranges can be preselected with
the speed change lever.
Turn the speed change lever to the position
1
or position
2.
Position
1
:
0
-
850
rpm
Position
2:
0
-
2,900
rpm
Speed change lever
Position
1
Position
2
5
