5

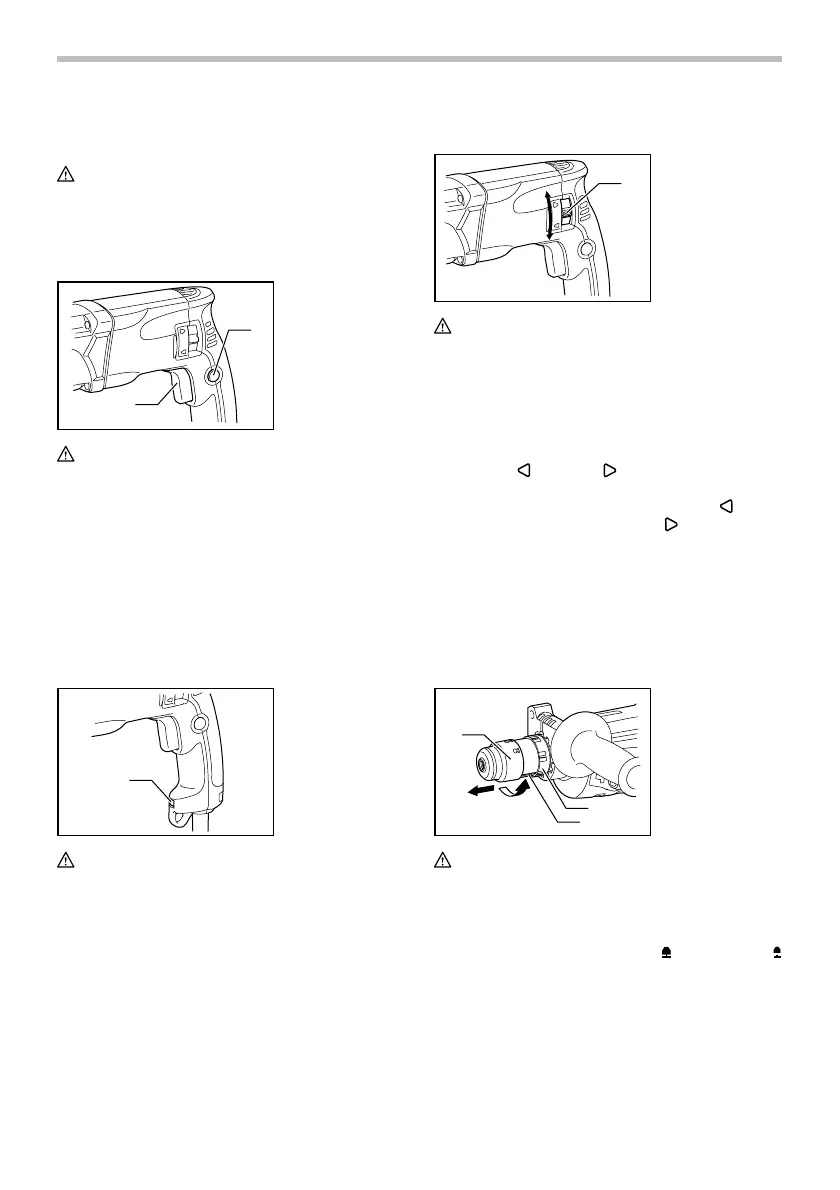

FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
2
007933
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool speed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop. For continuous
operation, pull the switch trigger and then push in the
lock button. To stop the tool from the locked position, pull
the switch trigger fully, then release it.
Lighting up the lamps
For Model HR2470F, 2470FT
1
007934
CAUTION:
• Do not look in the light or see the source of light
directly.
To turn on the lamp, pull the trigger. Release the trigger to
turn it off.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp.
Be careful not to scratch the lens of lamp, or it may
lower the illumination.
Reversing switch action
A
B
1
007935
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
• If the switch trigger can not be depressed, check to
see that the reversing switch is fully set to
position
(A side) or (B side).
This tool has a reversing switch to change the direction of
rotation. Move the reversing switch lever to the
position
(A side) for clockwise rotation or the
position (B side)
for counterclockwise rotation.
Changing the quick change chuck for
SDS-plus
For model HR2470T/HR2470FT
The quick change chuck for SDS-plus can be easily
exchanged for the quick change drill chuck.
Removing the quick change chuck for SDS-plus
1
2
3
007944
CAUTION:
• Before removing the quick change chuck for
SDS-plus, always remove the bit.
Grasp the change cover of the quick change chuck for
SDS-plus and turn in the direction of the arrow until the
change cover line moves from the
symbol to the
symbol. Pull forcefully in the direction of the arrow.
1. Quick change
chuck for
SDS-plus
2. Change cover
line
3. Change cover
1. Reversing switch
lever
1. Lamp
1. Switch trigger
2. Lock button
