9
BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE
SECURELY.
CAUTION:
• Make sure that the protrusion "a" on the inner
flange that is positioned outside fits into the
saw blade hole "a" perfectly. Mounting the blade
on the wrong side can result in the dangerous
vibration.
For tool with the inner flange for a 15.88 mm hole-
diameter saw blade (country specific)
12
3
4
5
011231
12
3
4
5
6
15.88
15.88
15.88
014598

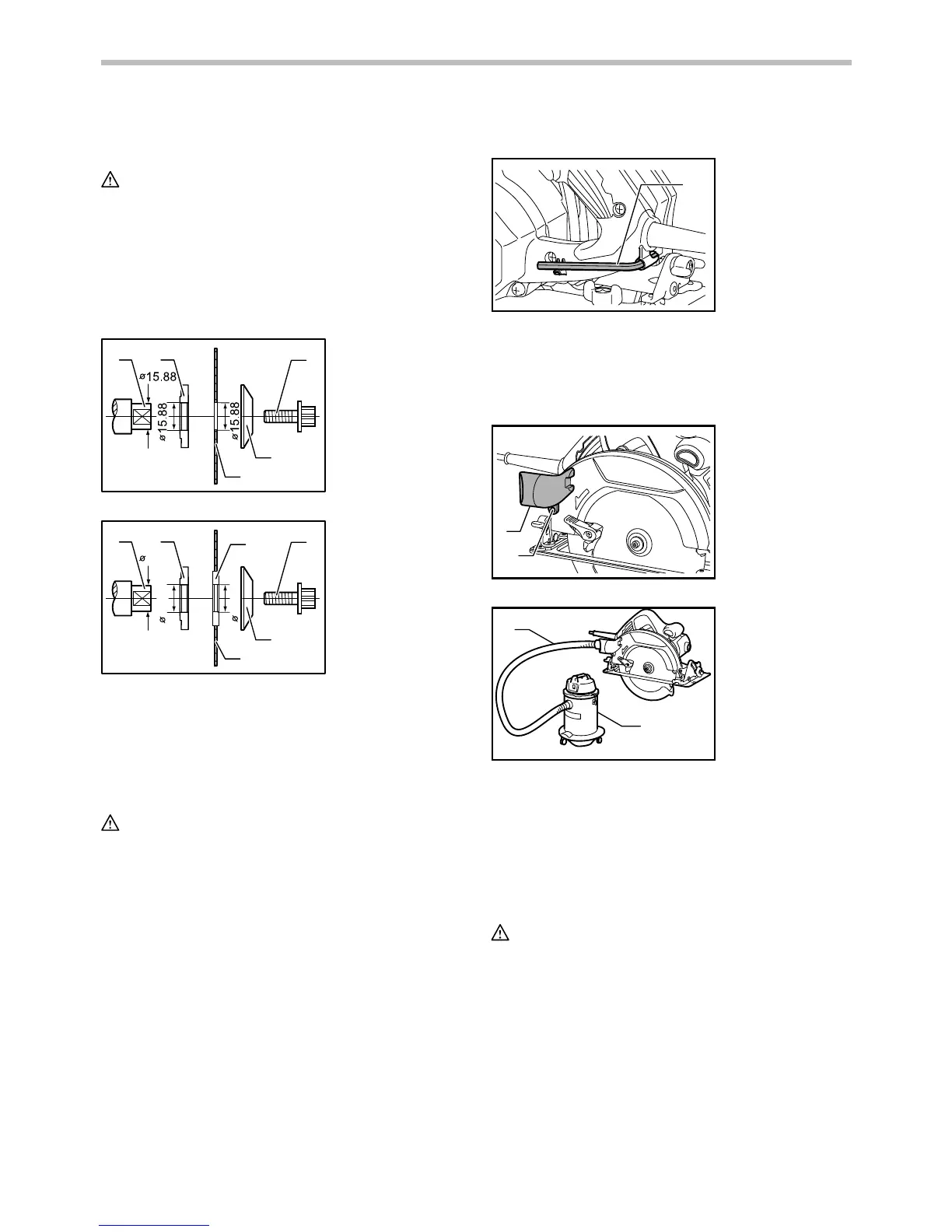

Mount the inner flange with its recessed side facing
outward onto the mounting shaft and then place saw
blade (with the ring attached if needed), outer flange
and hex bolt.
BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE
SECURELY.
WARNING:
• Before mounting the blade onto the spindle,
always be sure that the correct ring for the
blade's arbor hole you intend to use is
installed between the inner and the outer
flanges. Use of the incorrect arbor hole ring may
result in the improper mounting of the blade
causing blade movement and severe vibration
resulting in possible loss of control during
operation and in serious personal injury.
Hex wrench storage
1
015325
When not in use, store the hex wrench as shown in the
figure to keep it from being lost.
Connecting a vacuum cleaner
(Optional accessory)
1
2
015326
1
2
015327
When you wish to perform clean cutting operation,
connect a Makita vacuum cleaner to your tool. Install
the dust nozzle on the tool using the screw. Then
connect a hose of the vacuum cleaner to the dust
nozzle as shown in the figure.
OPERATION
CAUTION:
• Be sure to move the tool forward in a straight line
gently. Forcing or twisting the tool will result in
overheating the motor and dangerous kickback,
possibly causing severe injury.
• Always use a front grip and rear handle and firmly
hold the tool by both front grip and rear handle
during operations.
1. Vacuum cleaner
2. Hose
1. Dust nozzle
2. Screw
1. Hex wrench
1. Mounting shaft
2. Inner flange
3. Saw blade
4. Outer flange
5. Hex bolt
6. Ring
1. Mounting shaft
2. Inner flange
3. Saw blade
4. Outer flange
5. Hex bolt

Makita HS7601 Specifications

General

Product color	Black, Blue
Built-in light	-
Suitable for materials	Wood
Tool-free blade change	Yes
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Input power	1200 W
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Depth	309 mm
Width	232 mm
Height	255 mm
Weight	3800 g
