6
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

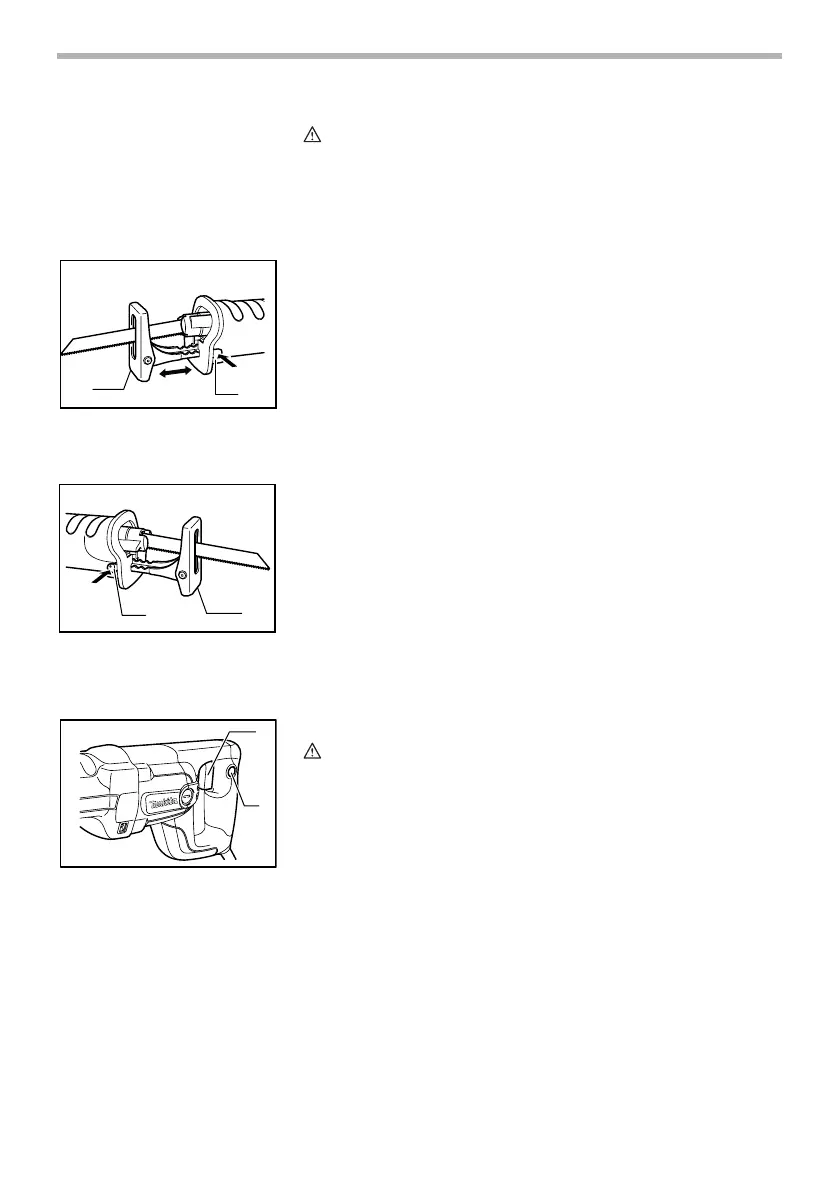

Adjusting the shoe
When the blade loses its cutting efficiency in one place along
its cutting edge, reposition the shoe to utilize a sharp, unused
portion of its cutting edge. This will help to lengthen the life of
the blade. To reposition the shoe, push the shoe button in the
“A” direction with a click and reposition as shown in the figure
which allows you to make five-way adjustment. To secure the
shoe, push the shoe button in the “B” direction with a click.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the “OFF”
position when released.
• Switch can be locked in “ON” position for ease of
operator comfort during extended use. Apply caution
when locking tool in “ON” position and maintain firm
grasp on tool.
To start the tool, simply pull the switch trigger. Tool speed is
increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
For continuous operation, pull the switch trigger and then
push in the lock button.
To stop the tool from the locked position, pull the switch trig-
ger fully, then release it.
1. Shoe
2. Shoe button
1. Shoe button
2. Shoe
1
2
A
005784
12
B
005785
1. Switch trigger
2. Lock button
1
2
005786
