Makita JR3060T User Manual

6

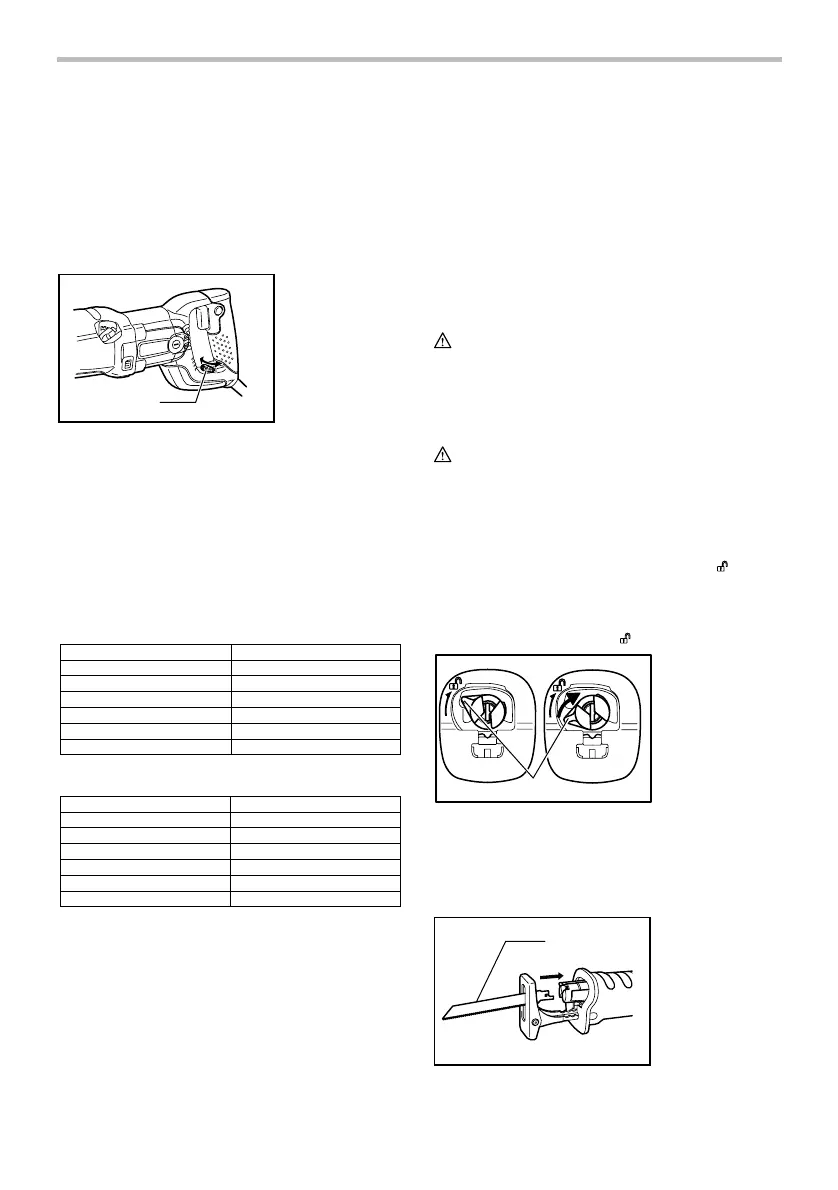

To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
Speed adjusting dial (For JR3070CT)
1
006025
The strokes per minute can be adjusted just by turning
the adjusting dial. This can be done even while the tool
is running. The dial is marked 1 (lowest speed) to 6 (full
speed). Turn the adjusting dial without positive stops
between 1 and 6 according to your work.
Refer to the table to select the proper speed for the
workpiece to be cut. However, the appropriate speed
may differ with the type or thickness of the workpiece. In
general, higher speeds will allow you to cut workpieces
faster but the service life of the blade will be reduced.
Number on adjusting dialStrokes per minute
6 2,800
5 2,500
4 1,850
3 1,400
2 1,000
1 950
006574
Number on adjusting dial
6
Autoclaved lightweight concrete 5 - 6
Mild steel 3 - 4
Aluminum 3 - 5
Plastics 1 - 4
Stainless steel 1 - 2
Workpiece to be cut
Wood
006584
NOTE:
• If the tool is operated continuously at low speeds
for a long period of time, the operation life of the
motor will be reduced.
• The speed adjusting dial can be turned only as far
as 6 and back to 1. Do not force it past 6 or 1, or
the speed adjusting function may no longer work.
The tools equipped with electronic function are easy to
operate because of the following features.
Constant speed control
Electronic speed control for obtaining constant speed.
Possible to get fine finish, because the rotating speed is
kept constant even under load condition.
Soft start feature
Safety and soft start because of suppressed starting
shock.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing or removing the saw blade
CAUTION:
• Always clean out all chips or foreign matter
adhering to the blade, blade clamp and/or slider.
Failure to do so may cause insufficient tightening
of the blade, resulting in a serious injury.
To install the saw blade, always make sure that the
blade clamp lever is in released position
on the
insulation cover before inserting the saw blade. If the
blade clamp lever is in fixed position, rotate the blade
clamp lever in the direction of the arrow so that it can be
locked at the released positon
.
2
1
3
005787
Insert the saw blade into the blade clamp as far as it will
go. The blade clamp lever rotates and the saw blade is
fixed. Make sure that the saw blade cannot be extracted
even though you try to pull it out.
1
005788
1. Blade
1. Blade clamp
sleeve
2. Released
position
3. Fixed position
1. Adjusting dial

Makita JR3060T Specifications

General

Type	Corded
Noise level	98 dB
Dimensions (WxDxH)	485 x 99 x 181 mm
Vibration emission	23.5 m/s²
Input power	1250 W
Power source	AC
Stroke length	32 mm
Cutting depth in wood	255 mm
Idle stroke rate (max)	2800 spm
Cutting depth in metal profiles/pipes	130 mm
Product color	Black, Blue

Weight and Dimensions

Depth	99 mm
Width	485 mm
Height	181 mm
Weight	4200 g
