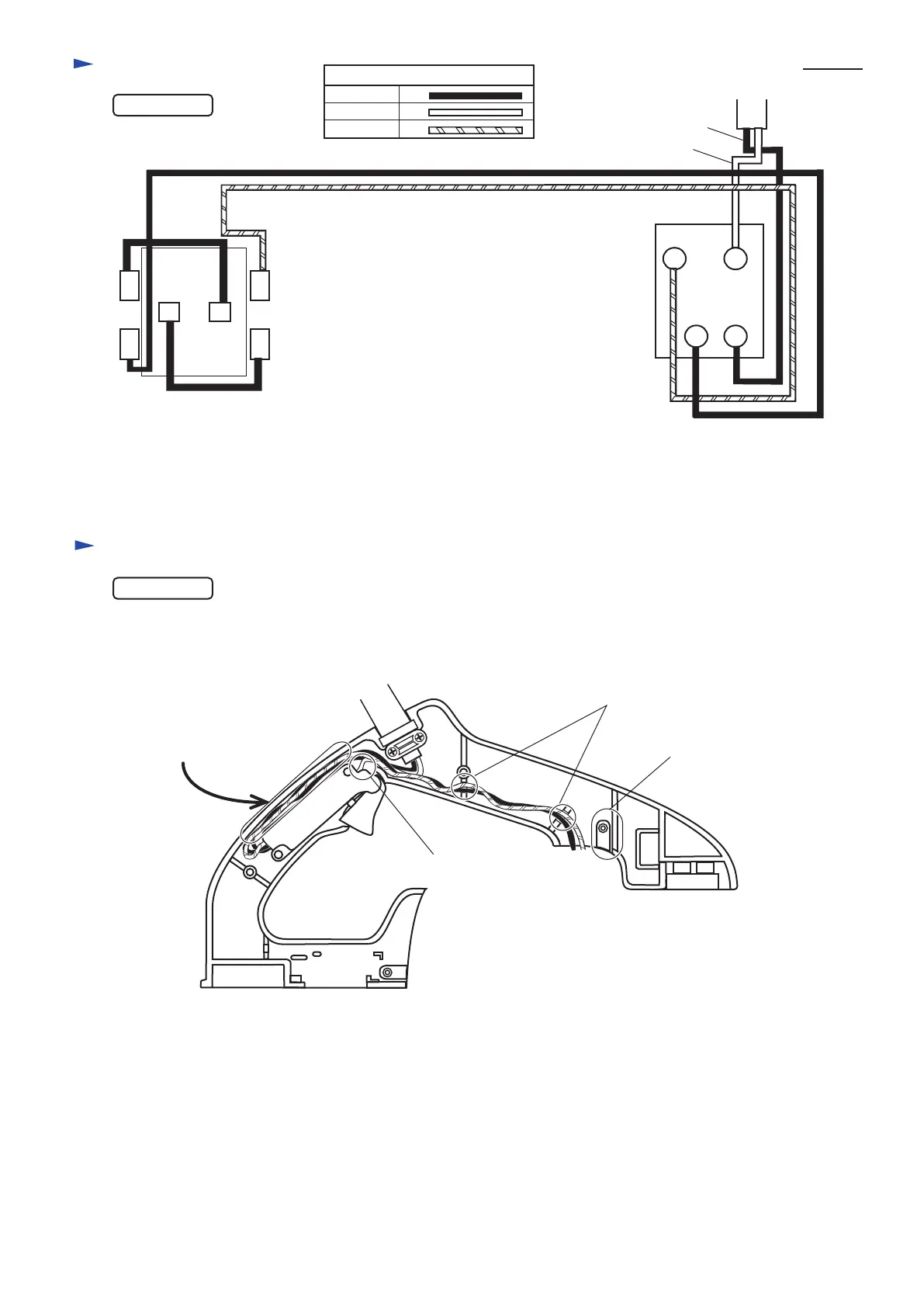

Circuit diagram
Wiring diagram
P 7 / 8
Color index of lead wires
Black
without soft start feature
and over current relay
White
Orange
2
4 5
3
White or blue
Black or brown
KP312
KP312
without soft start feature
and over current relay
Pass the following lead wires
back side of switch (opposite
side of switch trigger.)
* Power supply cord (black or brown)
* Support unit's lead wires
(black and orange)
Pass the power supply
cord (white or blue) through
the illustrated position.
Hold Support unit's lead wires (black and orange)
with lead holders as illustrated.
To avoid pinching, do not
pup any lead wires in this
area.
