2
ENGLISH (Original instructions)

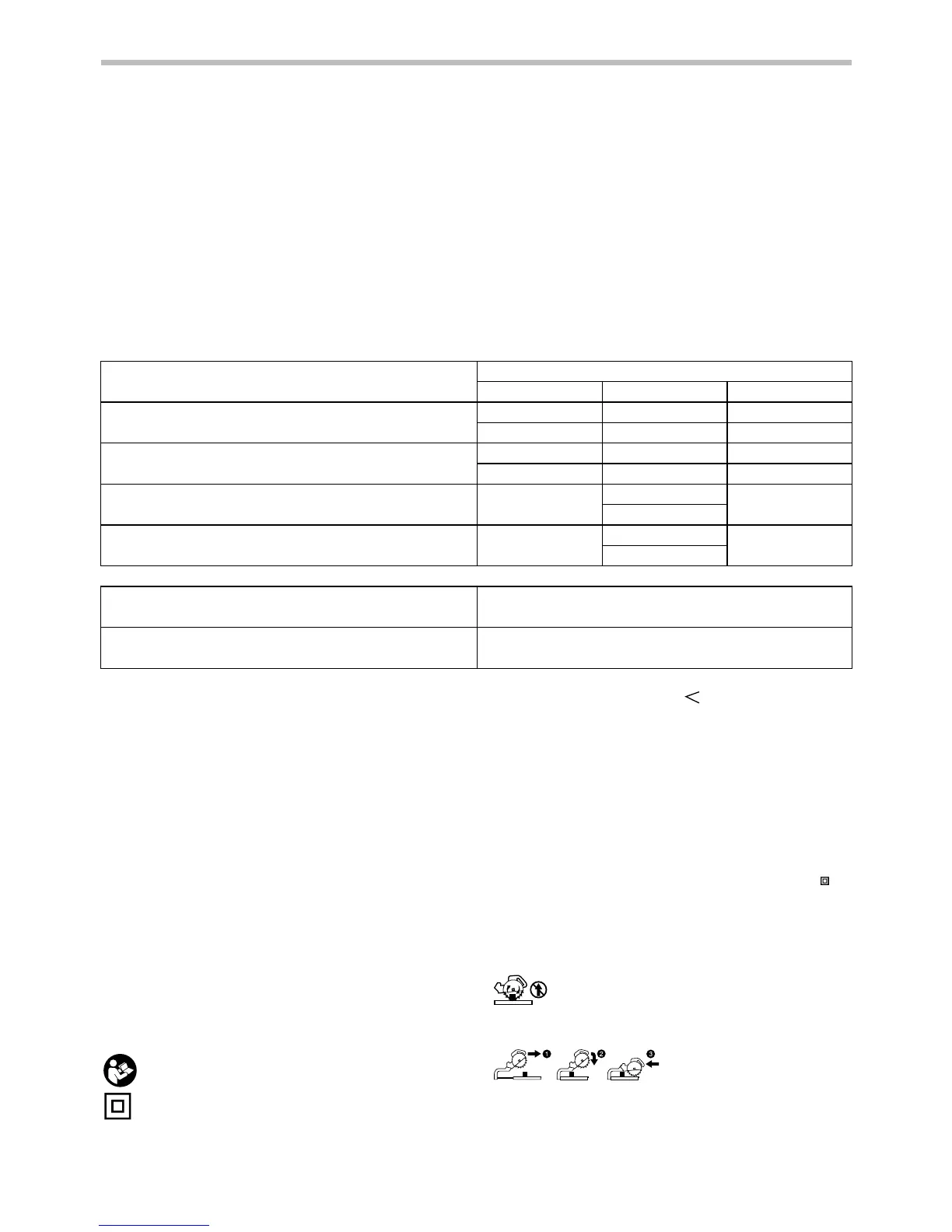

SPECIFICATIONS
Model LS1016/LS1016L/LS1016F/LS1016FL
Blade diameter
For all countries other than European countries 255 mm - 260 mm
For European countries 260 mm
Blade body thickness 1.6 mm - 2.4 mm
Hole diameter
For all countries other than European countries 25.4 mm
For European countries 30 mm
Max. Cutting capacities (H x W) with 260 mm in diameter
Bevel angle
Miter angle
45° (left) 0° 45° (right)
42 mm x 310 mm 68 mm x 310 mm 29 mm x 310 mm
0°
58mm x 279 mm 91 mm x 279 mm 43 mm x 279 mm
42 mm x 218 mm 68 mm x 218 mm 29 mm X 218 mm
45°(right and left)
58 mm x 197 mm 91 mm x 197 mm 43 mm x 197 mm
68 mm x 190 mm
52°(right and left) -
91 mm x 171 mm
-
68 mm x 155 mm
60°(right) -
91 mm x 139 mm
-
Special Max. Cutting capacities
Crown molding 45 ﾟ type
(with Crown molding stopper used)
168 mm
Base board (H)
(with Horizontal vise used)
120 mm
No load speed (min
-1
) 3,200
Laser Type (LS1016L, LS1016FL) Red Laser 650 nm, 1.6 mW (Laser Class 2M)
Dimensions (L x W x H) 718 mm x 640 mm x 671 mm
Net weight
For all countries other than European countries LS1016 …..23.6 kg
LS1016L/LS1016F …..23.7 kg
LS1016FL.….23.8 kg
For European countries LS1016 ….24.1 kg
LS1016L/LS1016F …..24.2 kg
LS1016FL.….24.3 kg
Safety class
/II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END210-8
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Read instruction manual.
･ DOUBLE INSULATION
･ To avoid injury from flying debris, keep
holding the saw head down, after
making cuts, until the blade has come to
a complete stop.
･
When performing slide cut, first pull
carriage fully and press down handle, then
push carriage toward the guide fence.
