27

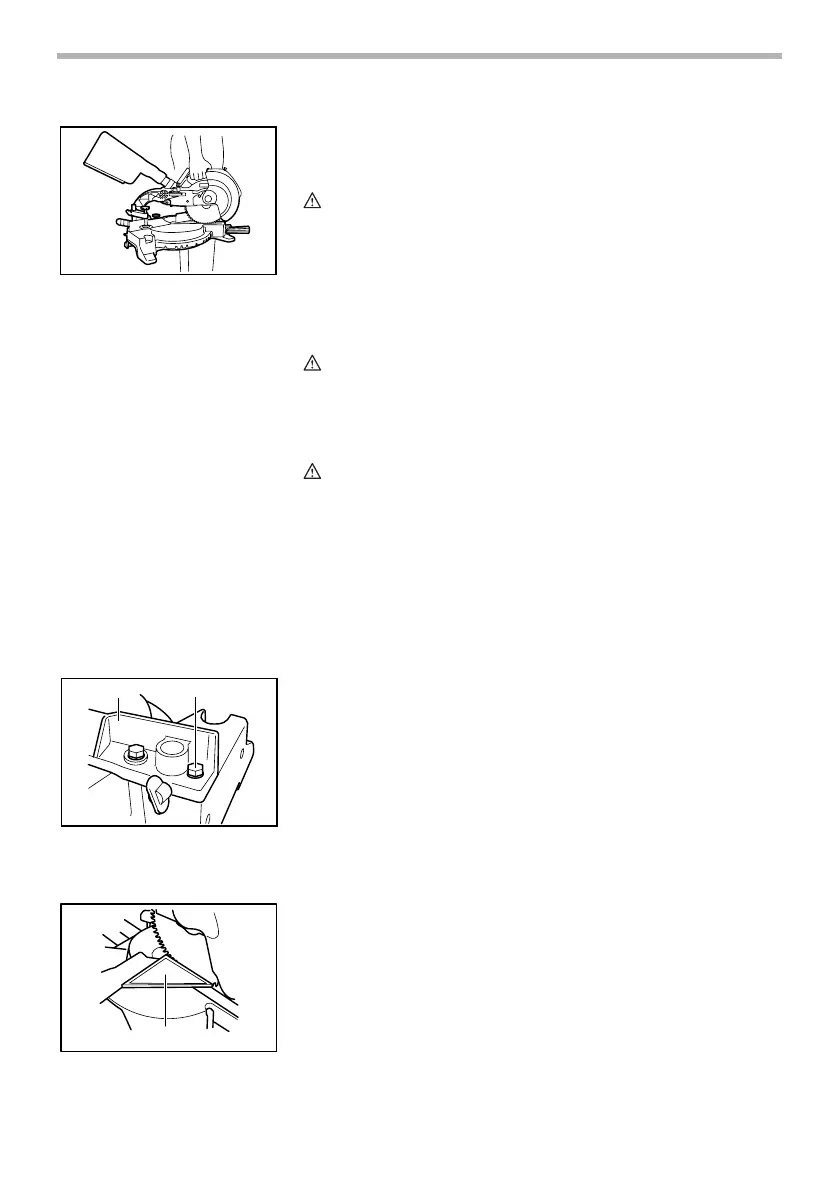

Carry the tool by carrying grip as shown in the figure. If you
remove the holders, dust bag, etc., you can carry the tool
more easily.
CAUTION:
• Always secure all moving portions before carrying the
tool.
• Stopper pin is for carrying and storage purposes only
and not for any cutting operations.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
WARNING:
• Always be sure that the blade is sharp and clean for the
best and safest performance.
Adjusting the cutting angle
This tool is carefully adjusted and aligned at the factory, but
rough handling may have affected the alignment. If your tool
is not aligned properly, perform the following:
1. Miter angle
Push the carriage toward the guide fence and tighten the
clamp screw on the turn base to secure the carriage.
Loosen the grip which secures the turn base. Turn the
turn base so that the pointer points to 0° on the miter
scale. Then turn the turn base slightly clockwise and
counterclockwise to seat the turn base in the 0° miter
notch. (Leave as it is if the pointer does not point to 0°.)
Loosen the hex bolts securing the guide fence using the
socket wrench.
Lower the handle fully and lock it in the lowered position
by pushing in the stopper pin. Square the side of the
blade with the face of the guide fence using a triangular
rule, try-square, etc. Then securely tighten the hex bolts
on the guide fence in the order from the right side.
002221
1. Guide fence
2. Hex bolt
12
002242
1. Triangular rule
1
002209
